| Prod Model: |
864526 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| 3.3t: |
12inches |
Product Description

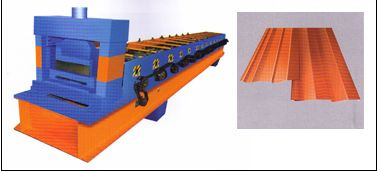

Profile Roll Forming Machine.
1. Weight 3.5T
2. Main power 5kw
3. Roll station According to your tile
FOB USD 14000~20000 / Set
Minimum Order Quantity: Negotiable Trial Order
Minimum Order Quantity: 1 Set/SetsTrial Order
Port: Shanghai
Packaging Details: Sea transportation packing
Delivery Time: 35-60days after receiving the pre-payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Set/Sets per Month
|
weight |
≈ 3.3T |
|
Material of stander |
No. 14 channel steel, fixed by screw rod |
|
Material of main shaft |
No. 45 round steel, with diameter 60 mm |
|
Material of roller |
No. 45 round steel, painting |
|
Driving method |
By chain, chain wheel |
|
Main engine |
BNED330 cycloid pinwheel reducer |
|
Main engin epower |
4 kw |
|
Roll station |
According to your tile |
|
Cutting method |
Plate cutting first, then froming |
|
Production speed |
0-15m/min |
|
thickness |
According to the customer’ s requirement |
|
decoiler |
1 set |
|
layout |
decoiling, feeding and leveling, roll forming, run out of table |
|
Application |
Roof panel, wall panel |
Established in 1991, we, zhangjiagang city quanlong equipment manufacture co, Ltd is engaged in the steel profile forming machine. Through almost 20 years of professional expertise and continuous efforts in research, development and product improvement, we manufacturer different kinds of sandwich panel machine and cold steel roll forming machines. Under our strict quality control, we meet the European CE mark and international standard ISO 9001.
By now, we are the major supplier of steel profile forming equipment to the China building material forming machine industries. We occupied 85% of domestic market and we export to more than 20 countries, such as America, Europe, Russia, south America, Saudi Arabic, Africa.
Based on our motto: "quality first, credit highest, service prompt, continuous innovation" we are making constant efforts to adopt new technologies, research and develop new products, apply advanced management technologies to strive for perfection of product quality.
Our main products are:
1. Sandwich panel production line(automatic and continuous production line)
2. Cold steel roll forming machine
3. Steel tiling forming machine
4. C type, z type, u type roll forming machine
5. Deck forming machine
6. Down pipe forming machine(for rain drainage)
7. H-beam auto-welding production line
8. K-span roll forming machine
9. ODM equipment of special specification.
