| Prod Model: |
CW-5200AG |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
1400W |
| Certi.: |
ISO9001:2008 |
| Chiller Manufaturing History: |
11 Years |
| Type: |
Water-Cooled |
| Certification: |
CE |
| Condition: |
New |
| Application Fields: |
Industrial Cooling |
| Application Machine: |
Industrial Cooling |
Product Description

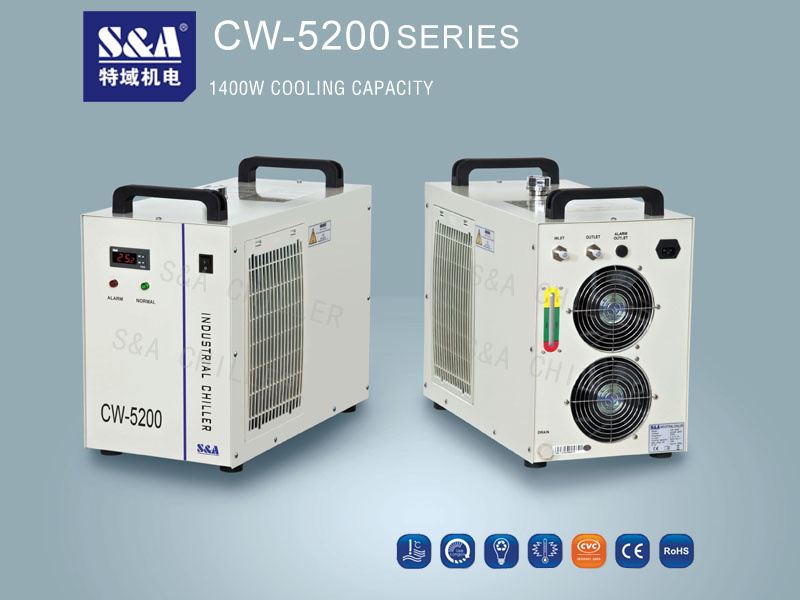

S&A CW-5200 series is high-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.
CW-5200AG is suitable to cool Magnetizing apparatuse.
Features:
1.1400W cooling capacity; Optional environmental refrigerant;
2. ± 0.3º C precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; With various setting and display functions;
4. Multiple alarm functions: Compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval;
6. Long working life and simple operation;
7. Optional heater and water filter.
[Main features]
1. Major components: International brand compressor; Water pumps of large flow and high pressure; Safety and environmental protection; Energy saving and durable.
2. Accessories: The greatest parts are S&A original equipment manufacture; Multiple configurations; Stable performance.
[After-sales service]
1. High-activity processing of purchase orders; Repliable packing; Timely delivery.
2. During period of using, we provide technical infomation, accessories supply, technical maintenance service support, etc.
3.12 months warranty, during warranty period, replacement parts are free of charge; Man-made damage is not included in the free reparing scope;
4. After the expiration of guarantee, we charge the replacement parts only at material procurement costs price.
5. Our after-sales service team is consisted of trained operating personnel and R&D staff, who have professional guiding experience and are able to solve problems efficiently.
6. Domestic toll-free hotline: 400-600-2093
Offer You A Choice Of Confidence!
| Model | CW-5200AG | CW-5200BG | CW-5200DG | CW-5200AH | CW-5200BH | CW-5200DH | CW-5200AI | CW-5200BI | CW-5200DI |
| Voltage | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V |
| Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz |
| Current | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A | 2.4~3.1A | 2.6~3.3A | 4.5~6.5A |
| Compressor power | 0.52KW | 0.5KW | 0.68KW | 0.52KW | 0.5KW | 0.68KW | 0.52KW | 0.5KW | 0.68KW |
| 0.71HP | 0.68HP | 0.93HP | 0.71HP | 0.68HP | 0.93HP | 0.71HP | 0.68HP | 0.93HP |
| Refrigerating capacity | 5084Btu/h | 4982Btu/h | 5186Btu/h | 5084Btu/h | 4982Btu/h | 5186Btu/h | 5084Btu/h | 4982Btu/h | 5186Btu/h |
| 1.49KW | 1.46KW | 1.56KW | 1.49KW | 1.46KW | 1.56KW | 1.49KW | 1.46KW | 1.56KW |
| 1281Kcal/h | 1256Kcal/h | 1307Kcal/h | 1281Kcal/h | 1256Kcal/h | 1307Kcal/h | 1281Kcal/h | 1256Kcal/h | 1307Kcal/h |
| Refrigerant | R-22 / R-134a / R-410a |
| Refrigerant charge | 360g | 380g | 350g | 360g | 380g | 350g | 360g | 380g | 350g |
| Precision | ±0.3 celcius |
| Reducer | Capillary |
| Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm |
| Pump power | 0.03KW | 0.051KW | 0.1KW |
| Tank capacity | 6L |
| Inlet and outlet | External Φ10mm brass connector |
| Max. lift | 10 M | 12 M | 25 M |
| Max. flow | 10 L/min | 13L/min | 16 L/min |
| N.W | 30 Kgs |
| G.W | 35 Kgs |
| Dimension | 55 X 28 X 43 cm (L x W x H) |
| Package dimension | 72 X 44 X 62 cm (L x W x H) |
