Water Fuel Cell Generator Cutting

Prod Model:	kingkar5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Kingkar5000
Input Power:	3 Phase 380 V (50-60) Hz±10%
Working Current(a):	300
Environment Temperature:	0-40
Water Consumption(L/H):	2.7
Flame Temperature:	800-3200 Adjustable
Way To Work:	Continuous
Appearance Size(L*W*H)Mm:	1150*850*1680
Max.Relative Humidity(%):	90
Max.Gas Output(Lph):	5000
Application:	Machinery & Hardware
Type For Cutting Machine:	CNC Cutting Machine
Automation:	Automatic
Type:	Cutting Machines for Sale
Type For Fold-bending Machine:	Cutting Machines for Sale
Type For Pipe And Tube Bending Machine:	Cutting Machines for Sale

Product Description

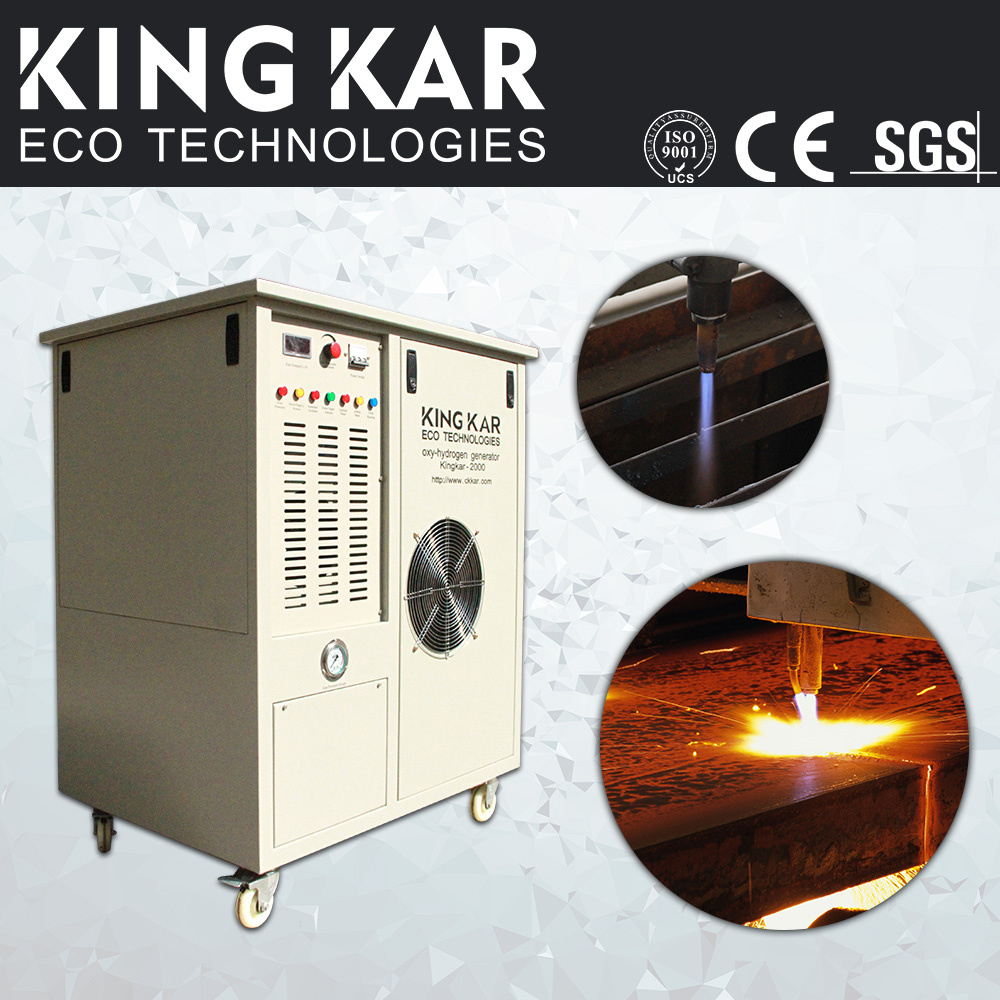

What is Oxyhydrogen Generator/ oxy-hydrogen cutting machine:

Oxyhydrogen Generator/ oxy-hydrogen cutting machine consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. Oxyhydrogen Generator/oxy-hydrogen cutting machine is used for welding, cutting, polishing, brazing, glass processing and jewelry processing. Also can burst with other fuel together for heating.

Multi-functions application of Oxyhydrogen Generator/Carbon Steel Cutting Machine:

1. Carbon Steel Cutting of machine building industry, shipyard, steel structure processing plant.

2. Continuous casting slab cutting of Steel Plant.

3. Cooperate with manual cutting torch, semi-automatic cutting machine, shape cutting machine, CNC cutting machine to instead of traditional fuel gas.

Features of Kingkar oxy-hydrogen cutting machine compared with acetylene propane etc. Gas fuel:

1. Oxyhydrogen gas flame is concentrated. Preheating time is short in the same energy condition.
2. The heat affected zone of oxy-hydrogen flame is small.
3. Oxyhydrogen Cutting is barely have hang slag, cutting section have a good vertical.
4. Oxyhydrogen cutting has no pollution, no black gas, it is environment friendly and not harm for people's body.

Technical Data Sheet

Cost Comparison between Oxy-hydrogen Cutting and Acetylene and Propane cutting
Test tool: stopwatch,mass flow meter, three-phase watt-hour meter, straight line cutting machine Test steel plate: 1m long, 60mm thick steel plate Test method: take the average of ten times test General data: Propane: $1.39/kg Acetylene: $3.15/kg Oxygen: $2.5/bottle=$0.41/m3 Electricity price: $0.13/degree
Comparison Terms	Acetylene	Propane	Oxy-hydrogen gas
Cutting time	3 mins and 55s	4 mins and 30s	4 mins
Oxygen consumption	180L	250L	151.7L
Fuel gas consumption	0.061kg	0.06kg	0.45 degree electricity
Oxygen cost	$0.071	$0.11	$0.061
Fuel gas cost	$0.2	$0.081	$0.06
Total cost	$0.271	$0.191	$0.121

Model	Kingkar-3000	Kingkar-5000	Kingkar-7000	Kingkar-10000
Voltage(V)	380  ±10%,50/60Hz,three phase
Rated capacity(KVA)	9	15	22	31
Working pressure(Mpa)	≤0.2
Relative humidity(%)	≤90
Rated gas output(L/H)	3000±10%	5000±10%	7000±10%	10000±10%
Water consumption(L/H)	1.6	2.7	3.8	5.8
Maximum Cutting Thickness(mm)	110	220	310	420
Effective perforated thickness(mm)	40	60	70	90
Cooling way	Air cooling
Insulation class	F
power protection grade	IP2S
Flame temperature(T)	800-3200 adjustable
Working medium	Filtered water or deionized water or soft water
Working	continuous
environment temperature(T)	0-40
Dimension(L×W×H)mm	1020*770*1270	1250*830*1720	1300*930*1820	1500*930*1940
Weight(KG)	293	567	653	894
