| Prod Model: |
AB-550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Esfr |
| Material: |
Zinc Alloy |
| Surface Preparation: |
Deburring |
Product Description

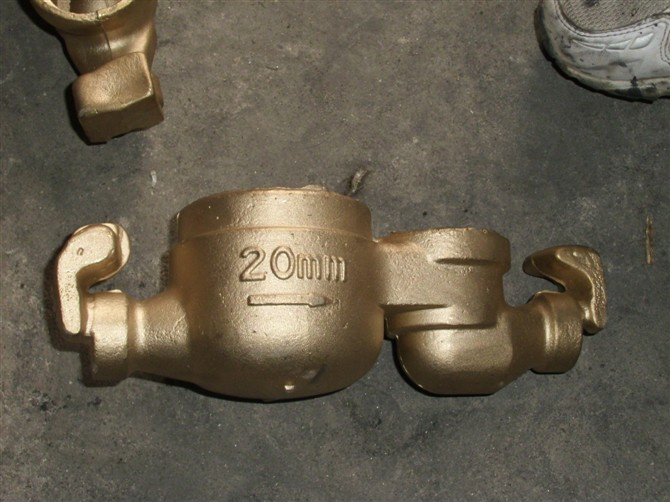

AB550 Gravity Die Casting Machine for water meter
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold 500mm
Maximum Weight of Mold 150kg
Maximum distance of mold base plate 510mm
Maximum clamping stroke 270mm
Angle range of measured-cast 0° -90°
Angle range of mold immersion 0° -110°
Angle range of mold immersion 0° -90°
Oil Pressure 50-70bar
Power capacity 3.75+0.75+0.75W
Three phase power 380V/50Hz(per customers requirement)
Oil tank capacity 220L
Volume of mold immersion tank 375L+375L
Net weight of the Equipment 2000kg
Maximum dimension of the equipment 1650*2300*1720mm
Specifications
1)Passed ISO9001: 2000
2)Competitive Price
3)Top Product Quality
4)Prompt Delivery
D & S Trading Co., Ltd. Establish with 5 years experience, main product is faucet, sanitaryware, shower mixer, shower sets, bathroom accessories, kitchen tap, bathroom fittings. Agle valve, bibcock, etc. Reasonable price with good quality and full service. Welcome for visiting factory and cooperation together.
