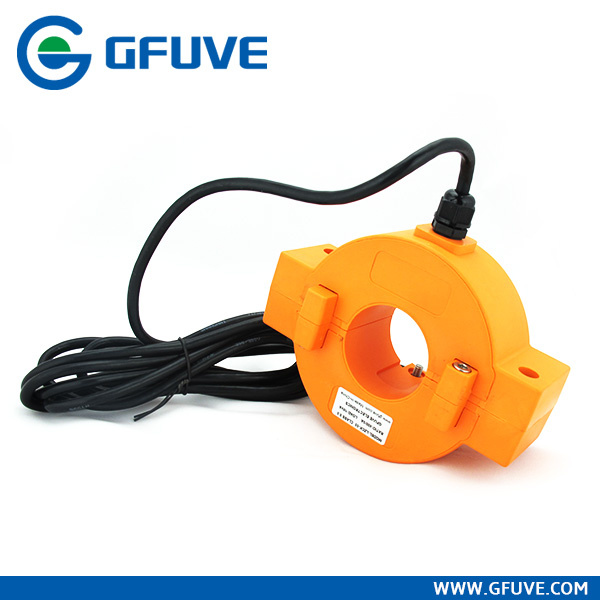

Waterproof Outdoors Split Core CT Current Transformer

Prod Model:	LMCK185-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.5% or 1%
Ratio:	100/5A,200/5A, 400/5A, 800/5A, 1200/5A
Second Current:	1A or 5A
Standards:	IEC 60044-1;Ntc 2205
Fs:	Less Than 5
Weigt:	4.5kg
Size:	350mm*283mm*55mm
Aperture:	185mm
Production Process:	Injection+ABS
Material:	ABS or PC
Application:	Power, Electronic, Instrument

Product Description

LZCK-55 Waterproof Outdoors Split Core Current Transformer

Theory

Split core current transformers are high accuracy class electrical devices used to isolate or transform voltage or current levels. The most common usage of current transformers is to operate instruments or metering from high voltage or high current circuits, safely isolating secondary control circuitry from the high voltages or currents. The primary winding of the transformer is connected to the high voltage or high current circuit, and the meter or relay is connected to the secondary circuit. Installation With electricity, suite for power monitor, energy loss etc.

Split core current transformers may also be used as an isolation instrument transformer so that secondary quantities may be used in phase shifting without affecting other primary connected devices.

Application

LZCK waterproof Outdoors Split Core Current Transformer applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.


Features

New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.

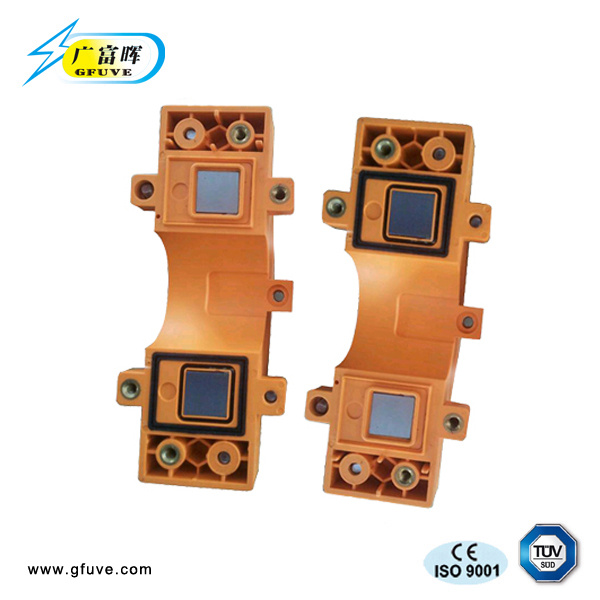

The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly.
The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.

Working conditions:
Ambient temperature: -35~+55.
Environment: Outdoors or indoors
The Height of above sea level: 0~ 3000m.
Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.
(continuous working under the rated current is allowed)
(P2 represents for primary polar end, S1, S2 represent for secondary polar end
P2 and S2 are subtractive polarity.
Technical parameters: :
Rated frequency: : 50Hz or 60Hz
Rated secondary current: 5A or 1A
Secondary winding power frequency withstand voltage: 3kV, 1min
Safety Factor Rating (FS) < 5
Standard of Application: GB1208-2006; IEC 60044-1; NTC 2205
Accuracy Class: 0.5 or 1;
Flame retardant ABS plastic shell or PC inside the filling, jaw waterproof apron.

Item Name	Range of primary rated current	Range of Rated load	Aperture (mm)	Description (mm)	(Weight) (kg)
LZCK-55	100-1500A	≤10VA	Φ55	180×138×52	2
LMCK185-10	300-3000A	≤10VA	Φ185	350×283×55	4.5
