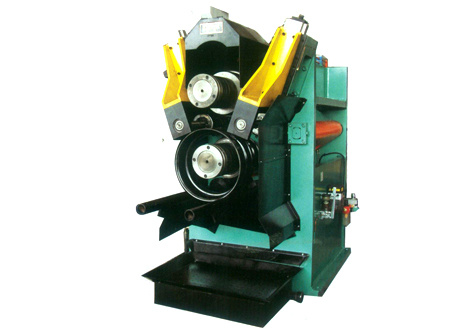

Wheel Rim Making Machine, Wheel Rim Forming Machine (GXJ-013)

Wheel Rim Making Machine, Wheel Rim Forming Machine (GXJ-013)
Price: US $ 90000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: GXJ-013
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Big size wheel rim rolling machine , rolling steel wheel rims for max. 24".

Description of Big size wheel rim rolling machine

This machine is specially designed for rolling steel wheel rims.

This machine is hydraulic driven, stable working.

This machine is PLC control, touch screen operation, simple and convenient.

The main spindle is made of special forged alloy, high fatigue strength.

The main spindle can be 3D adjusted, i.e., up & down, front & back, and incline, controlled by PLC.

Hydraulic tank is equipped with cooling system suitable for hot ambient condition.

Main technical data of Big size wheel rim rolling machine

1) Suitable wheel rim outer diameter: 17.5~24"

2) Suitable wheel rim width: 7.5~15"

3) Max. spindle die outer diameter: 197mm

4) Max. spindle die length: 600mm

5) Number of rolling wheels: 2

6) Number of guiding wheels: 2

7) Side guiding shaft diameter: φ90 mm

8) Side guiding stroke: 200mm

9) Main spindle speed: 50~450 rpm

10) Adjustable angle of inclination of both main spindles: 0~1.5º

11) Axial adjustment of the bottom main spindle: ±2 mm

12) Torque of main spindle: 11050N·M

13) Bottom spindle raising strength: 30T

14) Bottom spindle raising speed: less than 100mm/s

15) Main driving motor power: 121kW

16) Main spindle driving method: hydraulic flexible drive

17) Guiding wheel driving method: pneumatic flexible drive

18) Lubricating: compulsive central lubrication

19) Outline dimension: 2000 x 2600 x 2400mm

20) Weight: about 18000kg

Main configuration of Big size wheel rim rolling machine

1) PLC: FATEK from Taiwan

2) Touch screen: Delta from Taiwan

3) Buttons: Schneider brand

4) Hydraulic pump: DENISON from USA

5) Lubricating pump: BIJUR from USA

6) Sensors: from Japan

7) Hydraulic valves: best brand from China



We, Nantong Zhenhuan Trade Co., Ltd., are specialized in different kind of machines for more than 9 years. We can provide you not only good quality wheel rim related machines but also good after-sale services.

Kindly please contact us to get more services and more information of

Big size wheel rim rolling machine.

Name: Eva Li

Mobile: 0086 139 6299 6706

Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
