| Prod Model: |
ZHL-550A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

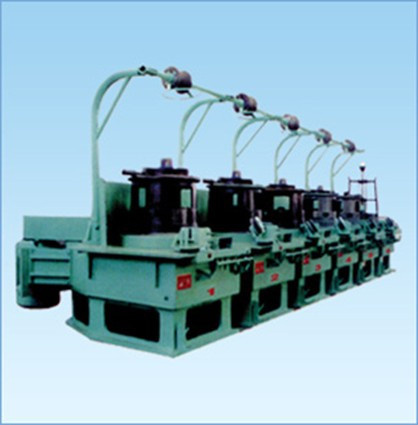

Wire drawing machine, be suitable for drawing Many kinds of metal materials and a variety of specifications, such as High, medium and low carbon steel and copper, aluminum, etc, its the requirements for the manufacturers which produce Wire, cable, nail, steel wire. The machine Use gear drive, electric control, safe operation, low noise, high efficiency advantages
All kinds of Windlass wire drawing machine, In order to save labor, improve efficiency, Can form 2-8 table slide wheel group drawing machine, also Can match speed regulating motor.
Technical parameters
Quintuplet tank Four league tank Triple tank Duplex tank
Coiling block diameter (mm) 550-600 550-600 550-600 550-600
Maximum
Inlet wire(mm) 4 6.5 6.5 6.5
Minimum outlet
(mm) 1.8 3.2 1.2 5
Line speed
(m/min) 216 120-160 120-160 120-160
Motor power
(KW) 39 53.5 42.5 31.5
Method of lubrication powder
Handan Zhilin Welding Material Production Equipment Co., Ltd. Which located in a historic city-handan, China is established in 1993. It is a manufacturer and exporter company of welding electrodes, welding electrodes produce equipment, raw material of welding and so on. Our products have a good market at home and abroad, After several decades, development, the total amount is up to more than 350 varieties and the annual output has already exceeded 20000 tons. All kinds of welding electrodes, welding stick, welding electrodes produce equipments and raw material for welding are included in our products, among them, welding electrodes and welding wire are widely used in bridge, ship-building, pressure vessel producing, car making, spaceflight, sea drilling platform, port construction and so on. Our products are available both in domestic and overseas, such as USA, Russia, Iran, India, Pakistan, Syria, Saudi Arabia, Nigeria, Kazakhstan, Uzbek, Kenya, Azerbaijan, etc. Our products have got a good reputation both at home and abroad.
