| Prod Model: |
WP-168 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: |
Plastic+Brass |
| Impeller: |
Brass |
| Mechanical Seal: |
Carbon/Ceramic/Stainless Steel |
| Motor Housing: |
Aluminum |
| Inlet: |
25mm |
| Outlet: |
25mm |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Application: |
Clarified Water Pump |
| Theory: |
Vortex Pump |
| Material: |
Plastic+Brass |
| Type: |
Clean Water Pump |
| Industry: |
Clean Water Pump |
| Media: |
Clean Water |
Product Description

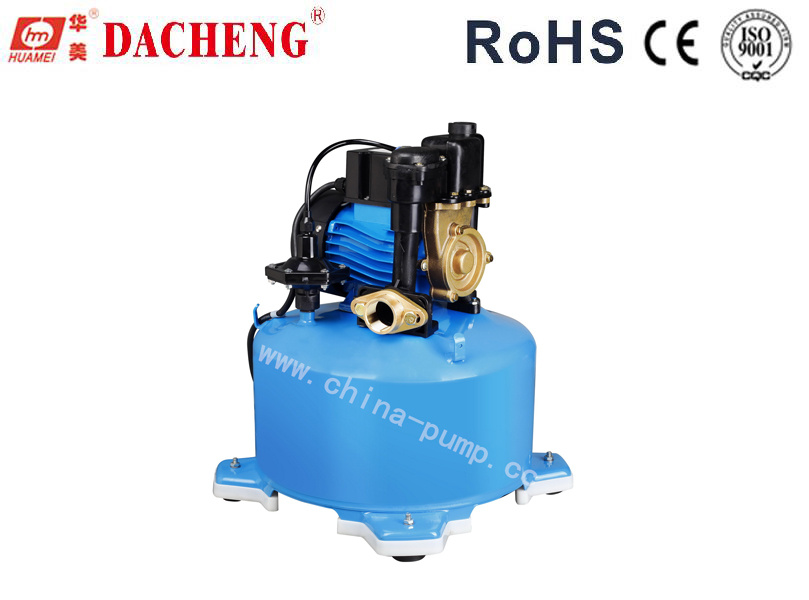

WP series water pump is our new product, innovating as below:
1.The automatic booster pump use the rounded and big pressure tank, with two feature as below: one is store up much more water, the other is protect motor and pressure switch by reduce pressure switch start frequently, make the pump use life reach 5years, normal pump use life is 1-2 years.
2.The pump body include two parts,upside is plastic material, not only reduce the weight but also anti-rust,below is copper casting, compare to traditional cast iron,not easy to rust, avoid impeller jammed and machine burned.
3.The key characteristic of the pump is with air compensator. Because inside of pressure tank with air, air is compressed when biggest pressure, pressure is released slowly when fraw off the water, then protect the pressure switch and the water pump. However, the inside air will follow the water ran off to the outside slowly during pump working, so need supplement the air inside going through air compensator at any time.
OPERATING CONDITION
1. Liquid temperature up to 60
2. Ambient temper up to 40
3. Total suction lift to 9m
4. Continuous duty
TECHNICAL DATA(220-240V/50Hz)
Model No.: WP-168D1
Power: 0.15KW
H. MAX: 23M
Q. MAX: 33L/min
SUCT. MAX: 9M
DNA: 1"
DNM: 1"
Model No.: WP-168D2
Power: 0.25KW
H. MAX: 26M
Q. MAX: 35L/min
SUCT. MAX: 9M
DNA: 1"
DNM: 1"
Fujian Dacheng Electric Group Co., Ltd. is located in Fuan city, Fujian province. Which founded in 1999, have 330 staffs.
Having 8 highly developed automatic assembling lines, experienced and professional engineering team, our monthly capacity of pump is 80, 000 PCS, motor and generator 10, 000PCS. We are a professional manufacturer dedicated to design and manufacture best quality, reliability micro-pump, motors and generators, to exceed the expectation from customers. Company pay attention to product quality, research and development, own provincial technical center.
Passing ISO9001: 2008 quality management system certification, our products obtained certificates from CE, SGS, RoHS, BV etc., also won 13 national patent, Y, YC, ST, STC series products have been gained quality license of export products. Exporting to Europe, South America, Middle East, Southeast Asia more than 30 countries and regions.
