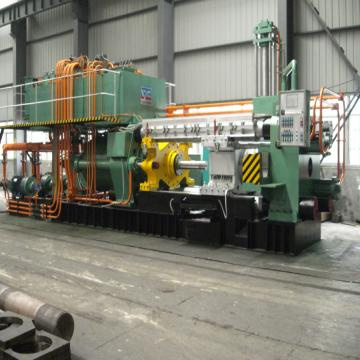

XJ-3000 Aluminium Extrusion Press

XJ-3000 Aluminium Extrusion Press
Price: Negotiable
Min Order: 1
Prod Model: XJ-3000

Product Description

21 MP

Place of Origin China

Brand Name YC

Model Number XJ-3000

Payment & Shipping Terms:

Delivery Time: 3-4months

Payment Terms: T/T

Hydraulic pressure


21MPa


force


Main arm::2785T


Faster cylinder:258T


Cylinder back force


152T


Container retaining force


171T


Shear force


130T


Extrusion speed


0~15mm/s


Quick feed rate of extruder


230mm/s


Quick return rate of extruder


235mm/s


Closing rate of extruding cylinder


230mm/s


Opening rate of extruding cylinder


125mm/s


Perforating forward rate


185mm/s


Perforating backward rate


260mm/s


Container size


Inside diameter: Φ280mm

 length:1000mm


Billet size


diameter:Φ270mm

 length:400~900mm


Dimension of front beam product hole


420×350cinquefoil


Total motor power


≈400KW


Heating power of extruding cylinder


3KW×24=72KW


Operation mode


Manual or single-travel automatic mode


Outer dimensionsL×W×H


14×4.5×5m

Wuxi Yuanchang Machinery Manufactury Co., Ltd was founded in 1995 which is specially engaged in manulacturmg various non-ferrous metals pressure equipment. At present, it has produced series products with more than 30 specification in 3 major species from 300 tons to 3000 tons, which applied for aluminum, cooper, or magnesium processing industries and our products are used by a great many ferrous enterprise as well as scientific research institutes, colleges, universities and foreign clients. Now the products are distributed throughout the country and are exported abroad, such as USA, Argentina, Australia, Turkey, Uzbekistan, Russia, Lebanon, Syria, India, Kenya etc. The company is the domestic professional apotheosis and business pioneer of the extruder manufacturing line.

The company is one of the earlier established private limited enterprise in Jiangsu province. It has a floor space of over 30, 000m and strong machining capability, including a variety of production equipments, such as large-sized floor mounting boring machine, large-sized floor mounting lathe, double housing planer, vertical lathe, 8m extension lathe, etc. Varieties of extruding equipments and extruding production lines are manufactured and sold up to over 200 sets per year.
