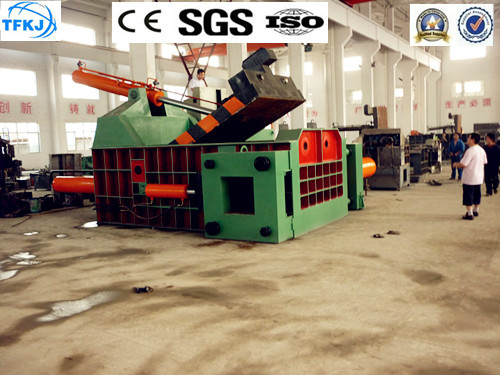

YDJ-5000 Hydraulic Metal Scrap Shear Press Baler

Name: YDJ-5000 Hydraulic Metal Scrap Shear Press Baler
Brand: china-castingforging.com
SKU: 717011185
Availability: InStock
Rating: 4.4 (133 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Jiangyin Tianfu Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	YDJ-5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality Certification:	CE;ISO9001:2008;SGS
Type:	Packing Machine
Application:	Machinery & Hardware
Forging Forming Method:	Free Forging

Product Description

1. Product Name:
YDJ-5000 Hydraulic metal scrap shear press baler(factory and supplier)

2. Applications:
Y81 series of metal baler are applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes: Cuboid; Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.

3. Features
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging: Turn-out, push-out, forward-out or manual discharging. Equipped for power.
3)No footing bolts needed in installation; Diesel engine can be equipped or power
4)Baling force 10 grades from 63 to 400 tons; Productivity from 4 to 40 tons per shift(8 hours)

4. Quality standard:
The machines apply to CE/ISO9001: 2000/SGS

5. Service:
Lifelong maintainance and considerate technical support!

Any interest in our products, pls contact me by email or chatting online.

Name: Cathy Hu
Tel: 86 13771607710

Model	Nominal Force (KN)	Material box size(LWH) (mm)	Bale Size (mm)	Bale Density (kg/m 3 )	Capacity (kg/h)	Cycle Time (s)	Power (kw)	Bale Discharging Operation
Y81-630	630	1000600500	(180-250)200200	> 1800	500-1000	90	7.5	Over packet,manual
Y81-1000	1000	1000600500	(200-300)230230	> 1800	1000-1200	120	11	Over packet,manual
Y81/T-1000	1000	1000600500	(200-300)230230	> 1800	1000-1200	120	15	Push,manual
Y81-1250	1250	1200700600	(150-360)300300	> 1800	1000-1500	120	15	Push,manual
Y81/T-1250	1250	1200700600	(250-400)300300	> 1800	1500-2000	80	18.5	Push,PLC
Y81Q-1350	1350	1400600600	(240-450)600240	> 1800	1800-2500	80	22	Before packet,manual
Y81-1600	1600	16001000700	(400-600)400400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600A	1600	16001000800	(400-600)400400	> 1800	2000-3000	150	22	Push,manual
Y81/T-1600B	1600	16001200800	(400-600)400400	> 1800	2000-3000	160	30	Push,manual
Y81-2000	2000	16001200800	(400-600)400400	> 1800	2500-4000	160	30	Push,manual
Y81/T-2000A	2000	16001200800	(400-650)400400	> 1800	2200-4000	160	30
Y81/T-2000B	2000	18001400900	(400-700)450450	> 1800	2500-4500	160	37
Y81-2500	2500	20001400900	(400-700)500500	> 1800	3500-5000	160	37
Y81/T-2500A	2500	20001400900	(400-700)500500	> 1800	3500-5000	160	44	Push,PLC
Y81/T-2500B	2500	200017501000	(450-800)500500	> 1800	3500-5000	160	60
Y81-3150	3150	200014001000	(400-700)500500	> 1800	3500-5000	160	60
Y81/T-3150	3150	200016001200	(450-700)550550	> 1800	4000-5000	160	66	Push,PLC
Y81/T-4000A	4000	200016001200	(450-800)550550	> 1800	5000-6000	160	74	Push,PLC
Y81/T-4000B	4000	260020001200	(500-1000)600600	> 1800	5000-7000	180	90	Push,PLC
Y81/T-4000C	4000	500020001200	(500-1200)700700	> 1500	8000-10000	200	135	Push,PLC
Y81/T-6000	6000	320020001200	(500-1200)700700	> 1800	7000-9000	180

Sincere cooperation, Create a win-win situation

Jiangyin Tianfu Technology Co., Ltd. is a domestic R & D production of large and medium-sized scrap processing equipment and hydraulic equipment backbone enterprises, but also the Asia-Pacific region' S largest manufacturer and well-known enterprise of scrap metal hydraulic baler, non-metallic baler, metal shear, scrap car baler, the company has become the key R&D unit in waste recycling machinery industry, has been the permanent member of CAMU and CRRA, got recommendation as scrap processing equipment unit. Products are widely used in materials recycling, waste utilization, scrap automotive and other industries, favored by the users, currently has a scrap metal packaging, shear, scrap cars packed shearing, crushing and fire scrap processing equipment, more than ten series, more than 80 varieties of products. Products are exported to the United States, Japan, Russia, India, Brazil, Africa, Europe, Southeast Asia and other more than 70 countries and regions.

The company now has production capacity of more than 3, 000 sets of large and medium-sized hydraulic machinery as annual output, and a highly qualified, young, innovative and strong research team who founded postdoctoral research workstation with the establishment of Hefei University. According to the users' Customized needs, the company can make special types. In recent years the company developed new products every year more than 10, each with national patent.

With the honor of "Private technology enterprise in Jiangsu Province", also the key unit to be promoted as Quality & prestige double safeguard demonstration unit in China Light Product Quality Assurance Center.

All the products of Tianfu are in strict accordance with ISO9000, ISO2000 and CE certified quality management system standard operation.

Tianfu people are always leaded by spirit "self-imposed pressure, harmony progress, technological innovation, Resplendence Accomplishment". The company' S philosophy is "Serving the customers as the eternal quest, focusing on the market value as the center ". Serving in good faith and making customer satisfying is the objective of all employees in Tianfu.
