| Prod Model: |
yfc36-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

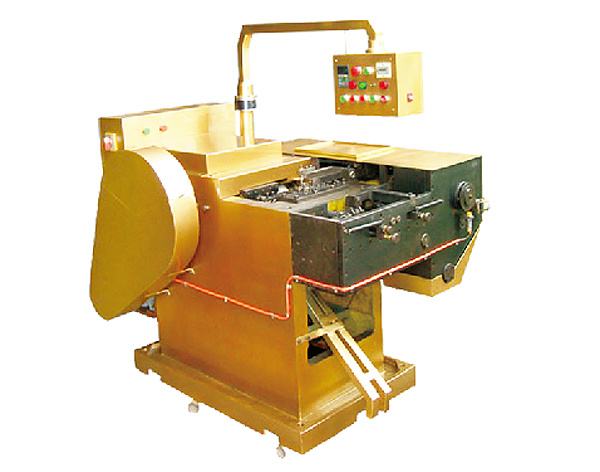

Yfc36-3 tri metallic Button & Rivet Automatic Machine use cold forming process to make tri-metal rivet, it's featuring high reliability, high productivity, multi-purpose and convenient for operation.
APPLICATION
MICRO SWITCH MANUFACTURERS
AUXILIARY SWITCH MANUFACTURERS
ROTARY SWITCH MANUFACTURERS
LIMIT SWITCH MANUFACTURERS
KNIFE SWITCH MANUFACTURERS
ROCKER SWITCH MANUFACTURERS
DOMESTIC SWITCH MANUFACTURERS
AUTOMOTIVE SWITCH MANUFACTURERS
RELAYS MANUFACTURERS
MOTOR STARTER
SWITCH GEARS MANUFACTURES
AUTOMOTIVE MANUFACTURES
AVIATION MANUFACTURES
APPLIANCES MANUFACTURES
Bi metal and Tri metal electric contact rivets type: AG/Cu, FAG/Cu, AgNi/Cu, AgSnO2/Cu, AgSnO2In2O3/Cu, AgCu/Cu, AgZnO/Cu, AgCdO/Cu, etc bi metal composite electrical contact rivets; AG/Cu/AG, FAG/Cu/FAG, AgNi/Cu/AgNi, AgSnO2/Cu/AgSnO2, AgSnO2In2O3/Cu / AgSnO2In2O3, AgZnO/Cu/ AgZnO, AgCdO/Cu/AgCdO etc. Tri metal composite electrical contact rivets
The machine can produce cold headed solid and bimetal contacts from a wide variety of materials.
Typical alloys include:
Silver
Fine grained silver
Silver-Nickel
Silver-Iron
Silver-Graphite
Silver-Cadmium Oxide
Silver-Tin Oxide
Gold
Platinum
Palladium
|
Item |
Data |
|
Motor Power |
3Kw |
|
Machine Power |
3.6kw |
|
Power Supply |
380v50hz |
|
Net Weight |
1800kg |
|
Transducer |
5.5kw |
|
Dimension( LxWxH ) |
1530x1020x1420mm |
|
Head Dia |
2-8 |
|
Head Thickness |
Max3 |
|
Shank Dia . |
φ1 - φ 4 |
|
Head Silver Layer |
Min 0.25 |
|
Shank Length |
Max9 |
|
Shank Silver Layer |
Min0.4-2.5 |
|
Output |
4000-8000pcs /h |
