| Prod Model: |
YT-Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Allwell |
| Condition: |
New |
| Place Of Origin: |
Zhejiang, Chin |
| Warranty: |
One Year |
| Certification: |
CE&ISO9001 |
| After-Sales Service Provided: |
Engineers Available to Service Machinery |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Type: |
Ink Jet |
| System Supported: |
Windows2000 |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
Product Description

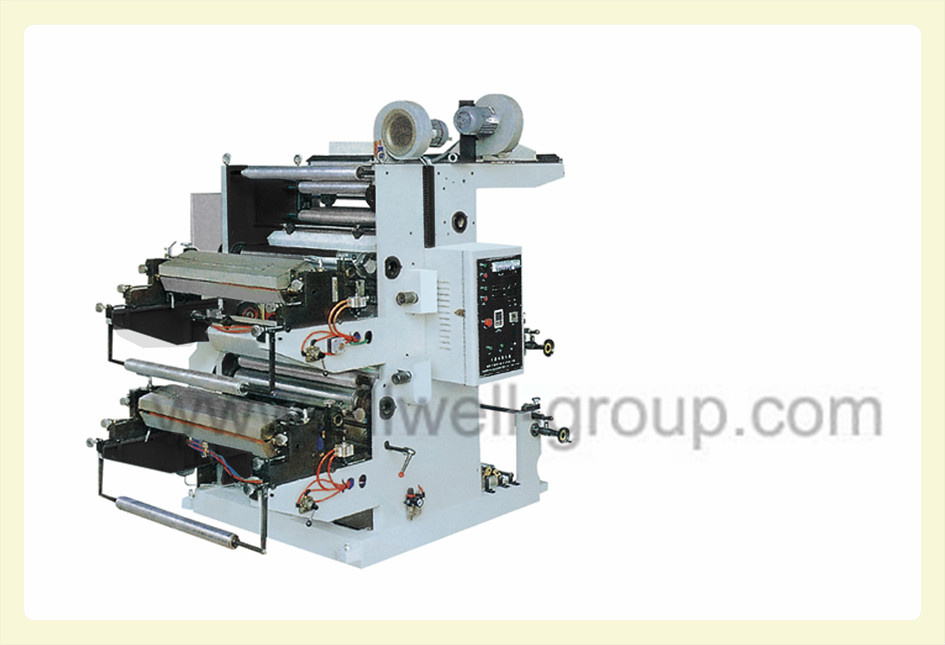

YT-2600 Flexographic Printing Machine ( 2 color)
Properties:
Flexo Graphic printing machine, which means using rubber plate or photosensitive resin plate as printing plate to
Print image. Normally, the body use die casting or iron board. It can print on various materials, such as paper,
Plastic, non-woven, etc
Machine Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
Packing &Delivery:
Packaging Details: Wooden box
Delivery Detail: 15days after receiving the deposit
|
Model |
YT-2600 |
YT-2800 |
YT-21000 |
|
Max.width of the material |
1200mm |
1400mm |
1600mm |
|
Max.width of printing |
600mm |
800mm |
1000mm |
|
printing length |
180-990mm |
180-990mm |
180-990mm |
|
Max.diameter of the material roll |
1000mm |
1000mm |
1000mm |
|
Printing speed |
10-80m/min |
10-80m/min |
10-80m/min |
|
Plate thickness |
2.28/3.94mm |
2.28/3.94mm |
2.28/3.94mm |
|
Total power |
12kw |
12.5kw |
13kw |
|
Weight |
1500kg |
2000kg |
2500kg |
|
Overall size |
2300*1600*2200mm |
2300*8100*2200mm |
2300*2000*2200mm |
Wenzhou Allwell Machinery Share Co., Ltd. Established in 2013, we are sourcing from Wenzhou Ounuo Machinery Share Co., Ltd. Experiencing 3 years' S continued struggle, we collect all the knowledge and resource to service our customers with complete solution in Nonwoven fabric industry in our field. Allwell get rich technology and capital resource, especially we pay high attention to new product innovation. At the same time, we have got Excellent and precise processing center, impeccable testing instrument and perfect quality control system. All of this insure our product quality and reliability. Allwell has passed ISO9001: 2008 quality certificated system and CE safety certificated system. We got import and export right by ourselves.
Including the Nonwoven Production Line, Nonwoven Bag Making Machine and Nonwovens Printing Machine, which we had exported to all over the world in the past years. Such t as East Europe, Middle East, North America, South America, Southeast Asia ect. More than 50 countries and regions. Technology and performance of our products, are in the leading level in the world, a number of technology get the international non-woven industry Association certification. We also participated informulating theinternational standard of nonwoven making machine. A number of international standards were drafting and formulation by us.
Prework, practice conscience first. We always carries a grateful heart to service every customer carefully. Creating value for customers first is the only way to achieve self-worth. Accompany with All well, there will be more moving and less worries on your way to be rich.
Our company supplys different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
