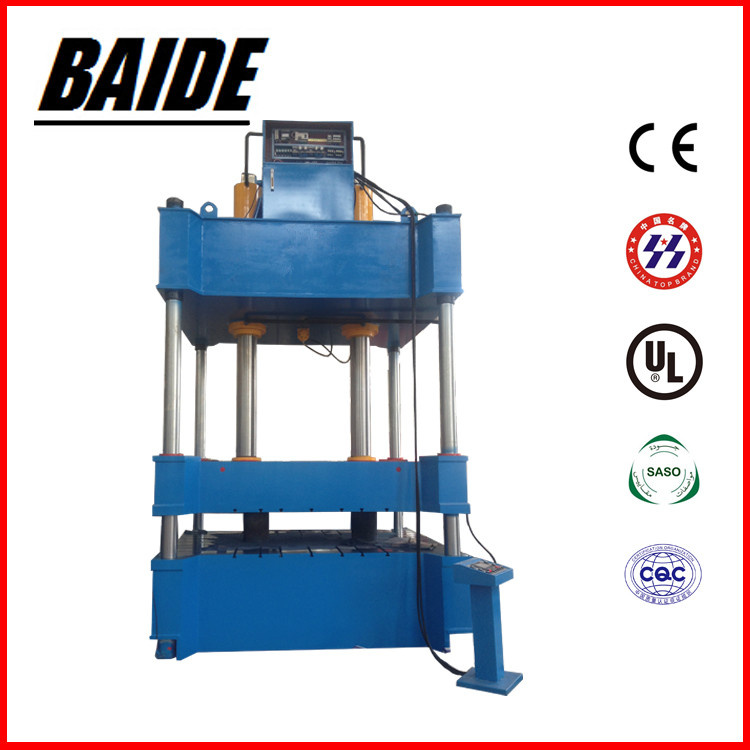

Ytd32 CNC PLC Four Columns Posts Double Actions, Drawing Hydraulic Press Punching Stamping Machine with Ejection Cylinder

Prod Model:	YTD32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Anhui, China (Mainland)
CNC Or Not:	CNC
Brand Name:	Baide
Model Number:	Yq32 Series
Color:	as Your Requirement
Delivery Date:	30 Days
Quality Guarantee:	1 Year
Forging Forming Method:	Mold Forging
Power Source:	Hydraulic

Product Description

Hydraulic four-column press machine from China supplier Introduction of Hydraulic Press Baide manufactures wide ranges of hydraulic press to meet the need of every customer's specification and requirements. Hydraulic press adopts four-column structure with simple, economic and practical design. The hydraulic control system employs cartridge valve integrated system, so the moving is reliable and can work for a long life. With an independent power-control system, this hydraulic press has a very clear working circle and can be easily repaired. The working pressure and stroke can be changed according to customer's needs. Charatcter of hydraulic press: 1. Machine frame and worktable enjoy high guide precision, good rigidity and resistance to lateral force. It is specially suitable for pressing both asymmetric products and those with high precision. 2. Worktable enjoys fast speed and high production efficiency. 3. Four columns are made of alloy steel with high strength, being hard chrome plated and good wearing resistance. 4. Cylinder is mounted underneath to embrace a compact structure. Application of hydraulic press: Stamping, forming, stretching, shaping, laminating and edge cutting of metal and non-metal parts. Typical products that is pressed are watchcase, watchband, eyeglass frame and components, picture frame, tableware, logo, lock, hardware, etc. More types of hydraulic press: Specification Model Unit YQ32-40 YQ32-63 YQ32-100 YQ32-100A YQ32-160 YQ32-200 YQ32-315 YQ32-400 YQ32-500 YQ32-500C YQ32-630 Nominal force KN 400 630 1000 1000 1600 2000 3150 4000 5000 5000 6300 Knock-out force KN 120 190 190 190 240 400 630 630 1000 1000 1000 Max. working hydraulic pressure Mpa 25 25 25 25 25 25 25 25 25 25 25 Slide-stroke mm 450 500 600 600 700 700 800 800 900 900 900 Knock-out stroke mm 150 200 200 200 200 250 300 300 350 350 350 Max. distance between lower sur-face of slide and surface of table mm 700 800 900 900 1050 1100 1250 1300 1500 1500 1600 Slide-travel speed Idledown running mm/s 40 100 22 180 120 100 100 100 100 100 100 Working mm/s 15 20 14 14 10 12 5 4 10 10 6 Return mm/s 50 60 47 60 60 52 60 60 60 60 50 Effec-tive area of table Left-right mm 500 560 680 500 1000 1000 1200 1200 1400 2370 1500 Front-back mm 460 500 580 460 800 900 1200 1200 1400 1450 1500 Overall dimen-sion Left-right mm 2000 2400 2500 2000 2700 2825 3235 3235 4060 6500 4200 Front-back mm 1300 1400 1500 1300 1700 2060 2200 2200 3525 3800 4200 Height above ground mm 2600 3100 2950 2600 3400 3725 4295 4500 4995 4740 5600 Total motor power kw 4 7.5 7.5 4 7.5 15 22 22 45 45 45 Weight kg 2000 3000 4000 2000 6000 11000 14000 22000 25000 38000 34000 Specification Model Unit 11601 11602 11603 11604 11605 11606 11607 11608 11609 11610 11611 YQ32-40 YQ32-63 YQ32-100 YQ32-100A YQ32-160 YQ32-200 YQ32-315 YQ32-400 YQ32-500 YQ32-500C YQ32-630 Nominal force KN 400 630 1000 1000 1600 2000 3150 4000 5000 5000 6300 Knock-out force KN 120 190 190 190 240 400 630 630 1000 1000 1000 Max. working hydraulic pressure Mpa 25 25 25 25 25 25 25 25 25 25 25 Slide-stroke mm 450 500 600 600 700 700 800 800 900 900 900 Knock-out stroke mm 150 200 200 200 200 250 300 300 350 350 350 Max. distance between lower sur-face of slide and surface of table mm 700 800 900 900 1050 1100 1250 1300 1500 1500 1600 Slide-travel speed Idledown running mm/s 40 100 22 180 120 100 100 100 100 100 100 Working mm/s 15 20 14 14 10 12 5 4 10 10 6 Return mm/s 50 60 47 60 60 52 60 60 60 60 50 Effec-tive area of table Left-right mm 500 560 680 500 1000 1000 1200 1200 1400 2370 1500 Front-back mm 460 500 580 460 800 900 1200 1200 1400 1450 1500 Overall dimen-sion Left-right mm 2000 2400 2500 2000 2700 2825 3235 3235 4060 6500 4200 Front-back mm 1300 1400 1500 1300 1700 2060 2200 2200 3525 3800 4200 Height above ground mm 2600 3100 2950 2600 3400 3725 4295 4500 4995 4740 5600 Total motor power kw 4 7.5 7.5 4 7.5 15 22 22 45 45 45 Weight kg 2000 3000 4000 2000 6000 11000 14000 22000 25000 38000 34000 Real shot photos Contact us NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand We will reply within 12 hours. Please contact me via the follow email or skype
