Product Description

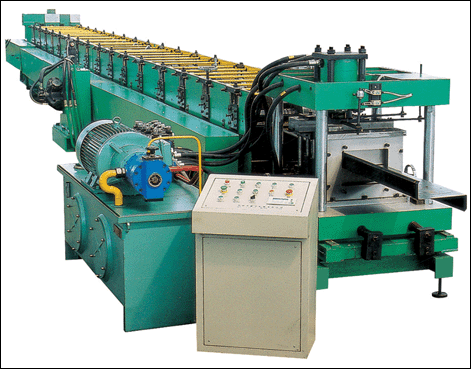

Z-shaped purlin forming machine can produce many types of z-shaped purlin. The whole line mainly consists of decoiler and its base, coil sheet flattening equipment, punching equipment, pre-cutting equipment, z-shape forming system, hydraulic station, and controlling system.
Product feature and usage
The z-shaped purline formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Suitable material for production
Cold-rolled steel strip and heat-treated galvanized steel strip
Size of material: (192~422)mm× (2.0~3.0)mm× Lmm.
Main technical specification
1. Size: 23000mm× Mm× Mm
2. Total weight: About 13, 000kg
3. Controlling system: PLC
4. Main motor power: 15kw; Hydraulic motor power: 2.2kw
5. Working speed: 8000~10000mm/min
6. Hydraulic pressure: 18~20mpa
7. Product range: All the type from 100 to 240
Welcome to Rishbin, an innovative supplier in roll forming machinery market.
Rishbin was founded in 1999. With almost twenty years development, now it becomes a leading professional supplier in the field of roll forming machinery industry, and exports its quality production line to the markets all over the world.
Based on much experiences on providing quality, cost-effective and long lasting roll forming systems, the machines we built are widely used for steel frame housing fabrication, roof and ceiling battens, pre engineered steel building erection, residential, commercial and agricultural building needs. We are very specialized in providing custom rollforming machines, especially build it to your product design, to suit your needs and applications.
Warmly welcome customers from all over the world to negotiate any co-operation with us. Rishbin has a hard-working and efficient team, and our service will never be final until you're satisfied.
