Zjl Series Vertical Slurry Pump
Price: |
US $ 800-2100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
150ZJ-60 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1-18 Inch |
Model No.: |
25hs-B |
Working Pressure: |
Low Pressure Pump |
Position Of Pump Shaft: |
Horizontal Pump |
Impeller Number: |
Single-Stage Pump |
Influent Type Of Impeller: |
Single Suction Pump |
Product Description

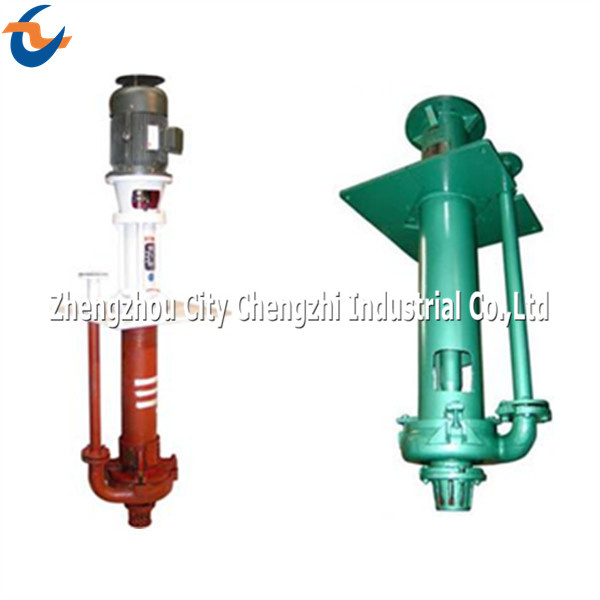

ZJL Series Vertical Slurry Pump(ZJL Series Vertical Sump Slurry Pump ) (ZJL series under water vertical slurry pump)
ZJL Series Slurry Pump is a single stage, single-suction vertical centrifugal pump with designed according to the principle of minimum loss in theory of liquid-solid two-phase flow. The Geometry of wet parts conform to the state of follow medium, and reduce hydraulic loss partially in vortex, impact or along the way, reducing the wear of flow passage components, improving hydraulic efficiency, and reducing running noise and vibration; the series of flow passage components are made of high hard alloy cast iron which has high antiwear property,corrosion resistance, and impact resistance, improving the service life. ZJL slurry pump doesn't need any shaft seal and seal water when it generally immerses the pool or pit to work.
The series of submerged pump with lengthening shaft is suitable for working condition with deep liquid level. The series of pump is suitable for conveying abrasive and corrosive slurry with solid particles in mining, metallurgy, power, coal, chemical industry, building materials and other industries, and maximum weight concentration of solid-liquid mixture is: Mortar 45%, ore pulp 60%.

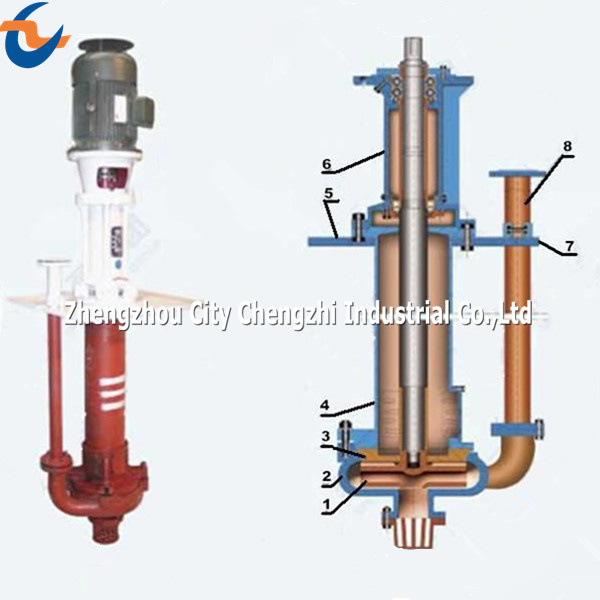

1. Impeller 2. Volute Casting 3. Rear Liner Plate 4. Surpport
5. Left Surpporting Plate 6. Bearing Body 7. Drain Pipe 8. Right Supporting Plate
SPECIFICATIONS Single Case, Single Stage, Single-Suction, Vertical Slurry Pump Volute Casing : High Chrome Alloy
Impeller Material: High Chrome Alloy
Rear Liner Plate: High Chrome Alloy
Discharge Size: 2 " to 14 "
Flow rate: Up to 2,106.9GPM
Head: Up to 264.11 '
Temprature of Slurry Handing: Max. 60 Degree Celsius
pH Levels of Slurry Handing:5-12
Concentration of Ash Slurry Handing: 45% By Weight
Concentration of Ore/Coal Slurry Handing: 60% By Weight
Advantagesa) The wear parts are made of high-chrome alloy of abrasion resistance .
b) High efficiency and energy efficiency
c) Light weight and long service life time
d) Rational construction and reliable operation.
e) Lower noise and vibration of the pump translates into improved hydraulic efficiency
Type |
Allowable max.power of ass.motor |
Clear water performance |
Particle Max. Size handled occasionally |
Capacity |
Head |
Speed |
Max. |
(NPSH) |
Q |
H |
n |
Eff. |
r |
|
|
|
η |
|
(KW) |
(m3/h) |
(m) |
(r/min) |
(%) |
(m) |
(mm) |
150ZJL-35 |
220 |
142-552 |
21.8-93.8 |
490-980 |
|
|
|
100ZJL-34 |
185 |
93-401 |
20.0-91.2 |
490-980 |
62.3 |
2 |
37 |
150ZJ-65 |
200 |
150-600 |
17.4-75.7 |
490-980 |
70.8 |
2.5 |
48 |
150ZJ-63 |
185 |
146-582 |
16.3-71.1 |
490-980 |
69.8 |
2.5 |
48 |
150ZJ-60 |
160 |
135-550 |
14.7-63.5 |
490-980 |
75.9 |
2.5 |
48 |
150ZJ-58 |
132 |
131-532 |
13.7-61.0 |
490-980 |
69.1 |
2 |
75 |
150ZJ-58C |
160 |
134-596 |
12.8-53.4 |
490-980 |
71.6 |
2.3 |
48 |
150ZJ-57 |
110 |
95-427 |
13.2-56.3 |
490-980 |
67.8 |
1.8 |
32 |
150ZJ-55 |
110 |
124-504 |
12.3-53.4 |
490- 980 |
72.9 |
|
48 |
150ZJ-50 |
75 |
115-460 |
9.5-43.1 |
490-980 |
76.8 |
2.5 |
48 |
150ZJ-48 |
75 |
111-442 |
8.7-39.7 |
490-980 |
75.8 |
2.5 |
48 |
150ZJ-42C |
132 |
142-550 |
12.1-62.8 |
700-1480 |
77.1 |
2.2 |
69 |
100ZJ-50 |
160 |
85-360 |
20.5-100.2 |
700-1480 |
69.6 |
2.5 |
34 |
100ZJ-46 |
132 |
79-331 |
13.7-84.8 |
700-1480 |
67.6 |
2.3 |
34 |
100ZJ-42 |
90 |
66-275 |
14.7-70.8 |
700-1480 |
71 |
2.5 |
35 |
100ZJ-42B |
90 |
83-365 |
12.7-66.8 |
700-1480 |
71.6 |
2.5 |
40 |
100ZJ-39 |
75 |
61-255 |
12.6-61.0 |
700-1480 |
69 |
2.4 |
35 |
100ZJ-36 |
55 |
61-245 |
9.7-49.5 |
700-1480 |
71.6 |
2 |
32 |
100ZJ-33 |
45 |
56-225 |
8.2-41.6 |
700-1480 |
69.6 |
1.8 |
32 |
80ZJ-52 |
160 |
51-242 |
22.1-109.8 |
700-1480 |
56.3 |
2.1 |
21 |
80ZJ-42 |
75 |
61-204 |
14.4-70.4 |
700-1480 |
66.7 |
2.5 |
24 |
80ZJ-39 |
55 |
57-189 |
12.4-60.7 |
700-1480 |
64.7 |
2.4 |
24 |
80ZJ-36 |
45 |
46-190 |
9.6-51.4 |
700-1480 |
67.7 |
2.4 |
24 |
80ZJ-33 |
37 |
43-174 |
8.0-43.2 |
700-1480 |
65.7 |
2.3 |
24 |
65ZJ-30 |
15 |
23-79 |
7.4-34.8 |
700-1460 |
63.5 |
2 |
19 |
65ZJ-27 |
11 |
20-71 |
6.0-28.2 |
700-1460 |
61.5 |
1.8 |
19 |
50ZJ-50 |
90 |
27-111 |
22.3-110.7 |
700-1480 |
45.1 |
3 |
13 |
50ZJ-46 |
55 |
23-94 |
17.9-85.8 |
700-1480 |
44.7 |
1.4 |
13 |
50ZJ-33 |
18.5 |
12-54 |
7.7-42.5 |
700-1480 |
42.1 |
2.9 |
13 |
40ZJ-19 |
15 |
8-35 |
12.8-57.1 |
1430-2930 |
58.8 |
1.3 |
11 |
40ZJ-17 |
7.5 |
4-23 |
9.0-44.6 |
1400-2900 |
52.4 |
2.5 |
11 |
150ZJL-35 |
37 |
99-364 |
3.0-17.9 |
490-980 |
68.1 |
|
15 |
100ZJL-34 |
45 |
74-293 |
5.5-36.8 |
700-1480 |
65.8 |
|
14 |
80ZJL-36 |
45 |
50-201 |
7.3-45.5 |
700-1480 |
58.2 |
|
10 |
65ZJL-30 |
18.5 |
18-98 |
5.9-34.7 |
700-1470 |
53.7 |
|
8 |
50ZJL-20 |
4 |
8-38 |
1.4-10.7 |
700-1440 |
38.6 |
|
10 |
