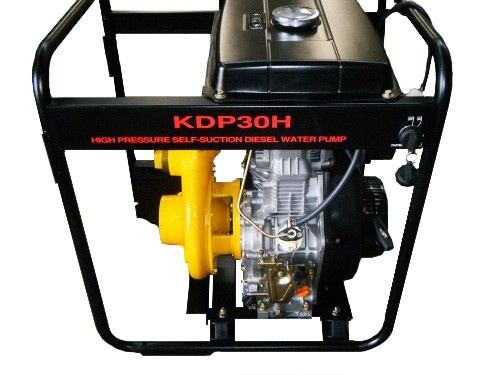

3'' High Pressure Cast Iron Diesel Water Pump

3'' High Pressure Cast Iron Diesel Water Pump
Price: US $ 340/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: KDP30H
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Of In/Outlet: 80mm(3'')
Rate Lift: 55m
Rate Flow: 38m3/H
Max Suction Lift: 8m
Material: Cast Iron
Structure: Single-stage Pump
Type: Positive-Displacement Pump
Application: Sewage Pump
Theory: Centrifugal Pump
Power: Diesel Engines
Media: Water

Product Description

This series of diesel powered cast iron water pump units are manufactured by Kaiao power.

Brief introduction:
1. This type is the hot sale of iron casting series, with 3'' diameter of inlet and outlet.(Iron casting) Diesel engine, suits for many removable working conditions.
2. Engineering steel shell well absorb shock and stress. High-duty shock rubber absorb kickbacks.
3. Centrifugal type, make the flow larger to 38m³ /h, and long suction lift to 8m,large engine,make the lift to 55m.
4. High grade seal level, confirm high grade of pumping water.
5. Built-in air intake system, provide cleaner air against dust, humid...To engine for long life and improve durability.
6. Electric start and reliable governors make operating easy.
7. Energy-saving and low pollution make outstanding performance, achieve CE, ISO9001 and many domestic standards.
Diesel  Engine  Water  Pump
ModelKDP30Hi
Diameter(mm)  (inch)80(3"   )
Max.   flow(m3/h)38
Max.   lift(m)55
Max.   suction  lift(m)8
Rotational  speed(rpm)3600
Self-priming  time(s/4m)50
Engine  modelKA186F
Engine  typeSingle-cylinder,   vertical,   four-stroke, air  cooled
Bore*stroke(mm)86*70
Displacement  (L)0.406
Power  (KW)6.3/3600
Power  (HP)6.6HP/3600
Fuel  consumption  rate(g/kw. h)285
Compression  ratio20
Lubrication  systemPressure  splash  Type
Engine  starting  systemRecoil  starter
Fuel  oil  modelSummer: 0#, Winter: -10#
Lube  oil  modelSAE10W-30  (above  CD  grade)
Lube  oil  capacity  (L)1.1
Fuel  tank  capacity  (L)5.5
Dimension  (L*W*H)(mm)590*475*585
Net  weight(kg)62
Gross  weight(kg)66
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
