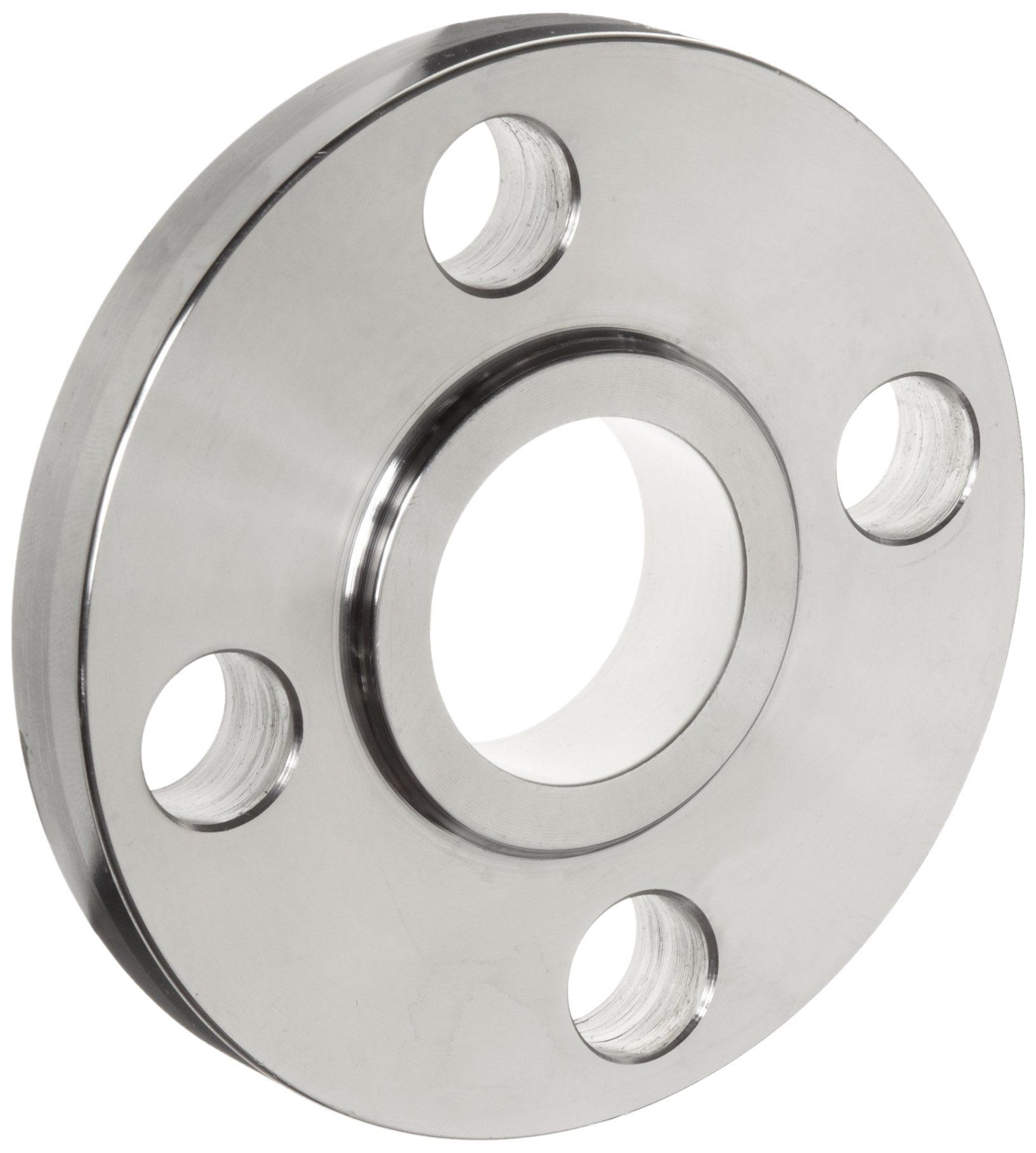

300lbs Stainless Steel Flange

300lbs Stainless Steel Flange
Price: US $ 1-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Money Gram,Western Union
Prod Model: ASTM, ANSI, DIN, EN, JIS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Stainless Steel Flange
Title: Steel Flange
Keywords: Carbon Steel
Nominal Diameter: Dn10~Dn2000
Daimeter At Base Of Hub: 21~717
Thickness: 11~70
Shipment: Container
Colour: Metal Shining
Weight: as Required
Size Range: Dn10~Dn2000
Material: Carbon Steel
Type: Welding Flange
Standard: BSW
Manufacturing Way: Forging

Product Description

EN / ANSI pipe connection carbon steel flange wiht SGS


1.Type
Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange  Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.


We manufacture all kinds of flanges, such as forged Slip-On flange, blind flanges, welded neck flange, blind flange, LWN and more as Customer requirements.


The General ASTM Material For Flanges



Class and Sort

Chemical Components %Mechanical Property

C(Max)Si(Max)Mn(Max)Cr(Max)Ni(Max)Mo(Max)P(Max)S(Max)Tensile Strength
    mpa(Min)
Yield Strength
    mpa(Min)
Elongation
   mpa(Min)
Hardness
   (Max)

ψ %
ASTM
A105/A105M
A1050.350.10-0.350.65-1.050.300.400.120.0350.0404852502218730
ASTM
A182/A182M
F11CL10.05-0.150.50-1.000.30-0.601.00-1.50...0.44-0.650.0300.03041520520121-17445
F11CL20.10-0.200.05-1.000.30-0.801.00-1.50...0.44-0.650.0400.04048527520143-20730
F11CL30.10-0.200.05-1.000.30-0.801.00-1.50...0.44-0.650.0400.04051531020156-20730
F12CL10.05-0.150.500.30-0.600.80-1.25...0.44-0.650.0450.04541522020121-17445
F12CL20.10-0.200.10-0.600.30-0.800.80-1.25...0.44-0.650.0400.04048527520143-20730
F3040.081.002.0018.0-20.08.0-11.0...0.0450.03051520530...50
F304H0.04-0.101.002.0018.0-20.08.0-11.0...0.0450.03051520530...50
F304L0.0301.002.0018.0-20.08.0-13.0...0.0450.03048517030...50
F316L0.0301.002.0016.0-18.010.0-15.0...0.0450.03048517030...50
F3170.081.002.0018.0-20.011.0-15.0...0.0450.03051520530...50
F3210.081.002.0017.0-19.09.0-12.0...0.0450.03051520530...50
F3470.081.002.0017.0-19.09.0-13.0...0.0450.03051520530...
