80mm~300mm Bronze Rod Horiztonal Type Continuous Casting Machine

80mm~300mm Bronze Rod Horiztonal Type Continuous Casting Machine
Price: US $ 18000-200000/Piece
Trade Terms: FOB,CIF,DAT
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: GYT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Line-Frequency Induction Melting
Capctity: 1ton ~ 50ton Per Day
Input Voltage: 380V, or as Required
Power Consumption: 200~600kw.H/ Ton
Rated Melting Pwer: 60~720kw
Rated Holding Power: 30~160kw
Casting Speed: 0.2~3ton/ H
Working Temperature: 1250 Celsius Degree

Product Description

Brass/bronze rod/tube continuous casting machine is mainly used to produce rods, tubes, billets from brass/bronze scrap .The materials can be pure brass/bronze ,scrap brass/bronze, etc.

Main composed parts :
1. GYT series induction furnace (for melting/holding).
2. Traction machine.
3. Automatic cutting machine.
4. Electric control system
5.Water cooling system
6. Dust removal equipment.

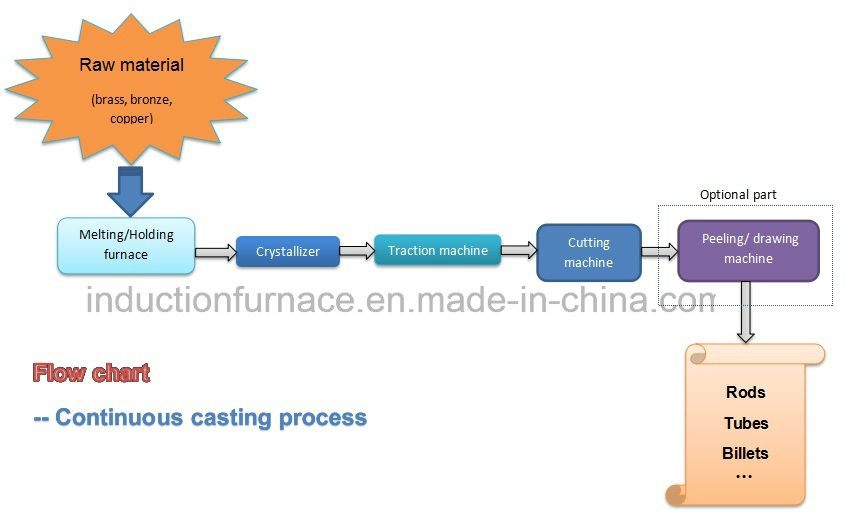

The casting flow chart

A brief introduction of GYT series melting/holding furnace

GYT series melting/holding furnace, adopting line-frequency induction melting technology, is one kind of induction furnace using  50/60HZ current as the induction power supply. It is mainly used as melting furnace and holding furnace in the smelting process of copper, Zinc and other non-ferrous metals.
Take the advantage of its simple structure,easily available material and convenient installation, this kind of furnace is developing to be a widely used metallurgical equipment.


Features:

* High electrothermal efficiency
* Easy to control the moisture and temperature
* Low wastage, low cost
* Low air and inclusion content in the casts
* Eco- friendly
* Improved the working conditions


Technical Parameters:
ModelGYT-0.15TGYT-0.30TGYT-0.50TGYT-0.75TGYT-1.0TGYT-1.5TGYT-3.0T
Rated capacity (T)0.50.81.51.822.55
Rated power (KW)4575120185240400600
Rated voltage (V)380 380380380380380380
Rated frequency (Hz)50505050505050
Phase3333333
Rated temperature (oC)1200120012001200120012001200
Melting rate (T/h)0.150.30.50.7511.53
Electricity consumption (KW·h/t)320310300290290280280
Transformer capacity (KVA)80100150200250500800

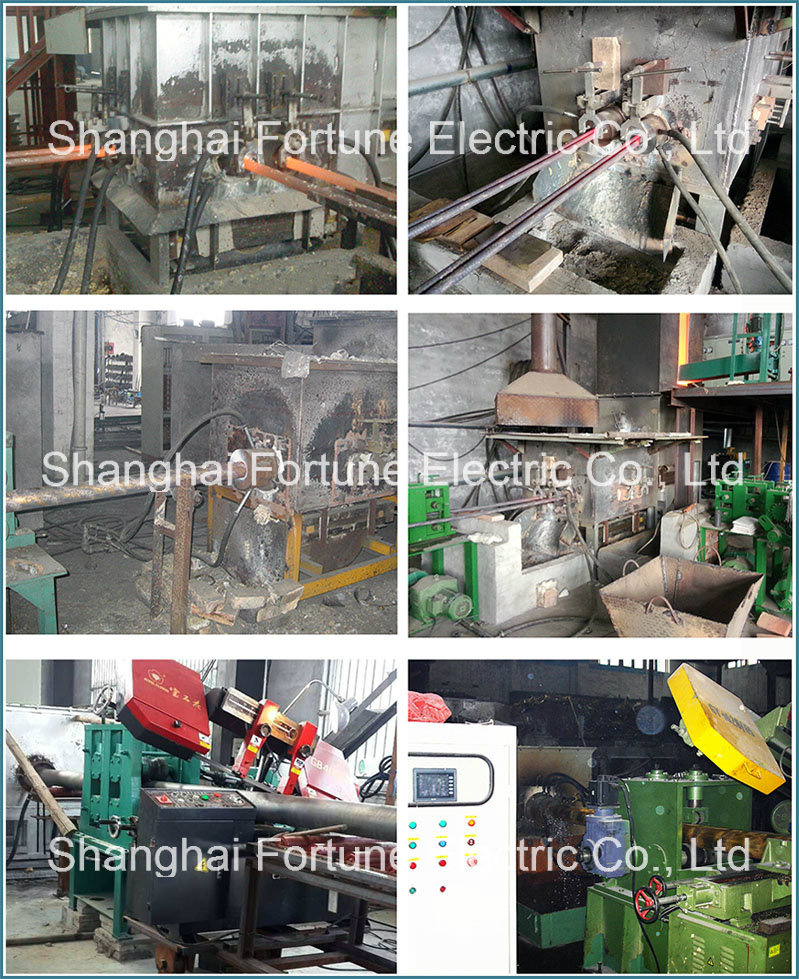

Brass/bronze rod/tube production site




China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.

China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.

China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.

Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.

Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
