Prod Model: |
flanges |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brida Ciega: |
Brida Ciega |
Standard: |
ANSI |
Type: |
Welding Flange |
Material: |
Carbon Steel |
Manufacturing Way: |
Forging |
Product Description
C&N is a professional manufacturer of steel forged flange in China,
Our production scope:
slip on flange,Plate flange, Weld Neck Flange Threaded Flange Blind Flange,
DIN2633, DIN2634, DIN2635,DIN2573 PN6 2576,DIN2543
Flange type | Specifications | Size Range | |
DIN / EN | |

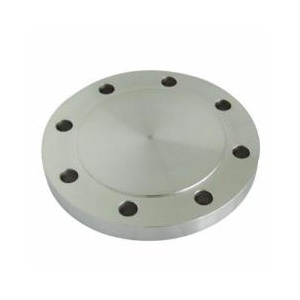

Blind Flanges | | | |
PN 6, PN10, PN16, PN25, PN 40 | DIN 2527 | DN: 10 - 500 mm | |
PN 64 | DN: 10 - 400 mm | |
PN 100 | DN: 10 - 350 mm | |
Flat Flanges for Soldering or Welding | | |
PN6 | DIN 2573 | DN: 10 - 500 mm | |
PN10 | DIN 2576 | DN: 10 - 700 mm | |
|
Lapped Flanges and Plain Collars | | |
PN6 | DIN 2641 | DN: 10 - 700 mm | |
PN10 | DIN 2642 | DN: 10 - 700 mm | |
PN25 | DIN 2655 | DN: 10 - 500 mm | |
PN40 | DIN 2656 | DN: 10 - 400 mm | |
Welding Neck Flange | | |
PN250 | DIN 2628 | DN: 10 - 250 mm | |
PN320 | DIN 2629 | DN: 10 - 250 mm | |
PN1 / PN2.5 | DIN 2630 | DN: 10 - 4000 mm | |
PN6 | DIN 2631 | DN: 10 - 3000 mm | |
PN10 | DIN 2632 | DN: 10 - 2800 mm | |
PN16 | DIN 2633 | DN: 10 - 2000 mm | |
PN25 | DIN 2634 | DN:10 - 1000mm | |
PN40 | DIN 2635 | DN: 10 - 500 mm | |
PN64 | DIN 2636 | DN: 10 - 350 mm | |
PN100 | DIN 2637 | DN: 10 - 350 mm | |
PN160 | DIN 2638 | DN: 10 - 300 mm | |
Lapped Joint Short Stub End | | |
PN10 | DIN 2673 | DN: 10 - 1200 mm | |
|
Threaded Flanges | | |
PN10 / PN16 | DIN 2566 | DN:6 - 100mm | |
Material:
stainless steel :A 182 F 304/304L/316/316L/321/347, Duplex F51/F53/F44/F55/F60/F61
Alloy steel :STM A694/ A694M F42/F46/F52/F56/F60/F70,A182 F5,F9,F11,F22
Carbon steel:ASTM A 105, ST37.2 A 350 LF1, LF2, LF3,API 6A AISI 4130
Inspection: In house and third party
Document: MTC Comply with EN10204 3.1 can be provided prior to shipment
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
