| Prod Model: |
CF-076 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS |
| Origine: |
Qingdao |
| Supply Market: |
Global |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Tolerance: |
CT7-CT9 |
| Machining Type: |
CNC Turning Milling Drilling Lathe |
| Brand: |
Chifine |
| Technology: |
Sand Casting+Machining |
| Type: |
Clay Wet Sand |

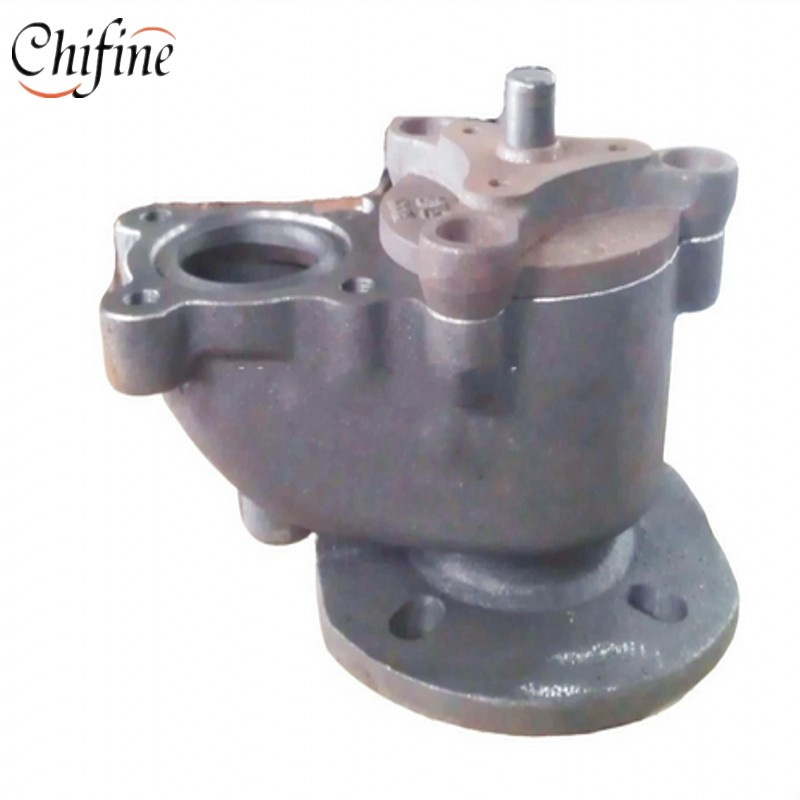

Product Description
Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China.It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of deferent work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
Product Description:
1) Material: High Grade Ductile Iron (450-12/500-7/600-3/700-2);
2) Process: Resin sand casting.
3) Applied software for specification drawings: Pro/E, AutoCAD, Solidworks etc.
4) Facility: Electric furnace, cupola furnace, anneal furnace, sand mixing machine, shot blast chamber, various molding machine.
5) Precision machining: CNC, NC lathes, boring machines, milling machines, bench drilling machines, etc.
6) Surface Protection: oiled (rust-proof), electroplating, hot dip galvanizing, painting, powder coating.
7) Products' location: The special designed fittings, widely used in, power station, industrial equipment, vehicles, etc.
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory ,we can produce the casting by ourselves. The material covers cast iron ,carbon steel ,stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5).15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6) .Excellent and professional service:
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
4. Product Design and casting simulation
1 |
material |
gray iron, ductile iron, alloy iron etc |
2 |
process |
resin sand casting, precision casting/investment casting/die casting, forging, stamping, machining etc |
3 |
machine |
lathe, CNC, drilling machine, milling machine, boring machine, planting machine, machining center etc |
4 |
tolerance |
casting:0.5mm, machining:0.05mm, finish machining:0.005mm |
5 |
capacity |
max diameter:1M, max weight:200KG |
6 |
treatment |
powder coating, painting, plating, galvanizing |
7 |
standard |
JIS, ANSI, DIN, BS, GB |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
