China Equipments Sandwich Panel Making Machine

China Equipments Sandwich Panel Making Machine
Price: US $ 28500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: DX 980/915/750/688/720
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: China Equipments Sandwich Panel Making Machine
Coil Material: Colored Steel Sheet, Aluminium Sheet, Galvanized S
Thickness Of The Plate: 0.3-0.8mm
Width: 950-1200mm
Core Thickness: 40-300mm
Appearance: 38000mm × 3600mm × 3300mm
PLC Control System: Easy to Operate, High Precision and Work Stably
Total Power: About 25kw
Speed: 1000~4000mm/Min
Density Of EPS Panel: >18kg/Mmm
Forging Forming Method: Mold Forging

Product Description

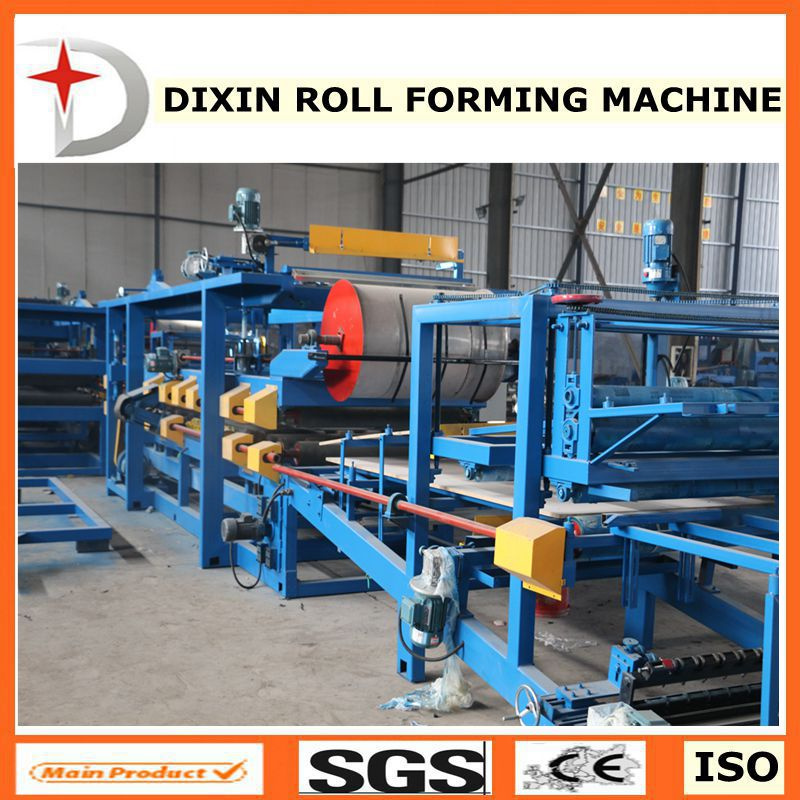

China equipments sandwich panel making machine

Rock wool/Foam Sandwich Panel Roll Forming Machine

wall panel  EPS"H" (1000-1200mm)

feeding width of upper sheet: 1000/1200mm

feeding width of down sheet: 1000/1200mm



hidden wall panel  EPS(950-1150mm)

feeding width of upper sheet: 1000/1200mm

feeding width of down sheet: 1000/1200mm



roof panel  EPS lapped tape 980 sandwich panel

feeding width of upper sheet: 1200mm

feeding width of down sheet: 1000
main parameters:

1. Coil material: colored steel sheet, aluminium sheet, galvanized steel sheet

2. Thickness of the plate : 0.3-0.8mm

3. Width: 950-1200mm

4. Core thickness: 40-300mm

5. Appearance: 38000mm × 3600mm × 3300mm

6. PLC control system, easy to operate, high precision and work stably.

7. Total power: about 25KW

8. speed: 1000~4000mm/min

density of EPS panel: >18KG/mmm

material:1000~1200mm × (0.5~0.6mm )rock wool and foam


Name

  Parameters

 QTY





Raw material

Material:Colored steel
Coil thickness:0.4~0.6mm
Coil weight:Max 5T
Coil width: Max 1250mm
Coil inner diameter:ø508mm
Coil outer diameter:ø1100mm




Un-coiler

Bear  weight:5T
Mandrel expansion :465 - 515 mm

2


Broach

Effective cutting width:1300mm
Cutting thickness:0.4-0.6mm

2

Laminating machine

PVC coil outer diameter:300mm
PVC coil inner diameter:70-82mm
Maximum coil width:1250mm

2

Beading Equipment

Speed:10m/min
Power:2.2kw or according to the profile
Diameter of roller:according to the profile
Power supply:motor
Material of roller:l 40Cr quenched and tempered, chrome

2

Roll forming

Frame:Cantilever structure
Speed:10m/min
Power:4kw up, 7.5kw down
Shaft diameter:50 mm
Distance roller head:350mm
Rollers: 11 up, 18 down

2

Rock wool delivery device

Motor Power:2*1.5Kw
Speed:8m/min
The maximum transport width:1200mm

1

Dispensing Systems

Effective volume:150L
Unit motor power:10KW

1

Tank with Stirrer

Effective volume:150L
Unit motor power:10KW

1

Roll forming  machine

Length:10mm
Width:1200mm
Lifting speed:200mm/min
Drive motor power:2.2Kw*4
Lifting motor power:1.5Kw*4
Speed:10 m/min

1

Cutting part

Cutting motor power:7.5Kw
Lateral movement motor power:1.1 KW
Traversing speed:150 mm/s
Cutting width:1300 mm
Cutting error:±2mm

1

PLC control system

In accordance with international standards to
control cabinet,operating station.Mitsubishi PLC,
Inovance inverter,


9. Power :380V,50-60Hz
10. Thickness :50-250mm
11. Annual production: 600,000 square meter
12. Production line weight: 13T
13. Loading requirement 12.5 m * 2m ( 2*40-foot high containers )
14. Payment:30% TT in advance and balance before shipment or L/C
15. Delivery time:30 days ( one month )
16. Quality gurantee:One year gurantee after delivery ( excluding considered natural disasters )
17. Production lines by the supplier free installation,commissioning, personnel transportation costs shall be payed by the supplier including tickets and accommodactions and salary of USD 80 daily!
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
Any questions, we will reply to you promptly.

WARMLY WELCOME TO OUR NEW FACTORY!

1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2: How to visit our company
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions, you can call me mobile phone at any times:0086-18231737651


3: If you want to get more pictures or videos of the machines, I can send them to you by Email or SKype.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.

We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.

The davantage of our factoy is that

1. Many panel profile drawing machine designs available

2. Good quality machine

3. Good communication and good after sale service

In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.

Pls contact for more business.
