Product Description

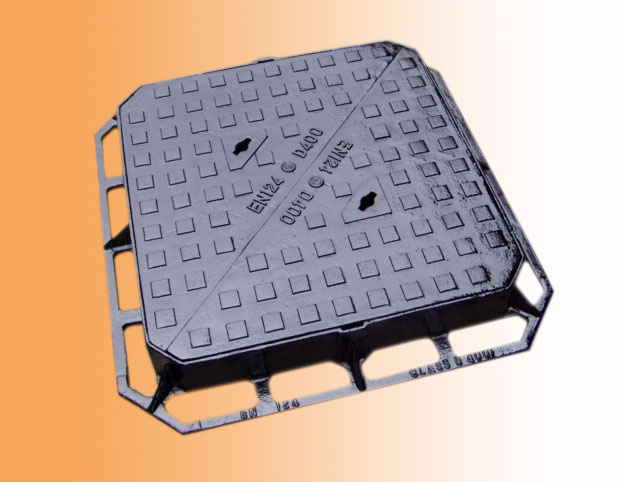

Our foundry makes ductile cast iron double sealed and single sealed manhole covers with solid top and recessed top.
Co: 600x450, 600x600, 300x300, dia 600, 450x450, class b and class d.
Clear Opening
(MM) Overall size (MM) Depth(MM)
300 x 300 400 x 400 35
450 x 450 590 x 590 50
600 x 600 784 x 784 50
600 x 600 784 x 784 100
800 x 800 984 x 984 50
900 x 900 1084 x 1084 50
900 x 600 1074 x 774 100
| SPECIFICATION OF TELECOM MANHOLE COVERS |
| Clear Openning(mm) | Overall Size(mm) | Depth(mm) | Pcs of Lids |
| 590X590 | 745X745 | 160 | 2 |
| 1220X696 | 1374X850 | 160 | 4 |
| 1830X696 | 1984X850 | 160 | 6 |
| 1200X675 | 1350X825 | 100 | 4 |
| 1200X675 | 1350X825 | 150 | 4 |
| 1800X675 | 1950X825 | 100 | 6 |
| 1800X675 | 1950X825 | 150 | 6 |
DOUBLE SEAL SOLID TOP MANHOLE COVERS
| NO | CLASS | c/opening | seal |
|
| mm | s/sord/s |
|
|
|
|
| 1 | B125 | 600x600 | DOUBLE SEALED |
| 2 | D400 | 600x600 | DOUBLE SEALED |
| 3 | B125 | 800x800 | DOUBLE SEALED |
| 4 | D400 | 800x800 | DOUBLE SEALED |
| 5 | B125 | 300x300 | DOUBLE SEALED |
| 6 | B125 | 300x300 | DOUBLE SEALED |
| 7 | B125 | 450x450 | DOUBLE SEALED |
| 8 | C250 | 600x600 | DOUBLE SEALED |
| 9 | D400 | 152X152 | - |
| 10 | D400 | 655X705 | - |
| 11 | D400 | DIA 600 |
|
| 12 | D400 | DIA 900 |
|
| 13 | D400 | DIA750 |
|
| 14 | B125 | 600x900 | DOUBLE SEALED |
| 15 | C250 | 450x450 | DOUBLE SEALED |
| 16 | B125 | 450x450 | DOUBLE SEALED |
Our foundries make grey cast iron(laminate graphite), ductile cast iron castings((spheroid graphite) for municipal construction, pipeline, site furnishing, agriculture, fireplace and machine accessories by jolt squeeze molding machines and manual molding.
We make the follwing castings
A. Municipal castings
A. Manhole covers with frames, gully gratings, linear drainage channel and channel grating (Class A15-F900)
B. Valve box, surface boxes, hydrant box, step iron, roof drain outlet.
Our manhole covers and gully gratings comply with EN 124: 1994, EN1433-2002/AS3996, our ductile iron manhole covers Choice of BSI Kitemark or other EN124 third party accreditation. Our castings are independently tested and batch traceable.
B. Pipeline accessories: Cast iron pipe fitting, coupling, valve handwheel, flanges, valve lid, extension spindle, repair clamps, restraint lugs, coupling end caps and so on.
C. Street and garden furniture: Bollards, tree grill, bench ends, ornamental castings, hose reels for garden
D. Agricultural machinery Spare parts: Cambridge Roll Rings and Breaker Rings, cast iron wheels
E. Power Transmission Components: Cast iron spur gears, cast iron sprockets, cast iron pulley, pulley, cast iron casters/castors,
E. Fireplace Accessories: Fire grate, fire basket, fire dog, fire frets, cast iron stove.
