Hot Sale Five Axis Horizontal Boring and Milling Machine Center

Hot Sale Five Axis Horizontal Boring and Milling Machine Center
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: HBM-130T3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Wight: 26000kg
Rotary Table Dimensions: 1440*1600
Nc System: Fanuc
Process Usage: Metal-Cutting CNC Machine Tools
Movement Method: Contour Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools
Processing Precision: 0.01mm

Product Description

Five Axis Horizontal Boring and Milling Machine Center
High Torque,High Precision,High Rigidity

High Torque
·Spindle motor 37(continuous)/45(30min) KW super power.
·Maximum torque output 2500Nm (260kgf-m),the highest specifications for this class.
·The nose type spindle head can be close to the workpiece,which is suitable for heavy cutting.
·Rotary table can carry 10000-25000kg.
·Z axis can be continuously subjected to the axial load of 2000kgf,to ensure high torque and high speed to provide high speed to provide high cutting force.

High torque gear headstock

High Precision
·Spindle bearing with oil mist lubrication ,surrouding and with the tubing jacket cooling design avoids thermal displacement problems.
·The flange portion of the spindle motor jacket cooling using tubing.
·Spindle with a special nitriding treatment ,used for many years and no wear.
·X/Y-axis rail screw and motor using Derect-drive without backlash mechanism.
·No overhanging phenomenon when the table moves.


High Rigidity
·Casting structure composed of stability,strong vibration resistance and strong senior cast iron with crch-type structure of high rigidity.
·Column resistance to bending ,torsional rigidity enhance 1.7 times,in the uppermost end Y-axis travel can also be stable machining.
·The combination of the nitride,cryogenic(-190ºC) spindle and the high precision,high rigidity spindle bearings ,can play the best long-term performance.



Precision rotary table(double worm)

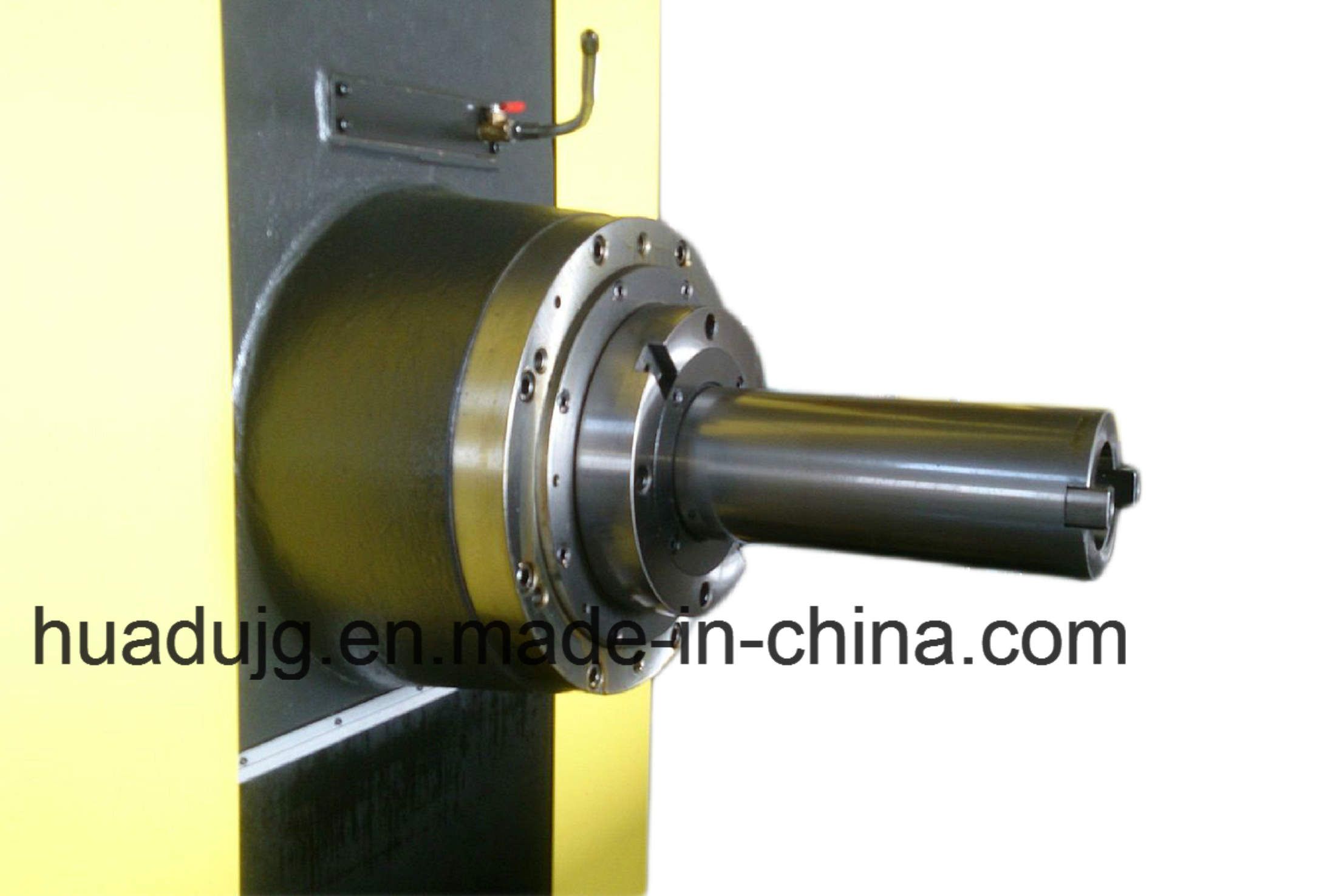

HEAD
Boring axis adopts Germany imported materialSACM-645,after nitrogen treatment hardness up (HS100°±10°), and increase the wear resistance by streching cryogenic (-190ºC)aging treatment; spindle can be extended to 500-700mm long,suitable for deep processing.

COLUMN(Patented Structure)
High quality Meehanite cast iron ,the structure of high stength arch bridge is used in the internalstructure of the column.To increase the rigidity of the column to 27%,two electric furnace failure and vibration failure,to ensure that the seismic and long-term no deformation.

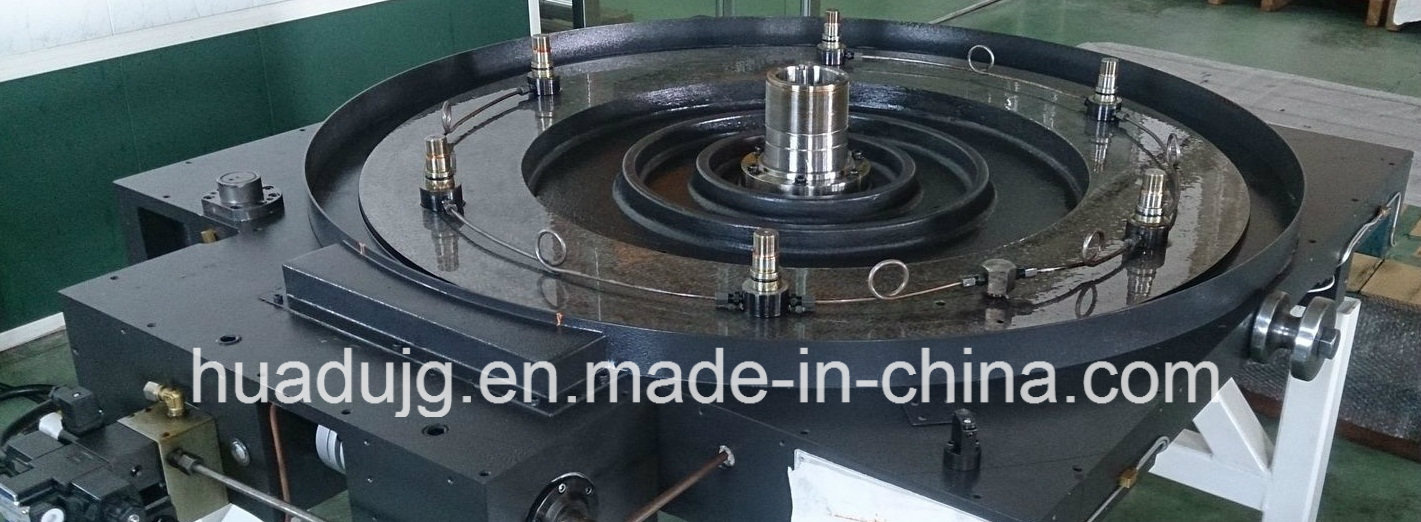

ROTARY TABLE(Patent)
All-area support of hydraulic fracturing design,unique twin-turbo without backlash drive,six columns tightening force at any angle up to 13500kg/cm²,cylinder lock with 90-degree pin alignment.


Specification

HBM-110T2HBM-110T3HBM-130T3
Travel
X/Y/Z Axis Travel2800/1800/1500mm3000/2100/1500mm3000/2100/1500mm
W-axis diameter/peojecting110/500mm110/500mm120/700mm
Spindle center to table0-1800mm0-2100mm0-2100mm
Line Guideway


Table
Worktable size1440mm*1600mm1440mm1600mm1440mm*1600mm
Max.loading of worktable8000kg8000kg8000kg
Degree Minimum division0.001°0.001°0.001°
Spindle
Spindle taper/RivetBT50-45°BT50-45°BT50-45°
Power of spindle motor22/2622/2622/26
The number of revolution and gearFull gear 2500 continuous Variable Speed
Fast Process
X/Y/Z Axis Rapid Feed Rate10000mm/min10000mm/min10000mm/min
B Axis rotation speed1r/min1r/min1r/min
W Axia Rapid Feed Rate4000mm/min4000mm/min4000mm/min
Min.set unit & moving unit0.001mm0.001mm0.001mm
Procesion
Positioning accuracy(JIS)±0.003/300±0.003/300±0.003/300
Repeatability accuracy(JIS)±0.003±0.003±0.003
Tool Magazine
Tool magazine606060
Electric
Standard Control SystemFANUC 0IMDFANUC 0IMDFANUC 0IMD
Feed Motor7,7,7,4,4KW7,7,7,4,4KW7,7,7,4,4KW
Power capacity70KVA70KVA70KVA
Size
Machine Height3800mm4100mm4100mm
Area Covered7500mm*7800mm8500mm*7800mm8500mm*7800mm
Machine Weight26000kg26000kg32000kg

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

"Huadu Precision" is a die set industrial leader, Mr. Xiangbin founded in A. D. 2004, the company partners adhering to the "produce high-end machine tools, strengthen national industry, casting manufacturing powerhouse" as own duty.

Company through joint venture merger overseas brands, with the management idea "integrity and efficient, the value of sharing" and collected dozens of domestic and overseas research and development, sale, mechanical and electrical integration type of elite talent. We committed to manufacture the numerical control machine tools with "steady, accurate, fast, beauty, wisdom""Huadu Precision" has rapidly in some industries developed and into the "Made in China" brand among the forefront of high-end CNC machine tool and the user preferred standards.

Our company invested nearly 500 million yuan($80 million, ), covers about 100 acres, having tens of thousands of square meters of modern factory building. We have imported a batch of ultra-precision industrial machines from Japan and Taiwan; Formation in kunshan Precision and dongguan Precision, as the main body of the two major manufacturing bases;

The main products include: Horizontal boring and milling machining center, dynamic column type precision horizontal machining center, CNC horizontal open box machine, gantry machining center and so on four big series. Products are widely used in automotive, mold, valves, machinery, energy and other industries.

"Huadu Precision": Adhere to the "strictly selected high-quality materials, strict enforcement of craft, strict buy first-class accessories, never cut corners, " the quality policy. Adhere to continuous improvement, constant innovation, obsessed with the details of the "spirit of craftsman", let China's CNC equipment really achieve world-class level.
