| Prod Model: |
JCX32-186-960 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

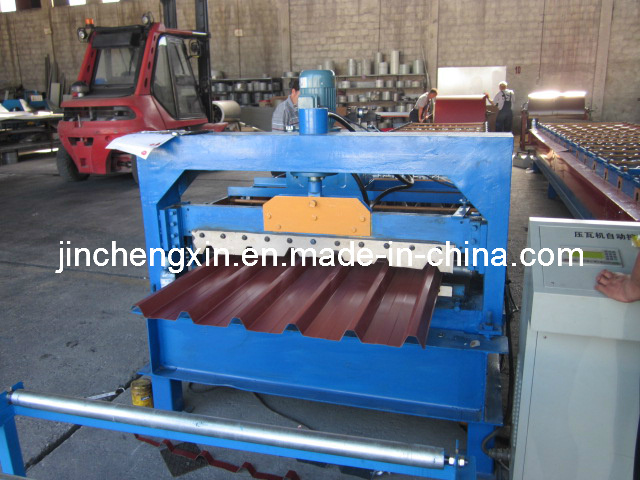

Product Description
IntroducationThis machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
The machine is stable,no noise,no shake
Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
cutting machine is characterized by stable driving, easy operation
hydraulic system use the CDF-10 hydraulic pump, long operating life,no noise
this machine is applies to roof fortification
Manual decoiler
It is passive type could load coil by expend the blots fix at coil inner diameter.It's easy to operate and economical solution.
Guiding device
Adopt guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming system. Can adjust the guiding bar with loosing the fixing bolts to feed sheet in right position. It's fixed structure to make sure can not move easily.
Roll Forming System:
Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No.45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No.45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
(Attention: all rolling system has adjusted in our company as a perfect situation, we don't suggest to adjust the rollers at random, if necessary, should adjust by a experienced technician or after train by our engineer. Otherwise will cause the machine can not form a good profile

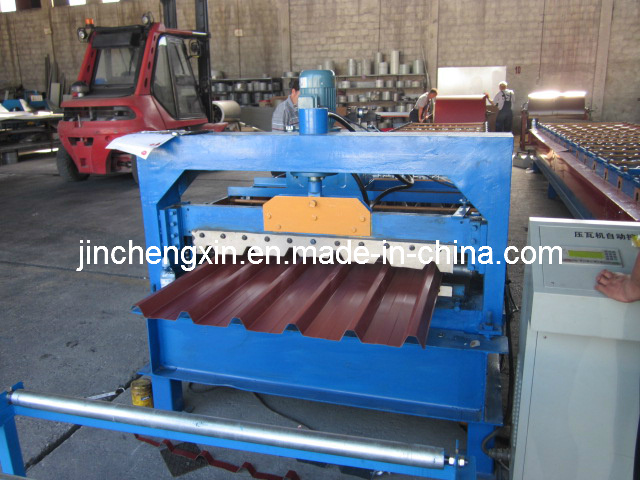

Cutting device
A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is no material wasted.
B. Adopts welded frame for good rigidity.
C. The cutting action is droved by the power from hydraulic station which guarantees the procession of the cutting and low noisy, long life.
Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 3kw
Hydraulic oil :40#
PLC control system
It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Touch screen
PLC is Taiwan Panasonic
Transducer brand is taiwan taida
The seller should provide Chinese and English language screen
Counter
One counter gauges length, pulses, and decides length.

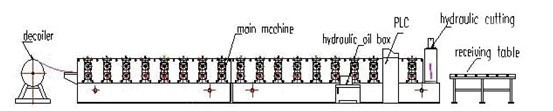

Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter

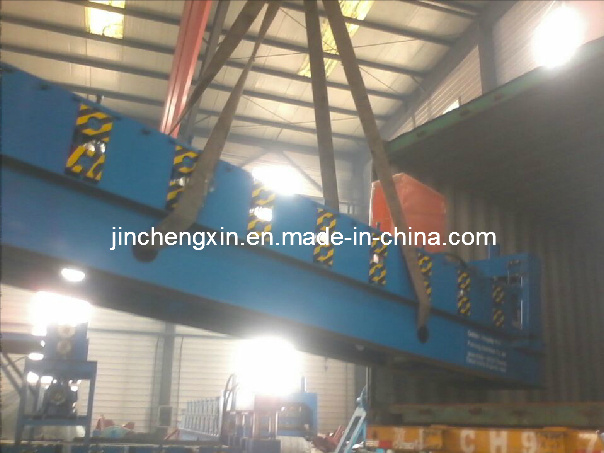

Loading picture
.
|
Suitable to process |
Steel plate |
|
Width of the plate |
1000mm/1200mm/1250mm |
|
Rollers |
11rows |
|
Dimensions |
6.8*1.55*1.51m |
|
Power |
4kw+4kw |
|
Thickness of the plate |
0.3-0.7mm |
|
Productivity |
8-10m/min |
|
Diameter of the roller |
¢70mm |
|
Weight |
About 3.4T |
|
Voltage |
380V 50Hz 3phases |
