Sand Casting Tie Rod Nut

Sand Casting Tie Rod Nut
Price: US $ 0.9-1.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: OEM
Markets: North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Report: SGS
Type: Clay Dry Sand
Application: Formwork System
Surface Treatment: Color Zinc Plating

Product Description

Product description

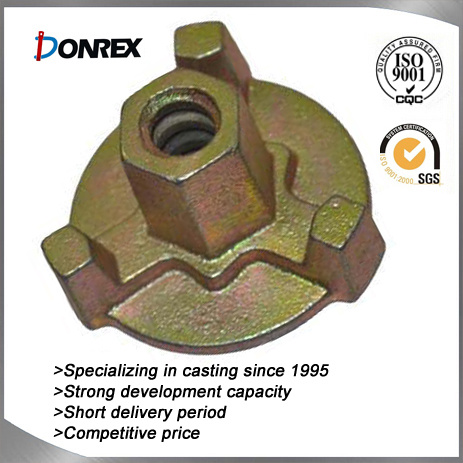

This wing nut is used for construction formwork, which weight is about 0.56Kg, and the size is 80mm, we are professional manufacturer of formwork accessories(tie rod nut), scaffolding accessories, valve parts, auto parts and other casting products.

100% of our products are export to Europe, North America, South America and Australia. Each product  has been examined strictly by our technicians in accordance with EN-74 and BS1139 international system.

Our main production equipment including intermediate frequency electric furnace 2, molding machine 4 sets, shoot core machine 10 sets, repeatedly belt type 4 deoxidization machines, molding sand box number more than 100 tons, drilling, tapping machines, the monthly output can reach more than 800 tons.

OEM capacity
We offer both green sand casting and resin sand casing in both ferrous and non-ferrous materials, the most common green sand casting would be made from either grey iron or ductile iron.
Molding methods range from floor hand molding, jolt squeezer lines and automatic molding lines, with this variety of molding methods we are able to accommodate theweight, size and quantity the customer's requirement.
Please check our material and performance standard for all materials available.

Production capacity
Manufacture process Annual productivityUnit weight of parts
Sand casting 10000 tons0.1-15000 Kg
Investment casting  5000 tons0.005-200 Kg

                                           Materials that can be used in our sand casting process
Gray iron
Standard-Spec.No.&ClassT.S.
σb≥
(N/mm2)
Hardness
HB≤
Note:
(1) Test Bar θ=30mm
(2) Chemieal composition and other requirement can be established upon
      written agreement between manufacturer and purchaser.
(3) The hardness values are for castings of 15~30mm thickness.
GB China/ISOJIS
JAPAN
ASTM
U.S.A.
HT200/200FC200CI.30200223
HT250/250FC250CI.35250241
HT300/300FC300CI.40300262
HT350/350FC350CI.50350277

Ductile iron
Standard-Spec.No&ClassT.S.
σb≥
(N/mm2)
Y.S.
σs≥
(%)
EL
δ≥
For ReferenceNote:
(1) Separately cast test bars machined to φ 14mm from 25mm keel blocks;
(2) Same as above note(2)
GB ChinaJIS JapanASTM A536 U.S.A.Hardness
HB
Micor-structure
QT400-18FCD400-1860-40-1840025018130-180Ferrite(F)
QT450-10FCD450-10
45031010160-210(F)
QT500-7FCD500-765-45-125003207170-230(F)+Pearlite(P)
QT600-3FCD600-380-55-066003703190-270(P)+(F)
QT700-2FCD700-2100-70-037004802225-305(P)
QT800-2FCD800-2100-70-038004803245-335(P)or tempered structure

Carbon steel
Standard-Spec.No.& GradeChemical Composition≤
(%)
Mechanical Properties≥Note:
(1) S,P≤0.04%
(2) C,Mn% can also be agreed upon by manufacturer and purchaser.
(3) Heat Treat: Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry.
GB
China
JIS
Japan
ASTM
U.S.A.
CSiMnT.S. σb
(N/mm2)
Y.S. σs
(N/mm2)
EL
δ%
R.A.
ψ%
ZG200-400SC420A27 60-300.20.50.84002002540
ZG230-450SC45065-350.30.94502302232
ZG270-500SC48070-400.45002701825
ZG340-640SCC3BA148 80-500.60.66402401018

Aluminum-base cast Alloy
Standard-Spec.No.Chemical Composition%ConditionMechanical Properties≥
GB ChinaCode ChinaJIS JapanAlcoa (ASTM)SiCuMgMnTiNiAlT.S.
σb
(N/mm2)
Hardness
(HB)
EL
σ%
ZAISi7MgZL101AC4C356 (SG70A)6.5-7.5
0.25-0.45


Bala nceF T6155-22050-702-1
ZAISi9MgZL104AC4A3608.0-10.5
0.17-0.300.2-0.5

T6220702
ZAISi5Cu1MgZL105AC4D355 (SC51A)4.5-5.51.0-1.50.4-0.6


T6220700.5
ZAISi12Cu11Mg1Ni1ZL109AC8AA13211.0-13.00.5-1.50.8-1.3

0.8-1.5T6240100
ZAICu5MuZL201


4.5-5.3
0.60-1.00.15-0.35
T5330904
ZAIMg5Si1ZL303

0.8-1.3
4.5-5.50.1-0.4

F145551


Note:(1) F-as cast;T5-Solution treat+artifical aging;T6-Solution treat+over aging

Copper-base cast alloy
Standard-Spec.No.Chemical Composition%Mechanical Properties≥
GB ChinaJIS JapanASTM U.S.ASnZnPbSiCuT.S.σb
(N/mm2)
Y.S.
σ%
EL HBWHardness
ZCuSn5Pb5Zn5BC6C836004.0-6.04.0-6.04.0-6.0
Balance200901360
ZCuSn10Zn2BC3C905009.0-11.01.0-3.0

2401201270
ZCuZn16Si4SZBC3C87800
Balance
2.5-4.579.5-81.0390
20100
ZCuZn40Pb2
C85700
0.5-2.5
58.0-63.02201201580

Operating since 1995

Gaomi Hengxin Machinery Technology Co., Ltd. Was established in 2009, but it had an old name and started producing castings since 1995. Now we are one of the leading manufacturing groups offering casting, machining and product assembly services.

Performing with strict quality control

We provide our customers the best engineered solutions, low cost tooling, high quality manufacturing and rapid delivery. We handle all the projects with quality first in mind and under strictly quality control flows through precise inspection and testing equipment and production control system to achieve small, medium and large volume productions. Meanwhile, all the works are based on OEM/ODM, confidentiality and reliability.

Generating over $20 million sales annually

Our buyers hail from more than 30 countries and regions including Europe, North America, South America, the Middle East and Australia. We sell big quantities of high quality products worth more than $20 million annually.

Work with us today

A lot of things may change, but our commitment to professionalism, quality and customer service won't. Contact us today to begin saving time and cost.

Then you'll find our following advantages soon:

1. Twenty years of manufacturing success in China and exporting experience worldwide.

2. Global specialized producer of machined castings and product assemblies.

3. We combine our own resources with some other well-developed factories to fulfill a wide range of contract manufacturing capabilities. Working with one source, saves time and money.

4. Low cost mold materials and focus on efficiency offer a cost-effective solution to your metal component purchasing requirements.

5. Normal lead times range from 1 to 6 weeks for fully-machined components.

6. Strong capacity to help customers develop new projects.

7. Our sales department is 24 hours available in order to help our customers solve problems quickly.
