Sideframe &Bolster for Railway Wagon

Sideframe &Bolster for Railway Wagon
Price: US $ 2399/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: Freight wagon components
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Freight Wagon: Casting Bogie
Steel: AAR Grade B/B+/C
Application: Freight Wagon
Machining: Casting
Material: Steel
Casting Tolerance: ±1~3mm

Product Description

Side fram & Bolster for railway wagon Specifications
we can supply almost all of casting sideframe and bolster for the freight wagon bogie.
Our Certifications and Features are:
1. Got the American "AAR" Certification;
2. Got the Russian Certification;
3. Got the Ukrainen Certification;
4. Using the German "V" modeling technology;

Side frame - one of the main structural elements of the bogie framework of the model 18-100. It is manufactured by casting, with additional machining and riveting of wear-resistant plates. Side frame, drawing No. 100.00.002-4SB, represents a major piece of a freight wagon bogie, which transmits the load on the axle through the axle box. Cast alloy steels 20GFL and 20GL.

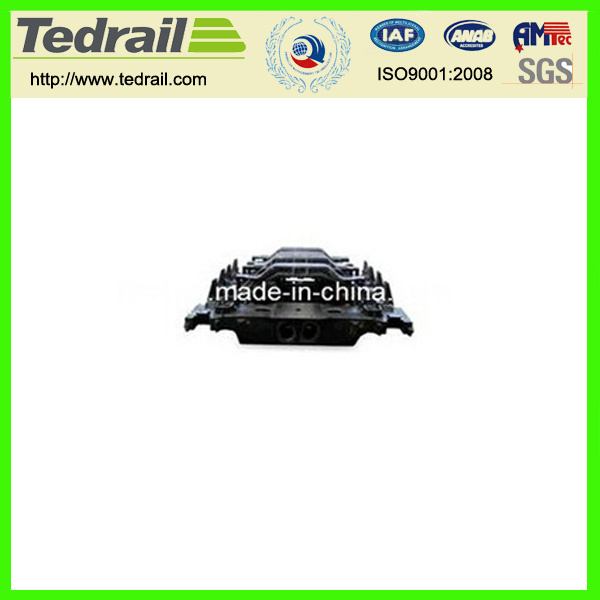

Bolster drawing No. 100.00.001-6 serves as a bridge between the two side frames in the construction of a freight wagon bogie. To ensure reliability and durability the bolster is casted from steel 20GFL or 20GL. One of the main frame details of a bogies framework Model No. 18-100. Set lifetime of a bogie frame before a bolster discarding is 30 years. The designated lifetime up to the first depot repair is 2 years, before the first overhaul is 8 years. Established time to failure is at least 2 years.

Overall dimension:

Side frame: 2.41m*680cm*56cm weight: 400kg

Bolster: 2.61m*39.5cm*47cm weight: 525kg
Tedrail can supply most of railway products, such as Bogie parts, Wagon parts, Coach parts, Locomotive parts based on customers' requirements. We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. With our experienced and educated business team, Cooperated with Chinese railway industrial university, Tedrail has got most valuable technical support and knowledge base.

Tedrail is focused on the complete solution of railway industry, and interested in sharing experience and cooperation with all parties in the world.

Our Team

We have a strong technical team, lots of them have been engaged in the production line for many years, with a more profound experience about production and processing of products.

Our team comprises:

Management Team

Senior Engineer

Engineer

QA Team

Workshop staff

QA Team

We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. We will make sure give customers best design and most reliable and safe products. With our experienced and educated business team, Tedrail give customers easiest and convenient business service.

Our railway industrial products are tested:

1. Chemical Analysis

2. Metallographic

3. Mechanical Analysis

4. Ultrasonic Testing

5. Magnetic Testing

6. Impact Testing

7. Hardness Testing

8. Surface Quality

Customer Satisfaction

For attaining customers' satisfaction, we manufacture and supply superior quality railway products that are cost efficient and highly durable. Our railway products are manufactured by using superior quality raw materials and checked by our quality analysts at every level of production process. Our range of products is widely acknowledged by our customers because of its quality and effectiveness.

Why Us?

We are one of the most promising organizations who have achieved a leading position in this domain due to the following factors:

Rigorous quality control measures

State-of-the-art infrastructure

Ethical business policies

Experienced professionals

Wide distribution network

Team of skilled personnel

On time delivery
