Prod Model: |
OEM |
Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
Report: |
SGS |
Casting Method: |
Thermal Gravity Casting |
Material: |
Cast Steel |
Surface Preparation: |
Sand Blast |
Product Description

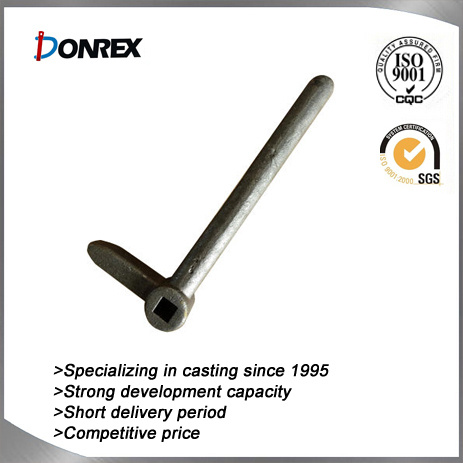

Product description: This is used as accessories for farm machinery, we choose water glass precision casting process as the manufacture process for mass production. This product is made out of ZG16Mn.
Investment casting process describing:

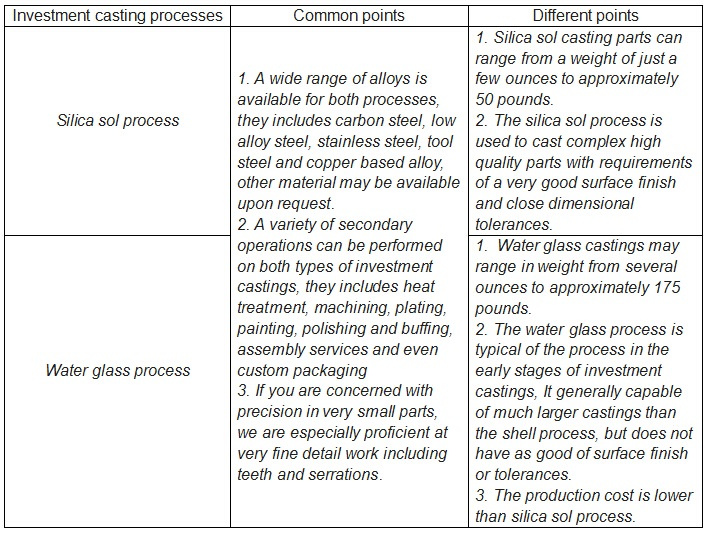

We offer customers two types of investment cast processes
Materials that can be used in our investment casting process:
Standard-Spec.No.& Grade | Chemical Composition≤% | Mechanical Properties≥ | NOTE:(1)S,P≤0.04% (2)C,Mn%can also be agreed upon by manufacturer and purchaser. (3)Heat Treat:Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry |
GB China | JIS Japan | ASTM U.S.A. | C | Si | Mn | T.S. σb N/mm2 | Y.S. σs N/mm2 | EL δ% | R.A. ψ% |
ZG200-400 | SC420 | A27 60-30 | 0.2 | 0.5 | 0.8 | 400 | 200 | 25 | 40 |
ZG230-450 | SC450 | 65-35 | 0.3 | 0.9 | 450 | 230 | 22 | 32 |
ZG270-500 | SC480 | 70-40 | 0.4 | 500 | 270 | 18 | 25 |
ZG340-640 | SCC3B | A148 80-50 | 0.6 | 0.6 | 640 | 240 | 10 | 18 |
Standard-Spec.No | Chemical Composition% | Mechanical Properties≥ |
GB China | JIS Japan | ASTM(AISI) U.S.A. | C | Si | Mn | Cr | Ni | Others | T.S. σb N/mm2 | Y.S. σs N/mm2 | EL σ% |
ZG1Cr13 | SCSI | CA-15(410) | ≤0.15 | ≤1.50 | ≤1.00 | 11.5-14.0 | ≤1.00 | Mo≤0.05 | 620 | 450 | 16 |
ZG0Cr18Ni9 | SCS13 | CF8(304) | ≤0.08 | ≤2.00 | ≤1.50 | 18.0-21.0 | 8.0-11.0 |
| 440 | 185 | 30 |
ZG1Cr18Ni9 | SCS12 | CF20(302) | ≤0.20 | ≤2.00 | ≤1.50 | 18.0-21.0 | 8.0-11.0 |
| 480 | 205 | 28 |
ZG0Cr18Ni12Mo2Ti | SUS316 | CF-8M(316) | ≤0.08 | ≤1.50 | ≤1.50 | 18.0-21.0 | 9.0-12.0 | Mo 2.0-3.0 Ti0.7 | 490 | 216 | 30 |
ZG0Cr17Ni4Cu4Nb | SUS630 | CB-7Cu 17-4PH | ≤0.07 | ≤1.00 | ≤1.00 | 15.5-17.0 | 3.0-5.0 | Cu2.3-3.0 Nb0.14-0.45 | 980 | 785 | 5 |
ZGMN13-3 | SCMnH2 | A128 B-1 | 0.90-1.30 | 0.30-0.80 | 11.0-14.0 |
|
| S≤0.05, P≤0.08 | 686 |
| 35 |
ZG3Cr18Ni25Si2 | SCH19 | A297 HN | 0.20-0.50 | ≤2.00 | ≤2.00 | 19.0-23.0 | 23.0-27.0 | Mo≤0.50 | 435 | 230 | 8 |
ZG4Cr25Ni20Si2 | SCH22 | A351 HK-40 | 0.35-0.45 | ≤1.75 | ≤1.50 | 23.0-27.0 | 19.0-22.0 |
| 450 | 240 | 10 |
Note:S,P≤0.04% except 13%Mn Steel(ZGM13-3) |
Standard-Spec.No. | Chemical Composition% | Mechanical Properties≥ |
GB China | JIS Japan | ASTM U.S.A | Sn | Zn | Pb | Si | Cu | T.S.σb N/mm2 | Y.S. σ% | EL HBW | Hard ness |
ZCuSn5Pb5Zn5 | BC6 | C83600 | 4.0-6.0 | 4.0-6.0 | 4.0-6.0 |
| Balance | 200 | 90 | 13 | 60 |
ZCuSn10Zn2 | BC3 | C90500 | 9.0-11.0 | 1.0-3.0 |
|
| 240 | 120 | 12 | 70 |
ZCuZn16Si4 | SZBC3 | C87800 |
| Balance |
| 2.5-4.5 | 79.5-81.0 | 390 |
| 20 | 100 |
ZCuZn40Pb2 |
| C85700 |
| 0.5-2.5 |
| 58.0-63.0 | 220 | 120 | 15 | 80 |
