Steel-Making Ladle Turret for Continuous Casting

Steel-Making Ladle Turret for Continuous Casting
Price: US $ 50000-80000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: CCM
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Casting Method: Special Casting
Casting Form Material: Metal
Casting Metal: Cast Steel
Casting Form Usage Count: Permanent

Product Description

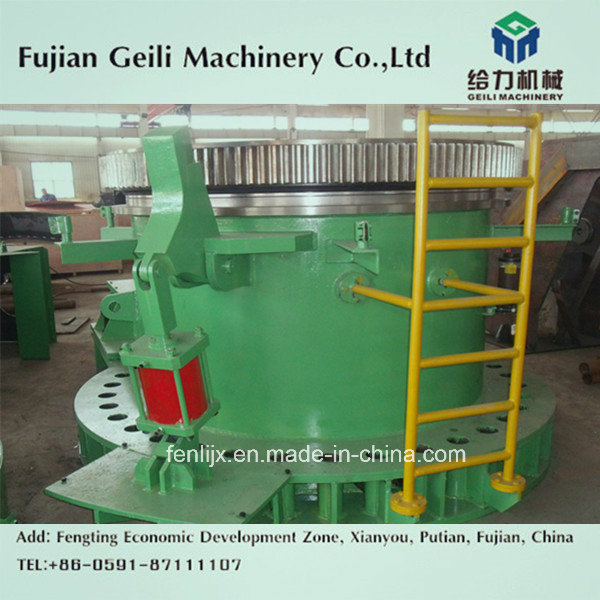

Ladle turret plays the role of move the molten steel from ladle to pouring position. It consist of Rotary arm, rotary bearing, transmission device

Technical Data:

1. Load Capacity: 50-200 ton.

2.  Angle of rotation: 360 degree

3. Rotating speed: 1 rotation/min.

4.  Swing motor capacity: 7.5-15kw


Working Process:

Mechanical part:
1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary coolings spraying frame
9) Secondary coolings spraying pipe
10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling
12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage

Auxiliary system
34) Hydraulic system
35) Discharging device for secondary coolings steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements


FUJIAN FENLI MACHINERY EQUIPMENT CO. Ltd is a professional & reliable manufacturer specializing in rolling mill and continuous casting machine. Our supplying includes designing, manufacturing, selling and installing full sets of equipments of turn-key service and after-sales service.

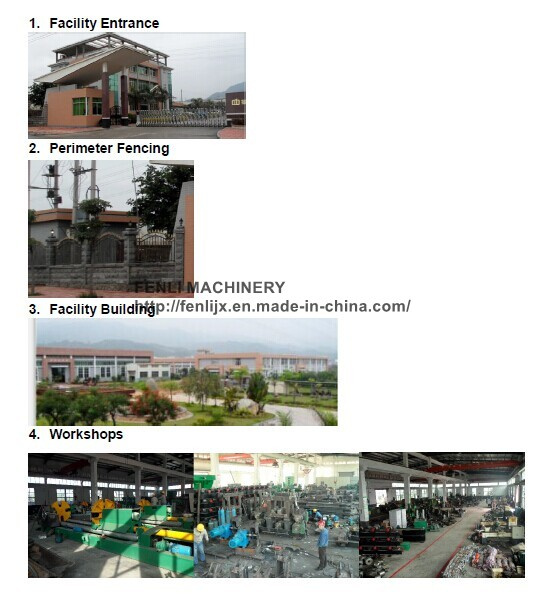

Our factory is located in Fujian, it covers an area of 40000 square meters. We have more than 180 workers, 18 senior engineers, 12 senior technicians, 16 administrative staff. We also have many co-operated manufacturers. The founder of our company has more than 25 years' experience in heavy industry. With modern management, advanced technology, strong designing and superior equipment quality and after-sales service, over the years, we won the domestic and overseas market.

Our main products are various specifications of continuous casting machines, rolling mills, steel-making auxiliary equipments, crystallizer, pull machine, ladle, wire rod packing machine, flying shear, roller, reduction box, pinch roll, dust catcher, dummy bar, cooling bed, etc.

We always keep the principle of " higher quality, professional service, competitive price", sincerely welcome you to come and visit our factory to get more information.
