Vacuum Casting Mold for Phone Case

Vacuum Casting Mold for Phone Case
Price: US $ 100/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: Vacuum Casting
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vacuum Casting Mold: Vacuum Casting
Shaping Mode: Injection Mould
Application: Electronic
Installation: Fixed
Process Combination Type: Platinum Cure Silicone for Tyre Mold Making

Product Description

vacuum casting
Vacuum Casting prototype
Vacuum Casting Prototyping
Vacuum Casting Silicon Moulding
vacuum casting Silicone mold
rapid prototype vacuum casting
Vacuum Casting Suppliers
Vacuum Casting Manufacturers
Silicone mold Vacuum Casting Process
plastic Vacuum Casting
Vacuum casting RTV moulding
Vacuum casting silicone mold Platinum Cure Silicone for Tyre Mold Making

Basic Info.
Model NO.: Vacuum casting silicone mold
Material: Silicone Rubber
Appearance: Liquid
Color: As Request
Export Markets: Global
Additional Info.
Trademark: HongYe silicone rubber
Packing: 20kg/Drum, 200kg/Drum
Standard: RoHS. MSDS. SGS ISO9001: 2000
Origin: Shenzhen China
HS Code: 39100000
Production Capacity: 8 Tons Per Day
Product Description

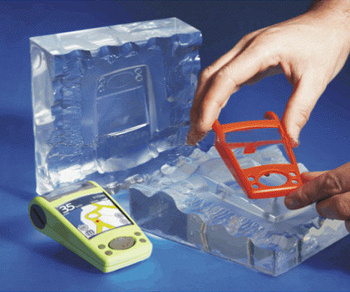

Platinum cure Silicone For Tyre Mold making

Description of Addition cure silicone for tyre Mold making
HY- E series addition molding silicone is generally named two-components silicone
Rubber, Part A and part B. It features an exceptional fluidity and good operability.
The mixing ratio is 1: 1 (10: 1), mainly be suitable for making molds application.

Typical Applications of Platinum cure silicone for tyre mold making
HY- E series addition molding silicone could be mainly used for making concrete
Stones, wax molds, PU molds, resin molds, gypsum casting, candle molding and
Chocolate, candy and any other FDA food product mold making, prototyping etc.
HY-E620 Silicone Rubberis has been used for years to make tire pattern molds.

Characteristics of Platinum cure silicone for tyre mold making

*low shrinkage (less than 0.1% )
*high tensile and tear strength with high copy times
*easy for operation (mixing ratio at 1: 1 /10: 1)
*very good flow and easy for pouring operation
*Fast and non-shrink cure at room temperature which can be accelerated considerably by the application of heat

Operation instruction of HY-E620 Platinum cure silicone for tyre mold making

1. Pls clear the model and tool totally before operation to prevent cure inhibition.
2. Weigh the two part correctly by electronic weight in two separate container.
3. Mixing the two part in 1: 1/10: 1 and stir part A and part B evenly in 2-3 minutes.
4. And get the mixture for vacuum-pumping for de-air the bubble in around 2-3
Minutes. (If there is no vacuum machine, pls pour the mixture carefully and slowly
Down the side of the mold frame so that less bubbles caused)
5. Enclose the product (the original model) with four plastic plates or wooden plates.
6. Clean your products and brush a layer of release agent(detergent or soap water) on
Your product.
7. Pour the vacuumed mixture into the model frame from the side of the mold frame.



Notice of Platinum cure silicone for tyre mold making

As our E-series silicone is platinum cure silicone, which is very easy to cause
Cure inhibition, so pls do remember thoroughly clean the model and tool before
Operation. Besides, pls avoid the liquid E-series silicone contact or mix with the
Following material, otherwise the silicone won't be cured:
1. Liquid condensation silicone ( condensation silicone not completely cured or organic
Tin compounds )
2. Sulphur, sulfide and sulfur rubber materials.
3. Amine compounds as well as contains the amine materials.
4. Pewter solder flux.


SHELF LIFE of Platinum cure silicone for tyre mold making:
8-10 months when stored under 24° C in original unopened packages.

PACKAGE:
If ratio is 1: 1: Packed in 20kg/pail + 20kg/pail and 200kg/pail + 200kg/pail.
If ratio is 10: 1: Packed in 20kg/pail + 2kg/pail and 200kg/pail + 20kg/pail.
Model HY-E620#
Appearance Translucent
Mixing Ratio 1:1
Operating time (Mins 25°C) 20-30
Curing time (Mins 25°C) 2-3h
Hardness (A°)  20±2
Density ( g/cm 3 ) 1.08
Viscosity (CS)  6000 ± 2000
Tensile-strength( kgf /cm2 ) 25 ± 2
Tear-strength (kgf /cm2 ) 20
Elongation-break(%) 380 ± 50
Retractility(%) ≤0.1

Yuyao Xianghao Mold Technology Company Limited is founded in 2001, is an integrated manufacturing company, specializing in development, design, manufacture of rapid prototype, plastic injection mould, Die-Casting Die, moulding products, as well as finished products assembly which applicantion for Household appliances, kitchenware, transportation tool, digital & telecommunication products, toys, custom products, auto parts, etc. The company is located in YuYao Mold City, zhejiang province of China which is close to Shanghai& HangZhou airport, it is very convenient to transportation.

In the past, we updated ourselves to the International Standard and granted an ISO 9001-2000 certificate. Sticking to "Customer First, Science & Technology First ". Droow-Mold adopts the TQM system focused on customer's projects constantly improve the technical process so as to strictly supervise and control the whole process from the initial design to manufacture which has further ensured the high quality products.

Thanks to the excellent teamwork spirit of darrow Mold staff and great support of customer, the company annually turns out 600-900 standard top quality set of moulds. About 70% of moulds are exported to Europe, USA, Australia, Russia and other countries which mainly used in Auto parts, Home appliances, Household products, Computer hardware, Medical Enclosures, Communication parts, Consumer electronics, Office supplies etc. We have built straight or indirect business relationship with many famous companies like Honda, Volvo, Peugeot Audi, Renault, VALEO, HP, PHILIPS, CASIO, RICOH, KINPO, ARRK and TANITA etc.

Darrow Mold has a group of experienced designer, engineer and technician. High quality standard, competitive price, on time delivery, and responsible after-sales service are the principle that we follow to develop the mutual trust and confidence with our domestic and international clients.

We believe in darrow-Mold will to be the top in the word by the advanced management concept and experienced workmanship, & with the concept of "quality and technology is the soul of products", we sincerely hope to create prosperous business hand in hand with global customers.
