Y28-200/315 Hydraulic Sheet Metal Press Machine 200ton

Y28-200/315 Hydraulic Sheet Metal Press Machine 200ton
Price: US $ 15000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: Y28-200/315
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design: Unique Design
Forging Forming Method: Mold Forging

Product Description

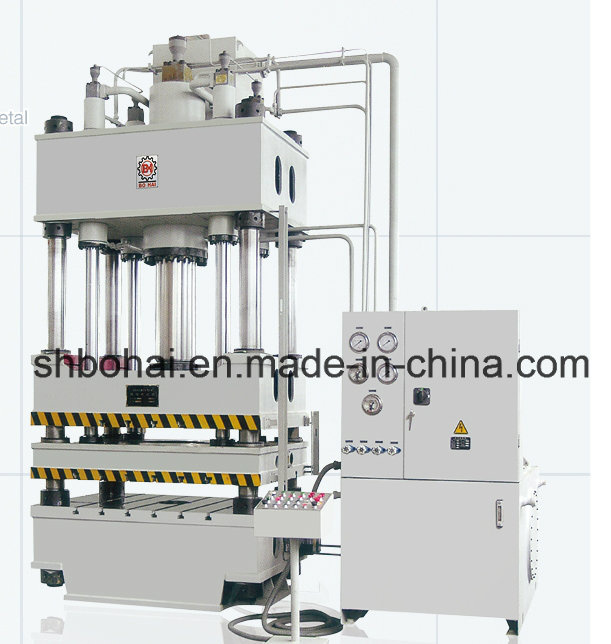

Y28 Double-Action Hydraulic Drawing Press




(1)Features of Y28 Double-Action Hydraulic Drawing Press :

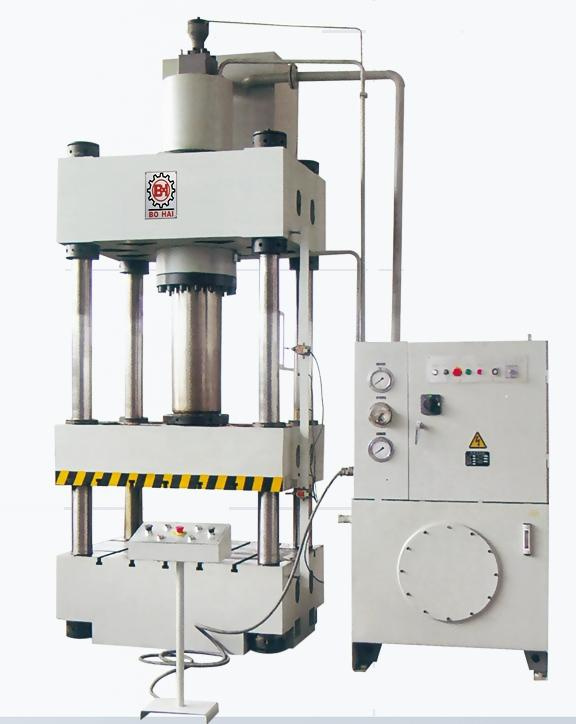

1.Computer Optimized Design, 3-beam&4-column structure or Gantry-Style structure
2.Gantry-style structure with high rigidity; Four-column structure with simple, economic and practical working
3.Drawing and Blankholder Slider be linked, Reach to Single action process
4.Safety protection system with mechanic, electric and hydraulic interlock, such as Oil cylinder cavity supporting loop,
   Cylinder cavity interlocking circuit with high safety and reliability
5.Control system based on PLC, sensitivity, reliability and flexibility

(2)Applications of Y28 Double-Action Hydraulic Drawing Press :
Suitable for all deep drawing process, especially in the following fields:
1.Pressure Vessel, Drawing and forming for barrel and head cap

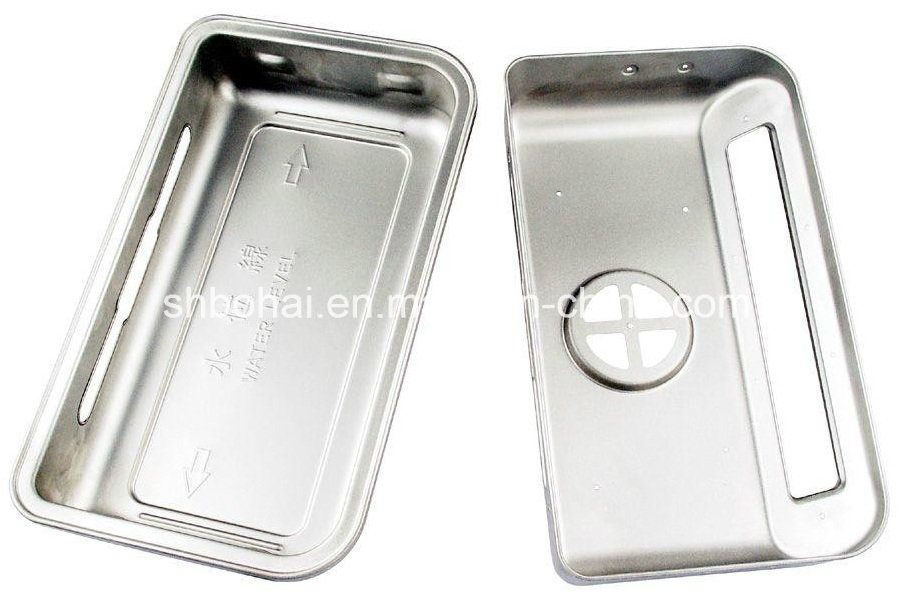

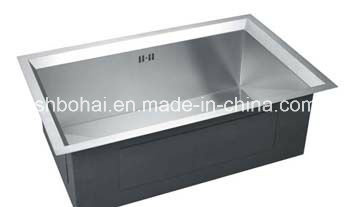

2.Deep drawing for Stainless steel sink
3.Drawing for long work piece, like bath
4.Drawing and Forming for Big automobile panel and parts

(3)Optional configuration of Y28 Double-Action Hydraulic Drawing Press
a.Proportional regulation for slide speed and force;
b.Proportional regulation for cushion force;
c.Light curtain safety device;
d.Oil heating/cooling unit;
e.Industry touching screen monitor;
f.Displacement sensor;
g.Floating guide-way and rolling bracket for die exchange;
h.non-recycling column slide device;
i.Working area lighting;Power Socket

(4)Technical Specification of Y28 Double-Action Hydraulic Drawing Press



ItemUnit     TypeY28-
100/150
Y28-
100/180
Y28-
200/300
Y28-
400/600
Y28-
500/800
Slider Drawing ForcekN10001000200040003150/5000
Slide Blank Holder ForcekN500860100020003000
Ejecting Force of EjectorkN3503503005301000
Knock-out Force of Tensile SliderkN2502504708001100
Knock-out Force of Blankholder SliderkN
300300630850
Centre drilling size of Blankholder slidermmφ330φ380φ500800*8002400*1400
The MAX.Operating Pressure of LiquidMPa2525252525
The MAX.Distance from Tensile Slider to Working tablemm10001365153021901600
The MAX.Distance from Blankholder Slider to Working tablemm50080080013001600
The MAX. Stroke of Tensile Slidermm6306307108001000
The MAX. Stroke of Blankholder Slidermm2003503507201000
The Stroke of Ejection Cylindermm///600350
Active Size of Tensile SliderLeft-Rightmm6306309007002300
Front-Backmm6306309007001400

Shanghai Bohai Machinery Manufacturing Co., Ltd., which was founded in 1989, is designated as a National High-tech enterprise.

It is one of the best and edest CNC plate processing manufacturer in China, it is also awarded the title of "China Top Brand", and Its products have been popular sold in China and Oversea for many years. It also passed ISO9001 Quality System Certificate and CE Certificate.

The headquarter of the Company is sited in Qianqiao Economic zone, Fengxian District, Shanghai City.

Now, the Company is staffed with 100 employees, among them there are 6 senior engineers, 5 technicians.

The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

The people at Bohai have a long solid history of producing the most advanced machine tools in the business. They bring years of experience to the operation, and can make sure that the machine leaving the factory lives up to the highest expectations.

As the parent company, The company has 2 subsidiary companies under its control, namly, Shanghai Wanjiao Machine Tools Manufacture Co., Ltd, Maanshan Huayu Machine Tools Co., Ltd.

The Group Company is dedicated to the research and development, production and sales of plate processing machine including shearing, bending, rolling, etc., which are widely used in airspace, automobiles, metal works and various other fields, and have been exported to dozens of countries and regions in Europe, America and Southeast Asia.

Please enjoy our website and feel free to look over our great machines. We hope you will join the satisfied customers who own BOHAI machine, because we know you are our future.
