| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, ISO |
| Machine Color: |
Made-to-Order |
| Brand Name: |
Zhongyuan |
| Place Of Origin: |
Hangzhou, China (Mainland) |
| Motor Power: |
5.5X2kw |
| Electric Condition: |
380V/3phase/ 50Hz |
| Operation Language: |
English or as Per Client`S Required |
| Capacity: |
10ton |
| Suitable Material Width (Max. ): |
1250mm |
| Coil Cat: |
for Option |
| Type: |
Steel Uncoil |
| Forging Forming Method: |
Decoiler |
Product Description

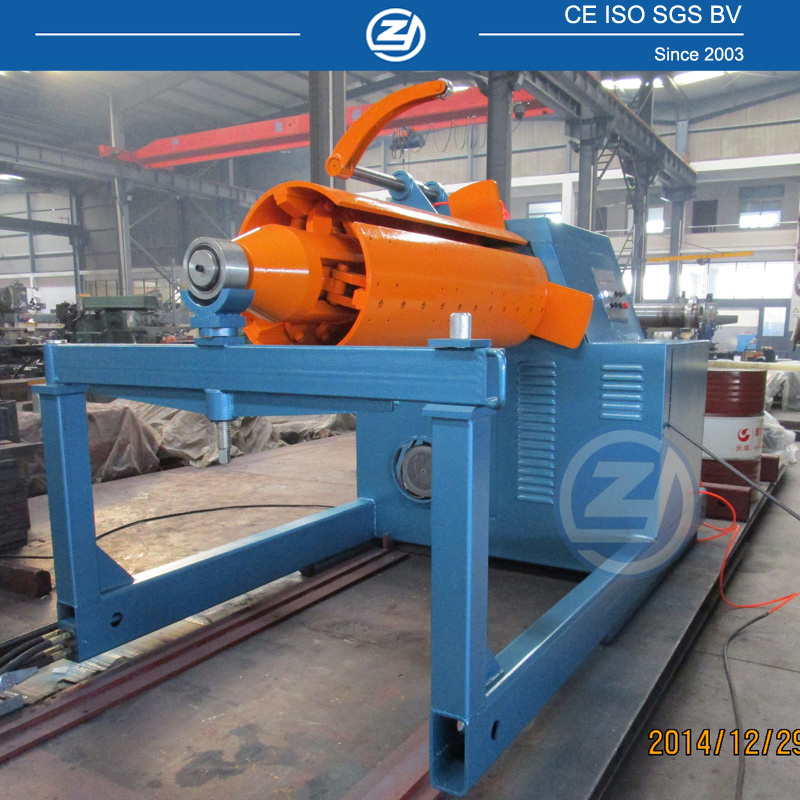

10 Ton Hydraulic Decoiler
10Ton Hydraulic Uncoiler
5T and 10T automatical hydraulic decoiler can be choosed here, coil car can be choosed.
Why choose this decoiler?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.12 months warranty, 24 hours service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC & transducer from Japan.
Decoiler Technical Parameters:
1. Max loading capacity 10T (maximum 5 Ton for option)
2. Suitable coil ID φ 508mm
3. Suitable material width (max. ) 1250mm
4. Suitable coil OD (max. ) φ 1000mm
5. Press arm yes
6. Motor power 5.5Kw X 2
7. Electric condition 380V/3Phase/ 50Hz
8. Decoiling type motor driving
9. Separate converter and screen yes
10. Coil car for option
| Power | 5.5x2 KW |
| Voltage | AC380V/50Hz |
| Weight | 2000kg |
| Loading capacity | 10 ton (maximum 5 Ton for option) |
| size | 4000mm*1400mm*1200mm |
| Suitable coil ID: | 508mm |
| Suitable material width (max.) | 1250mm |
About us
1. Customize roll forming machines since 2003.
2. CE, ISO certificate by SGS.
3. Mitsubishi PLC controller and transducer from Japan
4. 12moths warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: in only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 20 countries
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
