Standing Seam Roll Forming Machine

Standing Seam Roll Forming Machine
Price: US $ 20000-40000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYYX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Size: About 8*1.3*1.5m
Machine Color: Made-to-Order
Certifications: ISO,CE,Soncap
Main Power: 5.5kw
Delivery Time: About 50days
Operation Language: English or as Per Client`S Required
Guarantee Time: First Year Free, Lifetime Services
Controlling System: Mitsubishi PLC & Converter
Cutting Type: Cut to Length
Cutter Material: Cr12 Mould Steel Being Quenched Treatment
Forging Forming Method: Cold Roll Forming

Product Description

Standing Seam Roll Forming Machine


Product Feature:

The product from roll forming machine looks beautiful and widely used as the roof of garden, factory, hotel, exhibition center, etc


Machines components:
Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.

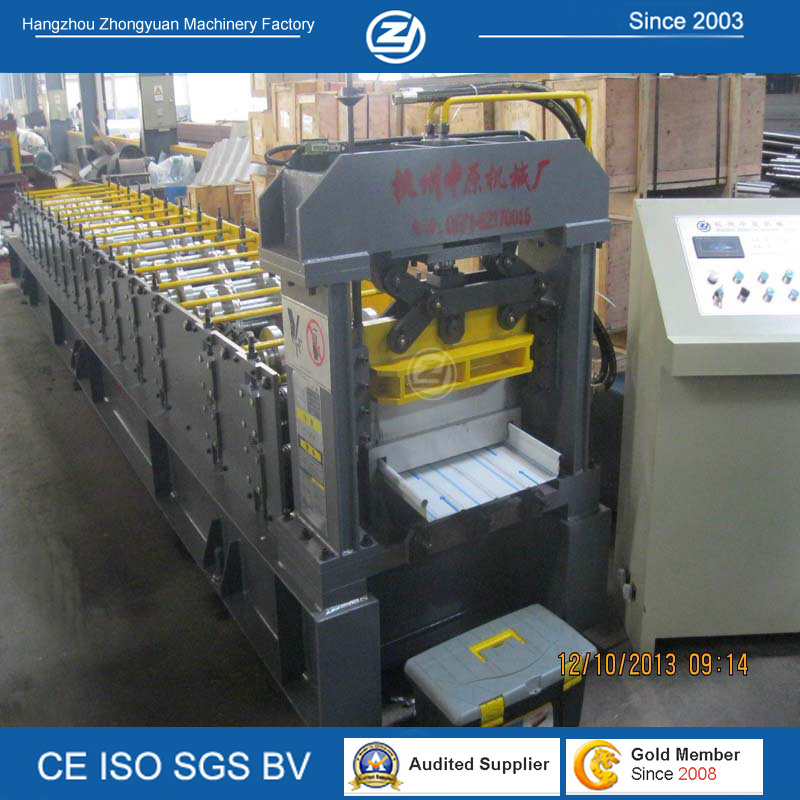

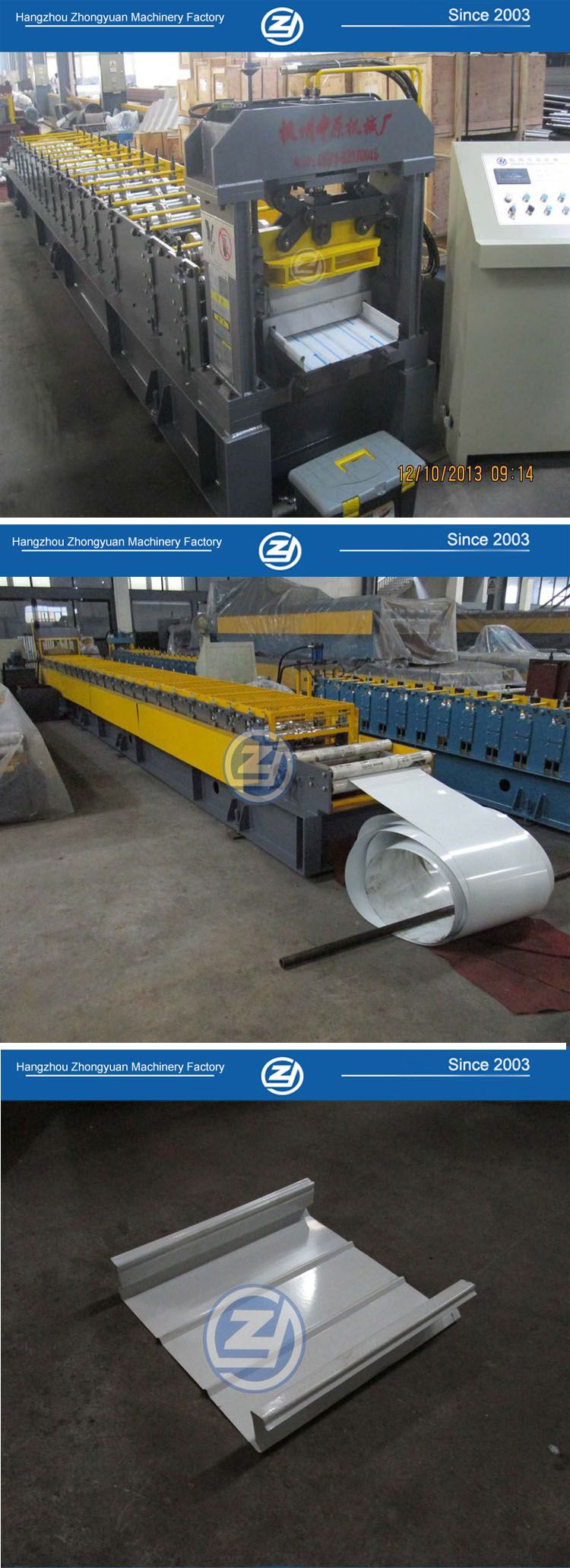

Machine view

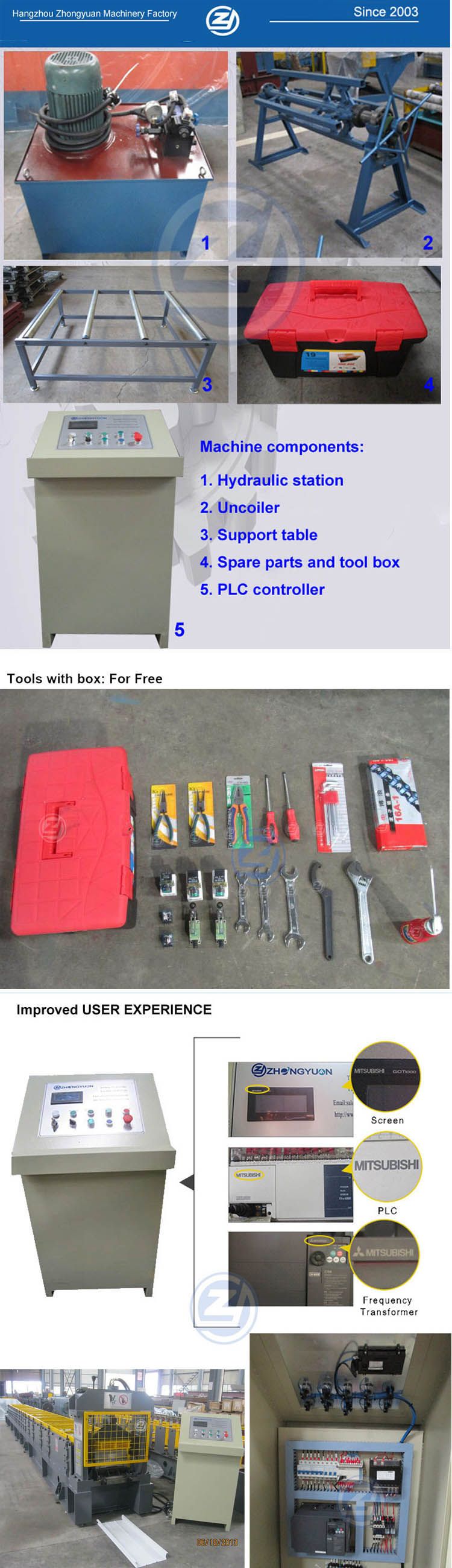

Machine components & control system


Main technical parameters:

Suitable materialAluminium sheet; 0.4-0.6mm,
Forming speedabout 15m/min
Power RequirementMain motor power: 7.5 Kw(Depend on final design)
Hydraulic station power: 2.2Kw(Depend on final design)
Material of forming rollersNo.45 steel, plated with chrome on sureface.
Material of cutter Cr12 mould steel with quench treatment, HRC58-60
Material of shaftHigh quality 45# steel with heat treatment.
Roller grinder milling.
Shaft diameter72mm
Controlling systemMitsubishi PLC & converter
Total weight of machineAbout 6500KGS
Machine install sizeabout 15m×1.8m× 1.5m (Depend on final design)

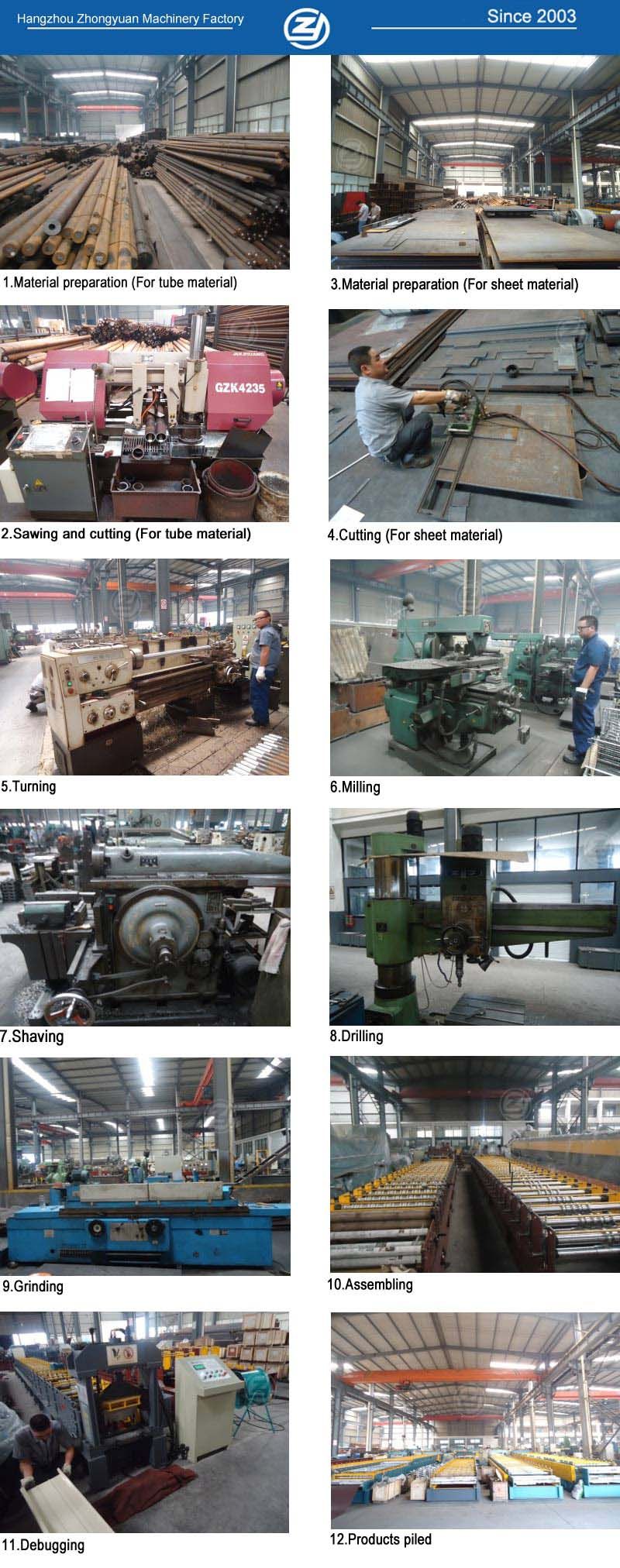

Produce process

About us
1. Customize roll forming machines since 2003.
2. CE, ISO certificate by SGS.
3. Mitsubishi PLC controller and transducer from Japan
4.12moths warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 20 countries
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
