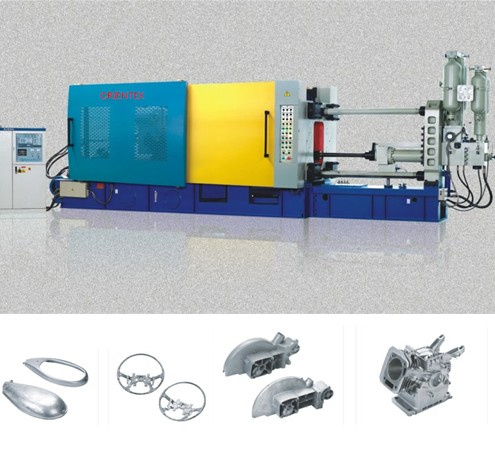

| Prod Model: |
OTD-C1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Locking Force: |
10000kn |
Product Description
Main specifications and parameters
Die locking force
10000 KN
Space between tie bars
1030*1030 MM
Tie bar diameter
Φ？200 MM
Die thickness(Min-Max)
450~1150 MM
Locking stroke
880 MM
Ejection stroke
200？MM
Ejection force
500 KN
Injection force
865 KN
Injection position
0 , -300 MM
Plunger diameter
90 MM
110 MM
110 MM
120 MM
Injection weight
9.9？KG
14.8 KG
12？KG
17.5 KG
Casting pressure (Intensifg.)
136 Mpa
91 Mpa
110？Mpa
76 Mpa
Casting area
735？CM2 1098？CM2
909？CM2
1315？CM2
Max.Casting area (40Mpa)
2500？CM2
Plunger penetration
300？MM
Casting flange diameter
Φ240 MM
Height of pressure chamber flange
20 MM
Injection stroke
800 MM
Dry cycle
16？S
System working pressure
14 Mpa
Motor power
45？KW
Oil tank capacity
1900 L
Machine weight
70000 KG
Machine dimensions(L*W*H)
10.6*3.5*3.8 M
Mold Size
