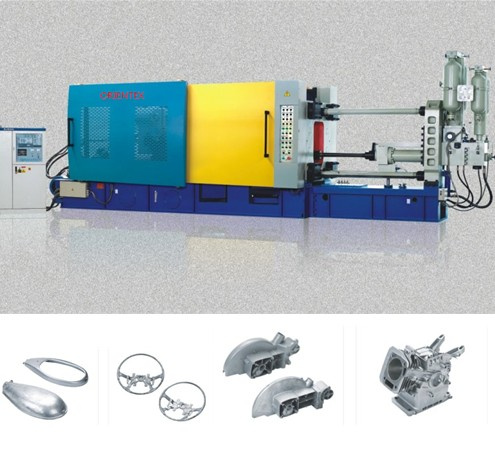

| Prod Model: |
OTD-C450 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Locking Force: |
4500kn |
Product Description
Main specifications and parameters
Die locking force
4500 KN
Space between tie bars
660*660 MM
Tie bar diameter
Φ 130 MM
Die thickness(Min-Max)
300~750 MM
Locking stroke
550 MM
Ejection stroke
125？MM
Ejection force
200 KN
Injection force
450 KN
Injection position
0 , -200 MM
Plunger diameter
60 MM
70 MM
80 MM
Injection weight
2.8？KG
3.8？KG
5.0？KG
Casting pressure (Intensifg.)
159 Mpa
116？Mpa
89？Mpa
Casting area
283？CM2
387？CM2
505？CM2
Max.Casting area (40Mpa)
1125？CM2
Plunger penetration
220 MM
Casting flange diameter
Φ130 MM
Height of pressure chamber flange
15？MM
Injection stroke
540 MM
Dry cycle
10？S
System working pressure
14 Mpa
Motor power
22？KW
Oil tank capacity
850 L
Machine weight
19000 KG
Machine dimensions(L*W*H)
7.1*1.8*2.95 M
MOLD SIZE:
Orientex Engineering Co., Ltd is a powerful group integrates four branches together and each branch and subsidiary supports each other in the other side of the field. Generally introduction is Luxury Yacht, Jet ski, Power ski, Gokart, Jet boat Paper Pulp Molding Production Line, Die Casting Machine and some other machines relate to food, metal and plastic.
There are 8 branches located in Jiangsu Province, Shangdong Province, Zhejiang Province and Hunan Province, covers an area of 800000 square meters, with 120 engineers and 600 workers around these factories. Besides, we cooperate with Sijin Machinery, Sunbird and some other famous enterprises in China. We offer spare parts or we appoint projects building or producing together with these famous enterprises.
Orientex Engineering Co., Ltd also has an offshore account in UK, but we are running in China, our enterprise is always focusing on high technology running and helping customers building a satisfactory plant in local places. We grow our enterprise with our sincerity and based on strong high technology. We locate in China, we are in the orient, we hope to stands in the world with our right, trust and credity always. We are going to run a 100 years in the long term! !
Orientex are focusing on Luxury Yachts, Speed Yachts, Die Casting Machines, Pulp Molding Machines, Steel drum Making Machines, food processing machines and some other related machines. From 2006 until now, Orientex Engineering working with many machinery companies in China. And have the design together with our technicians, Orientex now are also supported by many machinery factories in China domestic. Together with its own manufacturing capacity and exporting experience, we serve customers to build a profitable running plant and factory design. Www. Orientextech. COM.
