| Prod Model: |
MDY100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Operated Hydraulic Press: |
30ton ~ 80ton Hydraulic Press |
| Forging Forming Method: |
Mold Forging |
| Power Source: |
Hydraulic Pressure |
| Advantage: |
Use Widely |
Product Description

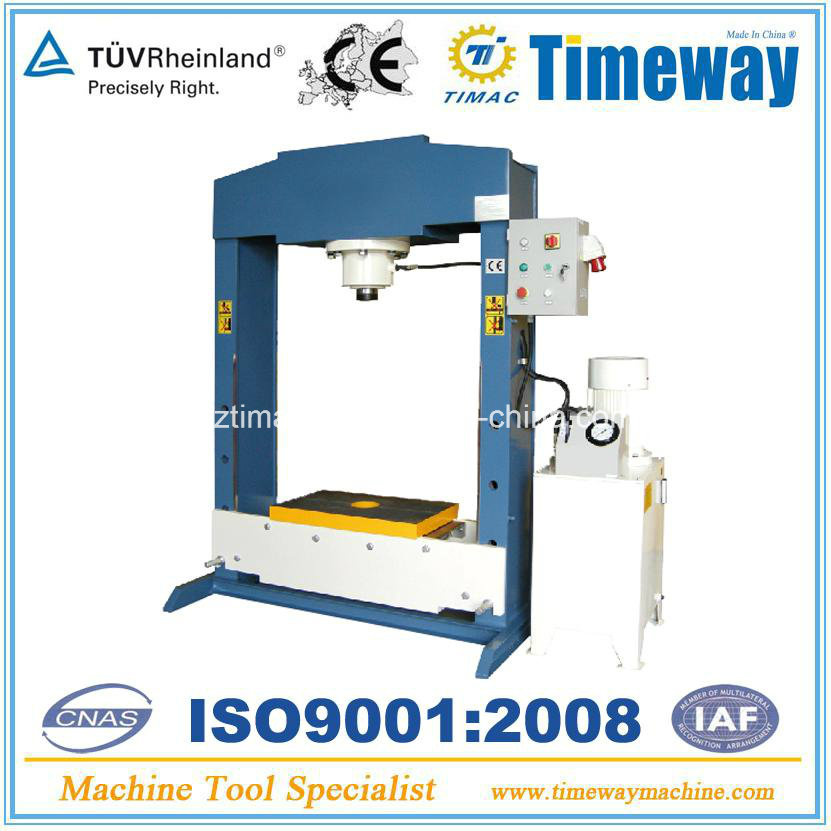

Power Operated Hydraulic Press
Features:
1. Optimally designed steel-frame structure, is sturdy and durable.
2. Single piston double-acting hydraulic oil cylinder, is durable.
3. Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible.
4. Beam of work platform moves lifting device from up to down, is convenient and easy.
| Specification | Unit | MDY30 | MDY50 | MDY63 | MDY80 | MDY100 | MDY150 |
| Max. pressure | KN | 300 | 500 | 630 | 800 | 1000 | 1500 |
| Hydraulic pressure | Mpa | 25 | 30 | 30 | 30 | 30 | 30 |
| Stroke of cylinder rod | mm | 250 | 250 | 300 | 300 | 350 | 350 |
| Working speed | mm/s | 5/h6 | 4/h5 | 5.8/h7.7 | 4.6/h6.1 | 7.6/h10.5 | 4.9/h6.7 |
| Size of worktable | mm | 500x320/innner hole φ100 | 500x350/inner hole φ120 | 600x385/inner hole φ120 | 640x395/inner hole φ130 | 650x440/inner hole φ150 | 700x530/inner hole φ120 |
| Adjustment distance of worktable | mmxn | 200x4 | 230x3 | 250x3 | 250x3 | 250x3 | 300x2 |
| Motor power | kw | 1.5 | 2.2 | 4 | 4 | 7.5 | 7.5 |
| Machine length (A) | mm | 1310 | 1440 | 1570 | 1730 | 1425 | 1502 |
| Machine width (B) | mm | 700 | 800 | 900 | 950 | 1000 | 1070 |
| Machine height (C) | mm | 1885 | 1965 | 2050 | 2070 | 2210 | 2210 |
| Max. distance between two frames (D) | mm | 700 | 800 | 900 | 1050 | 1050 | 1100 |
| Max. distance between piston to worktable (E) | mm | 1040 | 1075 | 1015 | 965 | 1040 | 965 |
| Max. distance from worktable to floor (I) | mm | 302 | 336 | 404 | 404 | 515 | 553 |
| Pump station | mm | 500x310 | 500x310 | 500x310 | 500x310 | 580x440 | 580x440 |
| Weight | kg | 410 | 560 | 860 | 1040 | 1410 | 1830 |
