| Prod Model: |

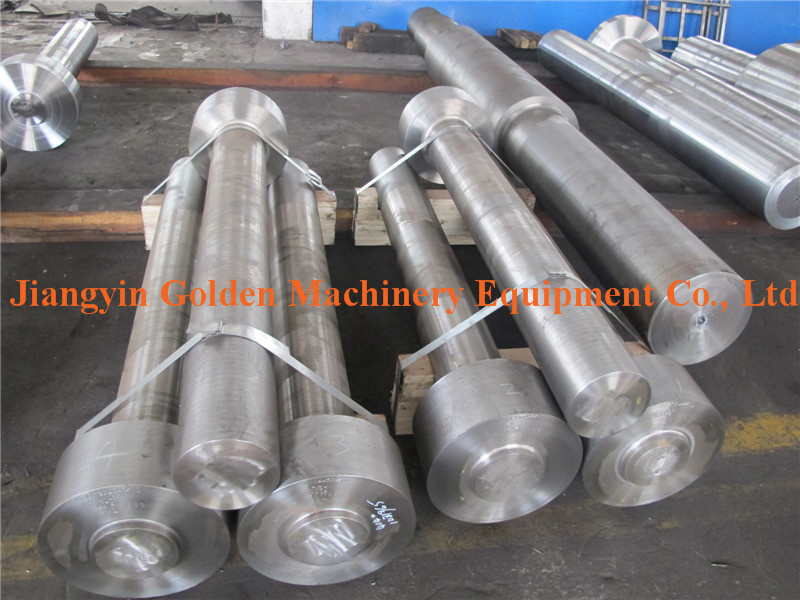

4140 alloy forging Shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Coating: |
Oil Protected |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description
1. Standard: JIS ANSI DIN EN GB
2. Processing: 1045/4140 Raw material inspection stock cuttingheatforgingHeat treatment (Normalizing+ tempering) Inspectionrough machiningUT 2ND Heat treatmentfinishing machiningInspectionpackaging
3. Material: Stainless steel, carbon steel and alloy steel
4. Weight: 500kg to 50000kg
5. Forged process: Hot forged N or Q+T
6. Tolerance: +/-0.1mm
7. Min order: 1 PCS
8. Payment Terms: T/T or L/C
9. Delivery time: 1 PCS(normal size) needs 30 days
10. Certificate: ISO9001: 2008, PED, SGS.
11. Application: Mechanical engineering mechanical part
| Shape | Diameter(m) | Length(m) |
| Shaft | ≤2.5 | ≤15 |
| Block | ≤4.0 | / |
| Ring | ≤4.9 | ≤3.5 |
| Cylinder | ≤1.5 | ≤8.0
|
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
