| Prod Model: |
Z957K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1year |
| Couler: |
as Customer's Demand |
| Type: |
Precoated Sand |
| Casting Method: |
Hot Metal Ladle |
| Sand Core Type: |
Precoated Sand |
| Application: |
Metal Casting |
| Machining: |
Shoot Core Machine |
| Material: |
Iron Copper Aluminum Steel |
Product Description

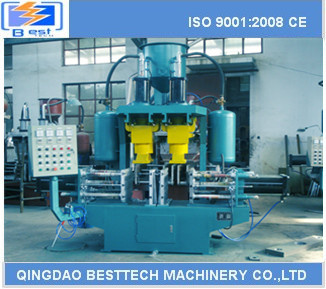

Besttech Z95 Series Core Shooter
Shoot core machine is a manufacturer of resin sand core business equipment, is through the special sand bucket by compressed gas into the mold cavity injection core sand, sand core is heated rapidly curing.
Features:
Meet the shell mold and shell core needs.
Use PLC programming control
Adjustable technics parameters
Adopt permanent baffle board
Specification:
Model |
Z955K |
Z956K |
Z957K |
Z958K |
Max Dimensions of mold board(mm) |
550X400 |
650X400 |
750*580 |
850*600 |
Cover half thickness(mm) |
150 |
180 |
180 |
200 |
Movable mold mini thickness(mm) |
200 |
200 |
200 |
250 |
Compound die process (mm) |
400 |
400 |
400 |
400 |
Max sand core weight(kg) |
20 |
20 |
25 |
30 |
Sand hopper capacity(kg) |
200 |
200 |
250 |
250 |
Heating mode |
Electric heating |
Electric heating |
Electric heating
|
Electric heating
|
Electric heating power(kw) |
25 |
30 |
40 |
50 |
System pressure(Mpa) |
0.55-0.7 |
0.55-0.7 |
0.55-0.7 |
0.55-0.7 |
Operation mode |
Manual/auto |
Manual /auto |
Manual /auto
|
Manual /auto |
Our service
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
