| Prod Model: |
PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Free Initial Installation at Home and Abroad |
| Spare Parts: |
for Whole Using Life |
| Test&Installation: |
Professional Engineer Assigned |
| Export Markets: |
Global |
| Type: |
Ball Mill |
| Motor Type: |
AC Motor |
| Condition: |
New |
Product Description
Shanghai Dingbo company can provide you various kinds of Grinding Mill, such as the Rough Grinding Mill, Grinding Mill, . Especially our European Version of Rough Grinding Mill is the unique equipment in China. We can recommend you the suitable model of grinding mill.
Product description:
European version of rough grinding mill is widely used in metallurgy, mining, chemical, cement, coal, dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation. It is mainly suitable for crushing compression strength not higher than 320 MPa of various soft and hard ore.
Product features:
1. Different kinds of crusher to choose, hammer crusher, jaw crusher, impact crusher, cone crusher, etc.
2. High capcity, high crushing ratio, 3-300 t/h.
3. Uniform particle size, simple structure
4. Low investment, easy operation and maintenance.
5. applied to industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics
6. can crush hard and soft ores into medium or small size, such as barite, limestone, gypsum, terrazzo, coal, slag, and up to 100 different kinds.
Structure and working principle:

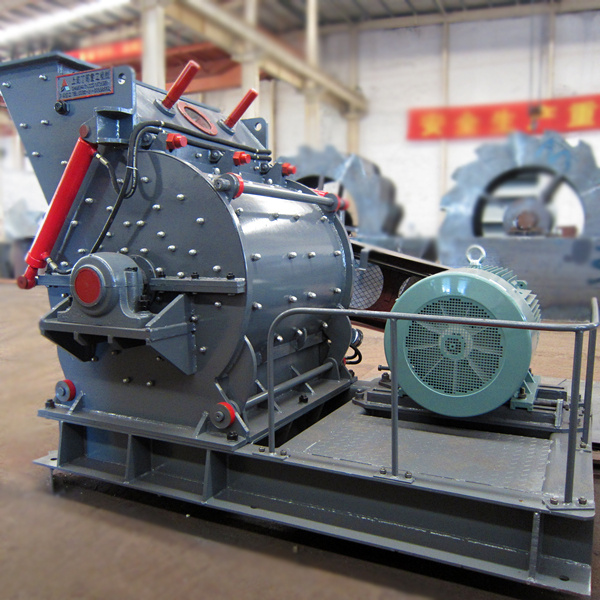

The european version is mainly by coarse grinding casting, rotor, bearing the hammer and the bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of wom; Its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, v-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed broken by passing the material under.
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor diameter /mm | 750 | 900 | 1150 |
| Rotor length/ mm | 800 | 1200 | 1500 |
| Rotor speed? r/min | 800-1000 | 800-1000 | 550-800 |
| Feed head size/mm | 320× 930 | 400× 1200 | 500× 1500 |
| Max feed size/mm | < 50 | < 50 | < 100 |
| Fineness/mm | 0-3 | 0-3 | 0-8 |
| Processing? t/h | 10-30 | 30-60 | 60-100 |
| Motor Power/Kw | 55-75 | 75-90 | 110-132 |
| The number of hammer | 18 | 32 | 32 |
| Dimensions L*W*H/mm | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
