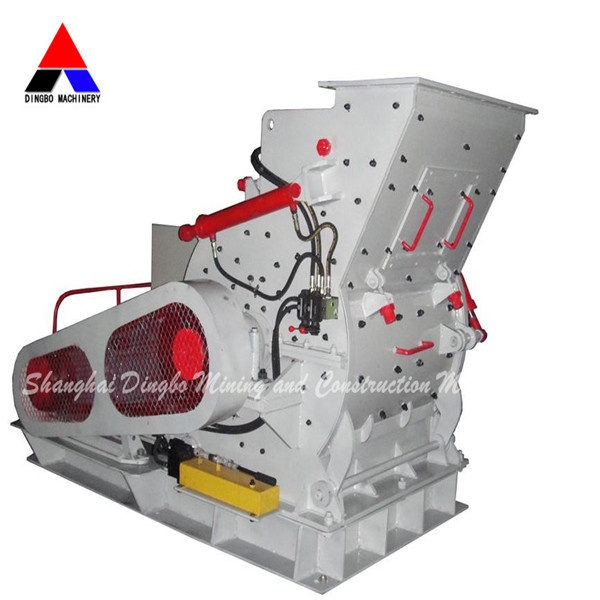

High Capacity Mining Pulverizing Mill

Prod Model:	PC SERIES
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Mining Object:	Stones, Rock and Other Minerals
Installation:	Free Initial Installation at Home and Abroad
After Sales Service:	Maintenance and Replacement Service for One Year
Export Markets:	South America, Southeast Asia, Africa, Oceania, Mi
Motor Type:	AC Motor
Condition:	New
Type:	Ore Grinder

Product Description

Pulverizing Mill
Pulverizing mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness scale under six.
It can grind more than 100 kinds of materials, such as calcite, chalk, limestone, dolomite, kaolin, gypsum, talc and so on.
Product name: Grinding Mill, Grinder, Coarse Grinding Mill, Rough Grinding Mill, Grinding Mill of Rough Powder, Grinding Mill of Coarse Powder.
Shanghai Dingbo company can provide you various kinds of Grinding Mill, such as the Rough Grinding Mill, Grinding Mill, . Especially our European Version of Rough Grinding Mill is the unique equipment in China. We can recommend you the suitable model of grinding mill.
Product description:
European version of rough grinding mill is widely used in metallurgy, mining, chemical, cement, coal, dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation. It is mainly suitable for crushing compression strength not higher than 320 MPa of various soft and hard ore.
Product features:
The production capacity, high crushing ratio.
Low power consumption, uniform particle size;
Mechanical structure is simple, compact and lightweight.
Lower investment costs, management and convenient.
Structure and working principle:
The European version is mainly by coarse grinding casting, rotor, bearing the hammer and the bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of wom; Its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, v-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed broken by passing the material under.

Model	PC4008-75	PC4012-90	PC4015-132
Rotor diameter /mm	750	900	1150
Rotor length/ mm	800	1200	1500
Rotor speed? r/min	800-1000	800-1000	550-800
Feed head size/mm	320× 930	400× 1200	500× 1500
Max feed size/mm	< 50	< 50	< 100
Fineness/mm	0-3	0-3	0-8
Processing? t/h	10-30	30-60	60-100
Motor Power/Kw	55-75	75-90	110-132
The number of hammer	18	32	32
Dimensions L*W*H/mm	2310*1665*1610	2840*2100*2020	3720*2650*2540
