| Prod Model: |
STSC12, STSC14, ATSC12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mould Size: |
9", 12", 14" |
Product Description

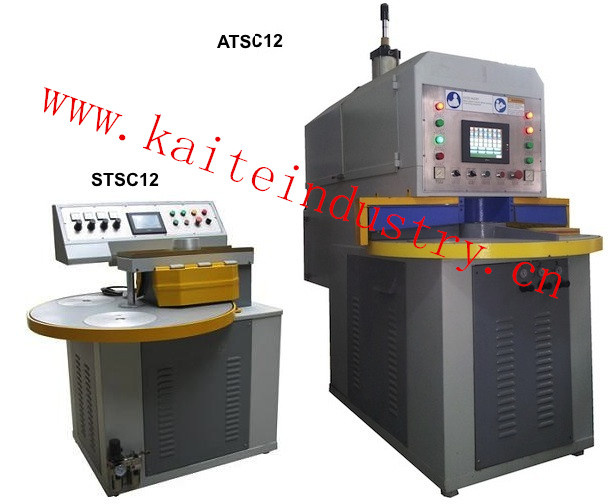

1/. Semi-Automatic 3-Stataion Centrifugal Casting Machine
STSC12, STSC14
Application:
It is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy, tin alloy, other metals, wax, or resin. Production output up to 200 casting operations per hour.
Features
Welded Steel structure
Precious Index rotary table, speed adjustable.
Independent mould camping pressure system with independent pressure regulator and pressure gauge
Variable frequency drive adjust centrifugal speed and indexing speed from 0-1400 rpm
Safety protection of the centrifugal area.
Fan Forced mould cooling.
Touch Screen control panel Digital setting and display all functions, centrifugal speed and timer.
PLC setting and controlling all cycle functions.
Automatically diagnoses whether the rubber mold is placed or not.
Built-in fan forced cooling rubber mold improved working life of the mold.
Easy operated and maintained
2/. Automatic Tri-station Centrifugal Casting Machine, ATSC12
It is used to produce castings such as buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from low melting zinc alloy, tin alloy or pewter alloy in the rubber mold. Production output up to 240 casting operations per hour.
Features:
Compact design, spin casting and metal melting furnace integrated together.
Tri-station for high efficiency.
Precious Index rotary table, speed adjustable.
Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
Variable frequency drive adjusts centrifugal speed from 0-1400 rpm
Specially designed heated casting channel controlled by thermostat reduces the operation temperature of the metal and extend the working life of the channel.
Safety protection of the centrifugal area.
Touch screen control panel digital displays and sets all functions, speed, time and temperatures etc.
PLC setting and controlling all production cycles, time, speed, rotary direction, temperatures, etc. Programmer and store of the setting for each mold.
Automatically diagnoses whether the rubber mold is placed or not.
Built-in fan forced cooling rubber mold improved working life of the mold.
Easy operated and maintained
|
Semi-auto 3-station spin casting machine |
STSC12 |
STSC14 |
|
Rubber mold dia. max |
12" |
14" |
|
Rubber mold thickness |
0-100mm |
|
Pressure |
0-7KG |
|
Centrifugal motor |
1.5kw |
|
Centrifugal speed |
50-1400rpm |
|
Indexing motor |
0.75KW |
|
INdexing speed |
50-1400rpm |
|
Automatic 3-station spin casting machine |
ATSC12 |
Station |
3 |
Mold dia. max |
12" |
Mold Thickness |
0-120mm |
Pressure |
0-7KG |
Centrifugal motor |
1.5KW |
Centrifugal speed |
50-1400rpm |
Indexing table motor |
0.75KW |
Indexing speed |
50-1400rpm |
Furnace loading |
120kg (zinc alloy) |
Furnace |
9KW |
Casting channel |
5KW |
Option |
Platform |
