| Prod Model: |
do based on your detailed requirement |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Tile Forming Machine |
| Tile Type: |
Colored Glaze Steel |
| Use: |
Ridge Cap Steel |
| Transportation System: |
Chain Transportation |
| Control System: |
PLC Control |
| Certification: |
CE and ISO Certification |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

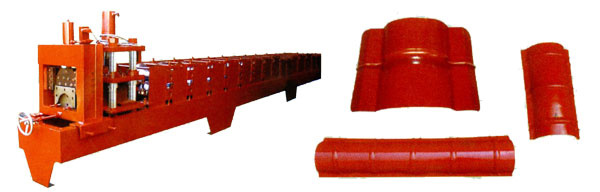

Roof ridge cap forming machine
1. It has good features such as low noise, easy operate
2. Reasonable price and high quality
Thickness of the plate: 0.3-0.6mm
Productivity: 0-3m/min
Diameter of the roller: Φ 70mm
Voltage: 380V 50Hz 3phases
Rolling material: Forging Steel 45# adjustable treatment.
No. |
main parameter of glazed tile forming machine |
1 |
Suitable to process |
Color steel plate, galvanized sheet |
2 |
Width of the plate |
500mm |
3 |
Rollers |
11-13rows |
4 |
Dimentions |
6.5*0.8*1.2m |
5 |
Main motor power |
3kw |
6 |
Hydraulic unit power |
3kw |
7 |
Thickness of the plate |
0.3-0.6mm |
8 |
Productivity |
0-3m/min |
9 |
Diameter of the roller |
Φ 70mm |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Rolling material |
Forging Steel 45# adjustable treatment |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
