| Prod Model: |
Trapezoidal roll forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
You Can Choose |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic |
| Type: |
Building Machine |
Product Description

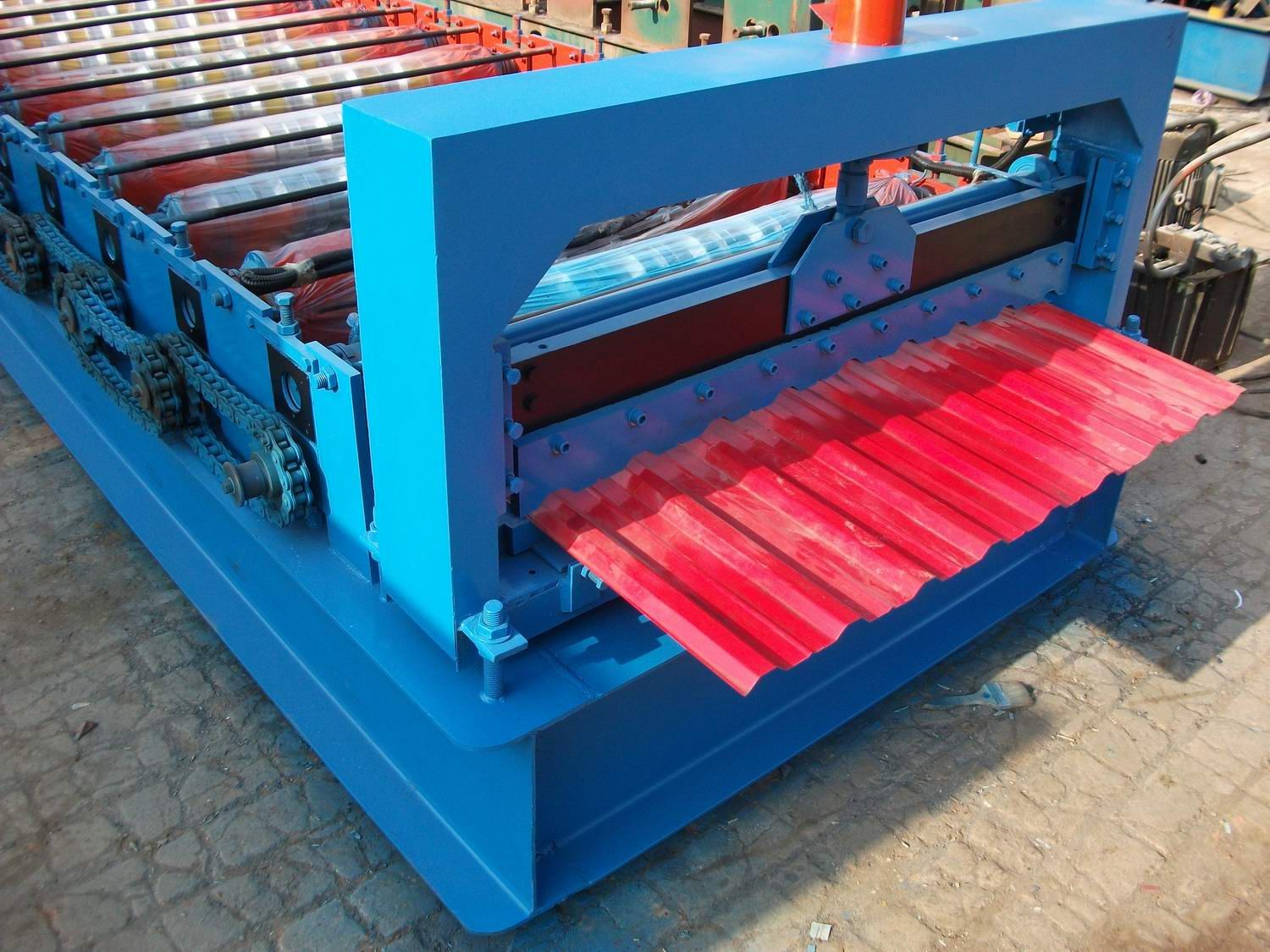

Trapezoidal Sheet Aluminum Roll Forming Machine for Roof Panel
Main parameters
No. Main parameter of roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 1200mm
3 Rollers 14 rows
4 Dimensions 6.0*1.3*1.2m
5 Main power 4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Diameter of the roller Φ 70mm
9 Weight About 3.5T
10 Voltage 380V 50Hz 3phases
11 Material of the cutting plate Gr12
Made board 12mm
|
Material of blade |
Cr12, heat treatment 60-62Degrees Celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is EURA
The seller should provide Chinese and English language screen. |
