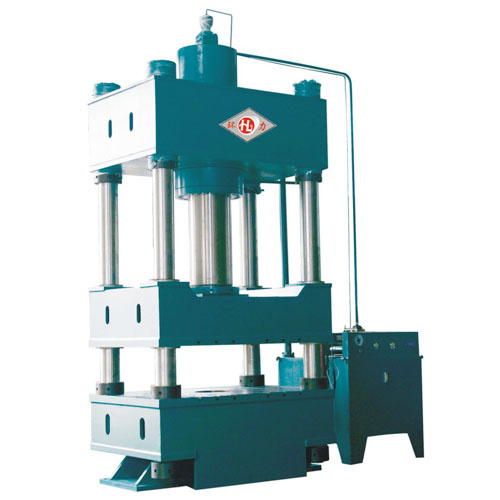

Prod Model: |
Y32-Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
Product Description
Two electrical control systems: Relay control & PLC control
Three operational approaches: Adjustment, manual & semi-automatic
Fixed stroke forming process or fixed pressure forming process
Delayed pressure-holding function & Automatic return function
The operating pressure&stroke range can be adjusted subject to requirements.
Push-out device can also reverse-draw workpieces.
Type | Unit | YTD32-40 | YTD32- 100 | YTD32- 200 | YTD32- 315 | YTD32- 500 | YTD32- 800 | YTD32- 1250 | YTD32- 2000 |
Nominal Pressure | KN | 400 | 1000 | 2000 | 3150 | 5000 | 8000 | 12500 | 20000 |
Return Force | KN | 180 | 320 | 450 | 630 | 1000 | 1600 | 2000 | 4000 |
Push-out Force | KN | 100 | 190 | 350 | 630 | 1000 | 1000 | 2000 | 2500 |
Max. Working Hydraulic Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max. Slide Distance | mm | 450 | 600 | 700 | 800 | 900 | 600 | 900 | 800 |
Max.Push-out Piston Distance | mm | 150 | 200 | 250 | 250 | 350 | 450 | 300 | 150 |
Max.Distance Between Stroke&Working Table | mm | 700 | 900 | 1100 | 1250 | 1500 | 1200 | 1400 | 1400 |
Slide Speed | Empty | mm/s | 50 | 22 | 100 | 100 | 100 | 80 | 80 | 60 |
Work | mm/s | 10 | 14 | 12 | 10 | 10 | 8 | 6-10 | 2-6 |
Return | mm/s | 52 | 47 | 60 | 60 | 80 | 50 | 45 | 50 |
Push-out Speed | Push-out | mm/s | 95 | 70 | 65 | 55 | 80 | 60 | 60 | 70 |
Return | mm/s | 120 | 140 | 95 | 110 | 160 | 120 | 80 | 100 |
Effect-ive Table Size | Left Right | mm | 460 | 720 | 1000 | 1250 | 1400 | 1500 | 1700 | 6000 |
Front Back | mm | 460 | 580 | 900 | 1120 | 1400 | 1400 | 1400 | 1000 |
Dimension | Left Right | mm | 1385 | 2160 | 2825 | 3200 | 4060 | 4800 | 5250 | 6000 |
Front Back | mm | 920 | 1504 | 2060 | 2100 | 3525 | 2200 | 3800 | 2200 |
Motor Power | KW | 5.5 | 7.5 | 15 | 22 | 30 | 45 | 75.5 | 90 |
Weight | KG | 2000 | 4500 | 12000 | 15000 | 24000 | 38000 | 52000 | 90000 |
NANJING HUANLI HEAVY INDUSTRY MACHINERY Co., Ltd. is an innovative member enterprise of China Machine Tool&Tool Builders' Association. With a professional and technical team, we offer the finest in Plate Rolling Machine, Plate Shearing Machine, Press Brake(Plate Bending Machine), Hydraulic Press Machine, Leveling Machine and Related Production Line, which can be designed and manufactured according to the requirements of our customer. Each HUANLI machine features the same outstanding quality which has become a HUANLI tradition. Our customer base is as diverse as our products that are distributed to more than 30 countries and regions. This combined sense of quality and integrity has made Huanli the innovator in the field of metal fabrication equipment.
