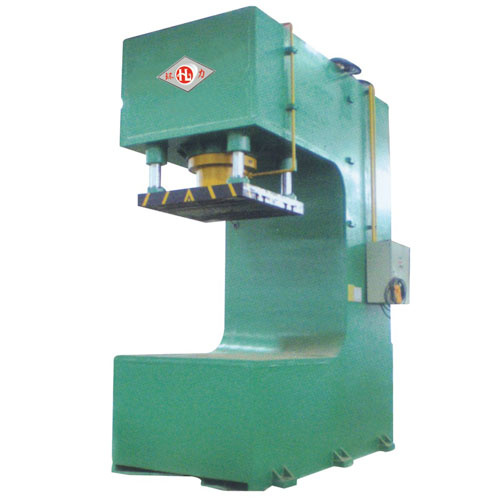

| Prod Model: |
Y41C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
Product Description
Several processing methods are available to users, such as single or continuous processing.
Fixed stroke forming process or fixed pressure forming process
Able to bear unbalanced loading with good rigidity&reasonable construction
Optimized by the computer&electrically controlled by cut-out
Equipped with displacement or pressure transducer&electro-hydraulic proportional valve
CNC operating system developed by our own company
Suitable to bend, shape&turnup central loading components
Applicable to punching&blanking with buffering device
| | Unit | 200T | 250T | 315T | 400T | 500T | 1500T |
| Nominal Pressure | KN | 2000 | 2500 | 3150 | 4000 | 5000 | 15000 |
| Max.Working Pressure | Mpa | 25 | 26 | 25 | 25 | 25 | 25 |
| Max. Dist. Between Slide&Table | mm | 900 | 900 | 900 | 900 | 900 | 1000 |
| Max. Slide Distance | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Slide Downward Speed | mm | 18 | 23 | 23 | 23 | 23 | 18 |
| Slide Return Speed | mm | 55 | 55 | 55 | 55 | 55 | 50 |
| Throat Depth | mm | 380 | 380 | 400 | 400 | 450 | 500 |
| Table Size | Front Back | mm | 700 | 700 | 750 | 750 | 750 | 800 |
| Left Right | mm | 900 | 900 | 900 | 900 | 900 | 1000 |
| Dist. between Table&Floor | mm | 750 | 800 | 850 | 900 | 900 | 900 |
| Motor Power | Kw | 15 | 15 | 15 | 22 | 22 | 45 |
