| Markets: |
North America,Mid East,Western Europe |
| Od: |
6'~28'(Inch) |
| Length: |
Max 9m |
| Type: |
Intergral Straight or Spiral |
| Connection Type: |
Drill String or Nearbit |
| Blade: |
Normal 3~4blades9or as Customer Request) |
| Hardfacing: |
Hf1000~3000 (Normal Hf3000 Tungsten Carbide Brick) |
| Application: |
Well Usage |
| Alloy Steel: |
Yes |
| OEM: |
Yes |
| Structure: |
Deep Hole Drilling |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Hole Diameter: |
>200mm |
| Precision: |
Precision |
| Condition: |
New |
| Certification: |
API, ISO 9001 |
| Material: |
AISI 4145h Mod |
Product Description

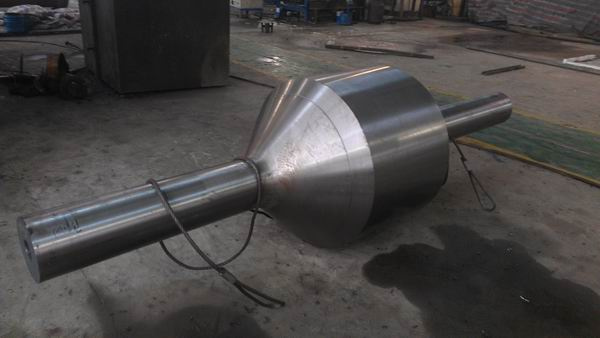

1. oilfield downhole drilling tools stabilizer forging
2. non-magnetic steel or 4145H MOD materials
3.Type: drill string or nearbit
Details:
-Type:Drill string or near bit
-Straight or spiral
-Material: a solid bar of 4145H MOD steel or Non-magnetic steel
-OD:6'~28'(inch)
-Length:max 9m
-Blade: normal 3~4blades( as customer request)
-Hardfacing: HF1000~3000 optional
-Standard: API spec 7-1(Or as your technology requiment)
-Process type:Forging
-Process:EAF+LF+VD+(ESR)+Forged+Heat treatment(optional)
-Surface finish: Black,Peel,Turned,Polished
-Delivery condition: Hor forged,Heat treatment,Roungh machining
Specifications:
Working OD | Fishing Neck OD | ID | OverAll | Connection Type |
| (in) | (in) | (in) | Length | String type | Near bit type |
|
|
| (in) | Top | Down | Top | Down |
| 6 | 4 3/4 | 2 | 47 1/4 | NC38 | NC38 | 3 1/2"REG |
| 6 1/4 | 4 3/4 | 2 | 47 1/4 | NC38 | NC38 | 3 1/2"REG |
| 6 1/2 | 4 3/4 | 2 | 47 1/4 | NC38 | NC38 | 3 1/2"REG |
| 7 1/2 | 6 1/4 | 2 1/4 | 63 | NC46 | NC46 | 4 1/2"REG |
| 7 7/8 | 6 1/4 | 2 1/4 | 63 | NC46 | NC46 | 4 1/2"REG |
| 8 3/8 | 6 1/4, 6 1/2 | 2 3/4 | 63,70 | NC46 NC50 | 4 1/2"REG |
| 8 1/2 | 6 1/4, | 2 3/4 | 63,70 | NC46 NC50 | 4 1/2"REG |
| 6 1/2, |
| 8 3/4 | 7 | 2 3/4 | 63,70 | NC46 NC50 | 4 1/2"REG |
| 9 1/2 | 7, 7 3/4 | 2 3/4 | 63 | NC50 | NC50 | 6 5/8" REG |
| 9 5/8 | 7, 7 3/4 | 2 3/4 | 70 | NC50 | NC50 | 6 5/8" REG |
| 9 7/8 | 7, 7 3/4 | 2 3/4 | 70 | NC50 | NC50 | 6 5/8" REG |
| 12 1/4 | 8, 9 | 3 | 70 | NC56 6 5/8" REG | NC56 6 5/8" REG | 6 5/8" REG |
| 16 | 9, 9 1/2 | 3 | 86 1/2 | NC61 7 5/8" REG | NC61 7 5/8" REG | NC61 7 5/8" REG |
| 17 1/2 | 9, 9 1/2 | 3 | 86 1/2 | NC61 7 5/8" REG | NC61 7 5/8" REG | NC61 7 5/8" REG |
| 24 | 9, 9 1/2 | 3 | 100 | NC61 7 5/8" REG | NC61 7 5/8" REG | NC61 7 5/8" REG |
| 26 | 9, 9 1/2 | 3 | 100 | NC61 7 5/8" REG | NC61 7 5/8" REG | NC61 7 5/8" REG |
| 28 | 9, 9 1/2 | 3 | 100 | NC61 7 5/8" REG | NC61 | / |
Why use stabilizer?
-Control hole deviation,while minimizing crooked holes
-Pack the formation
-Control vibration,increasing bit&drill pipe life
-Pack wall of hole to prevent caving,minimizing particles in the hole bottom,reducing re-drill time
-Help back drill steel out of collasped holes
-Increase penetration rates&reduces repairs to rotary head gear box,resulting in greater drill availability
Why us?
-Experienced staff and excellent manufacture team
-Competitive price
-Advanced technology equipment
-Quality control in labour
Hope to be service of you,your any questions will be appreciated!
Now,let's talk details.
Iyuan Tianhe Special Steel Co., Ltd. is well-equipped with 2, 000-ton hydraulic press, 15-ton full hydraulic manipulator, etc. The annual forging capacity of Tianhe is 10, 000 tons and we have more than ten scientific and technical personnel. Our extensive active raw material inventory includes all standard carbon, stainless, nonmagnetic and alloy grade as well as a variety of industry specific and proprietary grades.
Tianhe's products include integral spiral blade and straight stabilizer, slick and spiral drill collar, etc. Upon requests, Tianhe also provides semi-finished products for manufacturing customers like stabilizer forging (4145H modified and non mag), drill collar bored bar, etc. Meanwhile, we can produce various forging products, like forged round bar, shaft and roller. Stabilizer is our hot product for good price and reliable quality, accounting for 70% of annual output.
Tianhe is ISO9001, GB/T28001 and SGS certified, and our head company is API certified. Tianhe is a quality manufacturer. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
Welcome customers from all walks of life to contact us for future business relationships and achieving mutual success!
