| Markets: |
South America,Mid East,Western Europe |
| Materail: |
AISI 4145h/Non-Magnetic Steel |
| Od: |
200mm-800mm |
| Length: |
<9m |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Application: |
Well Usage |
| Heat Treatment: |
Quenching+Tempering |
| Forging Tolerance: |
as Customer Request |
| Standard: |
API Spec 7-1 |
| Certification: |
API |

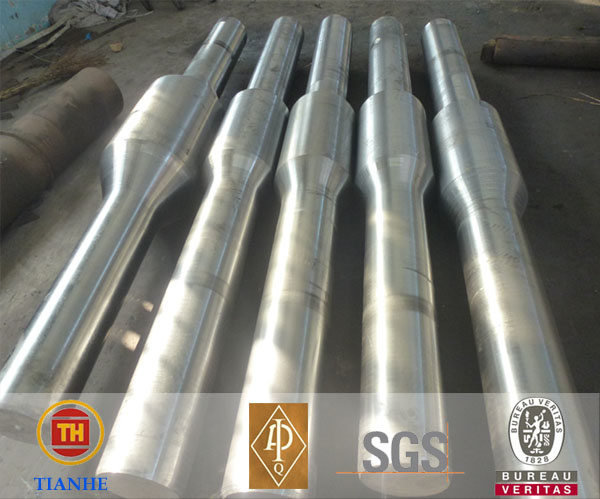

Product Description
1.Process: EAF+LF+VD+(ESR)+Forged+Heat treatment(optional)
2.Surface finising: Black,Peel,Turned,Polished
3.Delivery condition: Hot forged,heat treatment,rough machining
Mechanical Properties:
1.Tensile strength: min 964Mpa
2.Yield strength: min 758Mpa
3.Charp "V"-notched toughtness: min54J(20ºC), 30J(-20ºC)
4.Brinell hardness: 285-341HB
5.Reduction of area: min 40%
Why use stabilizer:
-Control hole deviation,while minimizing crooked holes
-Pack the Formation
-Control vibration,increasing bit&drill pipe life
-Pack the wall of hole to prevent caving,minmizing particles in the hole bottom,reducing re-drill time
-Help back drill steel out of collapsed holes
-Increase penetration rates&reduces repairs to rotary head gear box,resulting in greater dril availability
Iyuan Tianhe Special Steel Co., Ltd. is well-equipped with 2, 000-ton hydraulic press, 15-ton full hydraulic manipulator, etc. The annual forging capacity of Tianhe is 10, 000 tons and we have more than ten scientific and technical personnel. Our extensive active raw material inventory includes all standard carbon, stainless, nonmagnetic and alloy grade as well as a variety of industry specific and proprietary grades.
Tianhe's products include integral spiral blade and straight stabilizer, slick and spiral drill collar, etc. Upon requests, Tianhe also provides semi-finished products for manufacturing customers like stabilizer forging (4145H modified and non mag), drill collar bored bar, etc. Meanwhile, we can produce various forging products, like forged round bar, shaft and roller. Stabilizer is our hot product for good price and reliable quality, accounting for 70% of annual output.
Tianhe is ISO9001, GB/T28001 and SGS certified, and our head company is API certified. Tianhe is a quality manufacturer. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
Welcome customers from all walks of life to contact us for future business relationships and achieving mutual success!
