| Prod Model: |
P87641 |
| Markets: |
North America,South America,Eastern Asia |
| Size: |
All Sizes Avaliable |
| Stock: |
Yes |
| Color: |
White or Yellow |
| Finish: |
Zinc Plated |
| Type: |
Welding Flange |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Casting |
Product Description

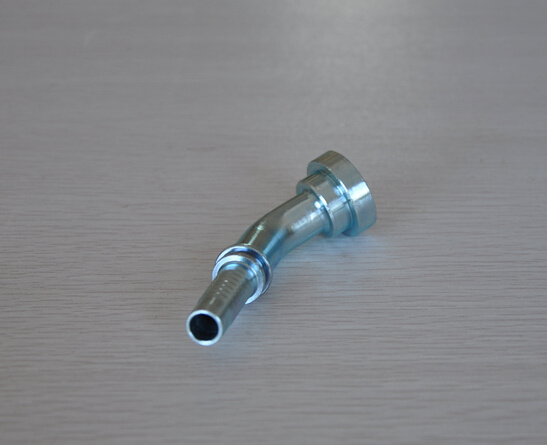

45DEGREE FLANGE 6000 PSI.
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS |
|---|
| DN | DASH | A | C | D | H | L |
|---|
| P87641-08-08 | 1/2" | 12 | 08 | 58.9 | 31.7 | 24 | 24 | 7.75 |
| P87641-08-12 | 1/2" | 20 | 12 | 74.9 | 31.7 | 24 | 27.5 | 7.75 |
| P87641-12-10 | 3/4" | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 |
| P87641-12-12 | 3/4" | 20 | 12 | 79.2 | 41.3 | 32 | 31.8 | 8.76 |
| P87641-16-16 | 1" | 25 | 16 | 90.2 | 47.6 | 38 | 34.7 | 9.53 |
| P87641-20-20 | 1.1/4" | 32 | 20 | 103.8 | 54 | 44 | 41.5 | 10.29 |
| P87641-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 |
| P87641-24-24 | 1.1/2" | 40 | 24 | 116.2 | 63.5 | 51 | 45.5 | 12.57 |
| P87641-32-24 | 2" | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 |
| P87641-32-32 | 2" | 50 | 32 | 135.7 | 79.4 | 67 | 52.7 | 12.57 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87642-XX-XX. |
1. Zinc plating: White zinc or yellow zinc are available2. Material optional: Carbon steel, stainless stell or brass3. We have ISO 9001certification
PEHEL is an ISO9001 and UKAS certified company and member of China Hydraulic and Pneumatic Seal Element Industrial Association.PEHEL is also a trustworthy unit in quality of product approved by the Technical Supervising Bureau. PEHEL, equipped with advanced CNC machines and professional technicians, can design, develop and produce hydraulic controlling components and full sets of accessories all by itself.
Established in 1990, Ningbo Yinzhou Dongming Manufacture Factory certified by ISO 9001 is one of the major manufacturers of hydraulic hose fittings, adaptors and hose assemblies in China. Equipped with CNC, instrument/meter lathes, burke and elbow machines, with some imported numerical controlled lathes, coupling and bending machines, we can certainly supply satisfying products. Until now, we have established regular business relationships with more than 50 countries separately in Europe, America, Africa, South-East Asia, and Middle East.
We at Ningbo Yinzhou Dongming Manufacture Factory will always aim at bringing you the best quality products at the most favorable prices, together with the satisfying sales service. We also always have the belief that you can enjoy your market in your country with the perfect quality goods supplied by us all the time.
We are looking forward to cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
