Prod Model: |
J23-6.3D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
63kn |
Nominal Force: |
2mm |
Slide Stroke: |
0-40mm |
Max . Die Height: |
105mm |
Die Height Adjustment: |
20mm |
Between Slide Center&Farm: |
110mm |
Bloster(Fbxlr): |
200mm*310mm |
Type: |
High-Speed Punching Machine |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Power Source: |
Electric |
Product Description
1. Structure and features

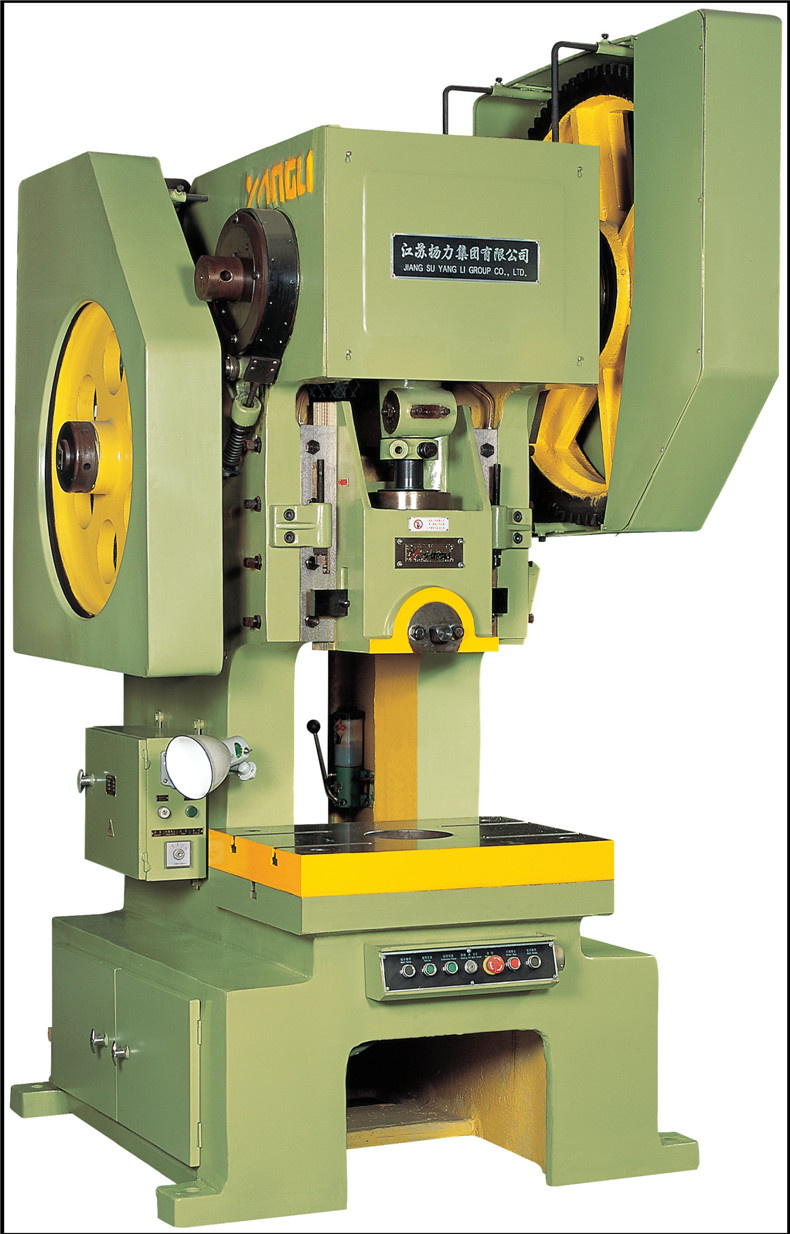

This kind of press is universally used for plate processing,which is applied to shearing, punching,blanking, bending and shallow stretch. The series has structural features as follows:
The body of the press adopts casting structure with excellent anti-vibration.
The crankshaft of is placed horizontally, flywheel is palced outside, easy to be maintained.
The press adopts single key rigidity clutch.
The sturcture of the slide is like casting case with high rigidity. Inside the slide, there is a shearing block protector, whose structure is simple and after it is overloaded. The safe discs will be ruined. Thus, it protects the press and moulds from being harmed.
Slide set height adopts handy adjustment with disply and easy to adjust.
Trianle guide with simple structure and convenient to adjust.
The press is also set with bimanual operation button and foot peadl to realize continuous, single and adjustment.
The press is developed at the base of tradtional single turnkey rigidity clutch press and it is in conformity with national compulsory safety standard.
Die cushion optional.
Electrical grease lubrication system is optional.
2. Below are all models and specifications
|
| JC23-6.3D | J23-10D | J23-16D | J23-25D | JG23-40D | JC23-63D | J23-80D |
capacity | kn | 63 | 100 | 160 | 250 | 400 | 630 | 800 |
nominal force | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 |
slide stroke | mm | 0-40 | 0-60 | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 |
spm | min-1 | 170 | 145 | 125 | 60 | 55 | 50 | 45 |
max. die height | mm | 105 | 130 | 170 | 180 | 220 | 260 | 270 |
die height adjustment | mm | 20 | 35 | 30 | 45 | 70 | 80 | 80 |
between slide center&farm | mm | 110 | 130 | 170 | 210 | 260 | 260 | 270 |
bolster(fbxlr) | mm | 200x310 | 240x360 | 320x480 | 400x600 | 480x710 | 480x710 | 520x860 |
bolster opening(dia. xfbxlr) | mm | Φ60 | Φ120x20 xΦ100 | Φ100 | Φ120 | Φ220x25 xΦ180 | Φ220x45 xΦ180 | Φ220x45 xΦ180 |
bolster thickness | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
bolster opening(dia. xfbxlr) | mm | Φ140x11 xΦ160 | Φ130x90 xΦ180 | Φ210x160 xΦ240 | Φ180x130 xΦ260 | Φ200x150 xΦ300 | Φ250x200 xΦ340 | Φ250x200 xΦ340 |
slide area(fbxlr) | mm | 120x140 | 150x170 | 180x200 | 210x250 | 270x320 | 280x320 | 280x380 |
shank hole (dia. xdpth) | mm | Φ30x55 | Φ30x55 | Φ40x60 | Φ40x70 | Φ50x70 | Φ50x80 | Φ60x75 |
max. inclined angle | ° | 30° | 30° | 25° | 25° | 25° | 25° | 20° |
between columns | mm | 150 | 180 | 220 | 260 | 300 | 350 | 410 |
motor power | kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
outline size(fbxlrxh) | mm | 780x610 x1505 | 915x700 x1690 | 1150x900 x1910 | 1325x990 x2140 | 1600x1180 x2310 | 1810x1350 x2640 | 1810x1410 x2790 |
net weight | kg | 360 | 600 | 1080 | 1900 | 3180 | 4218 | 5240 |
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.
We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.
We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
