| Prod Model: |
1800T |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Nominal Capacity: |
18000kn |
| Return Force: |
350kn |
| Max Working Force: |
25MPa |
| Slide Stroke: |
250mm |
| Mould Height: |
400mm |
| Die Height: |
150mm |
| Forging Forming Method: |
Mold Forging |
Product Description

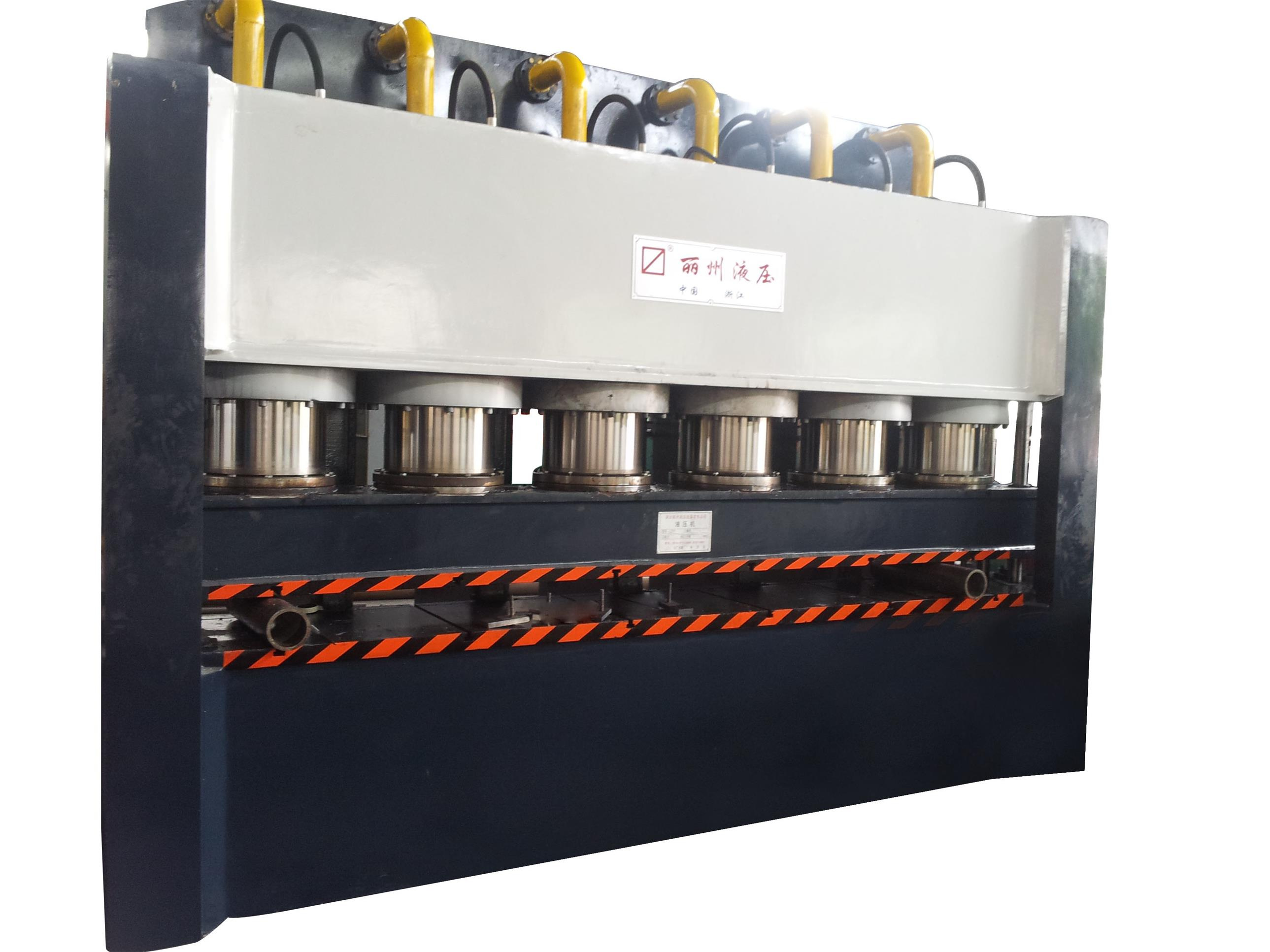

Product Name: 1800T Frame Structure Hydraulic Stamping Press
Brand Name: LIZHOU
Item
Unit
1800T
Nominal capacity
KN
18000
Return force
KN
350
Max working force
MPa
25
Slide stroke
mm
250
Distance between down surface of slide of work table
mm
400
Mould height
mm
400
Die height
mm
150
Stroke speed of slide
air-way down
mm/s
180
working
mm/s
10-12
return stroke
mm/s
120
Table size
mm
4000*500
Motor power
KW
37KW
Zhejiang Lizhou Hydraulic Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, manufacturing and sales of hydraulic press machine, and providing individualized, various and systematical solutions of metal-forming and nonmetal-forming.
Our main products include single-column, 4-column, hydraulic drawing and stamping press machine. We also specialize in designing and manufacturing various hydraulic press for steel security doors, and hydraulic cylinders, and other hundred kinds of hydraulic and metal-forming equipment. The products are widely used in the fields automobile, aerospace, nuclear power, and shipping etc. With accurate design, reasonable price, professional technology and quality, quick after-sales service, our products have been exported to more than 30 provinces and cities and even to Europe, Japan, Middle East, America, and South-East Asia countries.
If you have special design or requirements, we can customize for you with your drawing. Meanwhile forging moulds and toolings are also in available acccording to customer' S requirements. If you have any inquiry, please feel free to contact us for more details. We highly welcome our customers to visit our factory and make further discuss on our cooperation.
