| Prod Model: |
FS/FL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
BSW |
| Type: |
Threaded Connection Flange |
Product Description

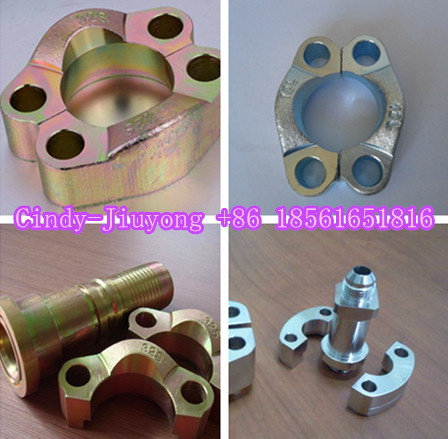

6000psi SAE Split Flange Clamps (FS) and 3000psi Split Flange Clamps(FL)&Whole Flange clamp with many kinds of hydraulic fittings
1. Name: SAE Stainless Steel Flange clamps
2. Material: Carbon Steel, Stainless Steel, Brass, alloy steel etc;
3. Surface: Cr+3 or Cr+6 Zinc Plating etc;
4. Product Type: Light Series / Heavy Series
5. Size: From 1/2" to 3" flange clamp
A split flange is a type of flange that can be easily installed on pre-existing piping. It is made up of two interlocking pieces that fit securely together using nuts and bolts or welding it into place. Because it is made of two parts, split flanges are used to reinforce weakened areas of piping, or to add an attachment in places conventional flanges cannot. Mainly used with Flange Fittings.
|
PART NO. |
Flange SIZE |
DIMENSIONS |
|
Mpa |
|
A |
B |
d |
h |
M |
N |
|
3000PSI |
|
FL-08 |
1/2" |
54 |
45.6 |
9 |
6.2 |
38.1 |
17.5 |
M8X25 |
34.5 |
|
FL-12 |
3/4" |
65 |
51.8 |
11 |
6.2 |
47.6 |
22.2 |
M10X30 |
|
FL-16 |
1" |
70 |
58.4 |
11 |
7.5 |
52.4 |
26.2 |
M10X30 |
|
FL-20 |
1.1/4" |
79 |
72.6 |
11 |
7.5 |
58.7 |
30.2 |
M10X30 |
27.6 |
|
FL-24 |
1.1/2" |
94 |
82.2 |
13.5 |
7.5 |
69.9 |
35.7 |
M12X36 |
20.7 |
|
FL-32 |
2" |
102 |
96.4 |
13.5 |
9 |
77.8 |
42.9 |
M12X35 |
|
6000PSI |
|
FS-08 |
1/2" |
56 |
47.2 |
9 |
7.2 |
40.5 |
18.2 |
M8X30 |
42 |
|
FS-12 |
3/4" |
71 |
60 |
11 |
8.2 |
50.8 |
23.8 |
M10X35 |
|
FS-16 |
1" |
81 |
69.6 |
13.5 |
9 |
57.2 |
27.8 |
M12X45 |
|
FS-20 |
1.1/4" |
95 |
77.2 |
13.5 |
9.8 |
66.6 |
31.8 |
M12X45 |
|
FS-24 |
1.1/2" |
113 |
95 |
17.5 |
12 |
79.3 |
36.5 |
M16X55 |
|
FS-32 |
2" |
133 |
113.8 |
22 |
12 |
96.8 |
44.5 |
M20X70 |
Qingdao Jiuyong Hydraulic Power Co., Ltd is a specialized SGS China factory with hydraulic hose assembly, hydraulic hose, hydraulic fittings and concrete pump production experience for many years.
Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hydraulic fittings, hose fittings, adaptor, elbow, tee, cross, ferrule, flange etc.
We have advanced imported crimping machine for hydraulic hose assembly. Providing reliable products at reasonable prices has won us customers all over 20 countries and regions, such as Russia, Brazil, Pakistan, Vietnam, Spain etc. Welcome to visit and negotiate business.
We are looking forward to established long-term cooperation relation with you, and create a better future together.
